Achieva V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Blower Motor Relay
Blower Motor Relay

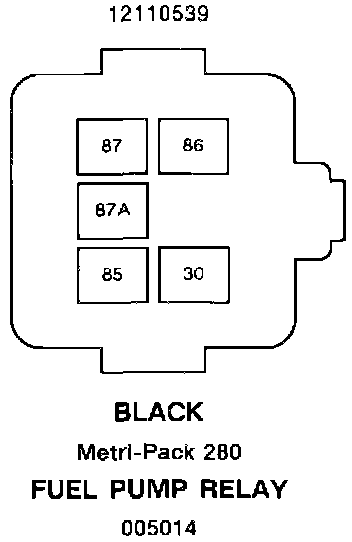

Fuel Pump Relay Connector:
