Achieva V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Turn Signal Switch
Turn Signal Switch

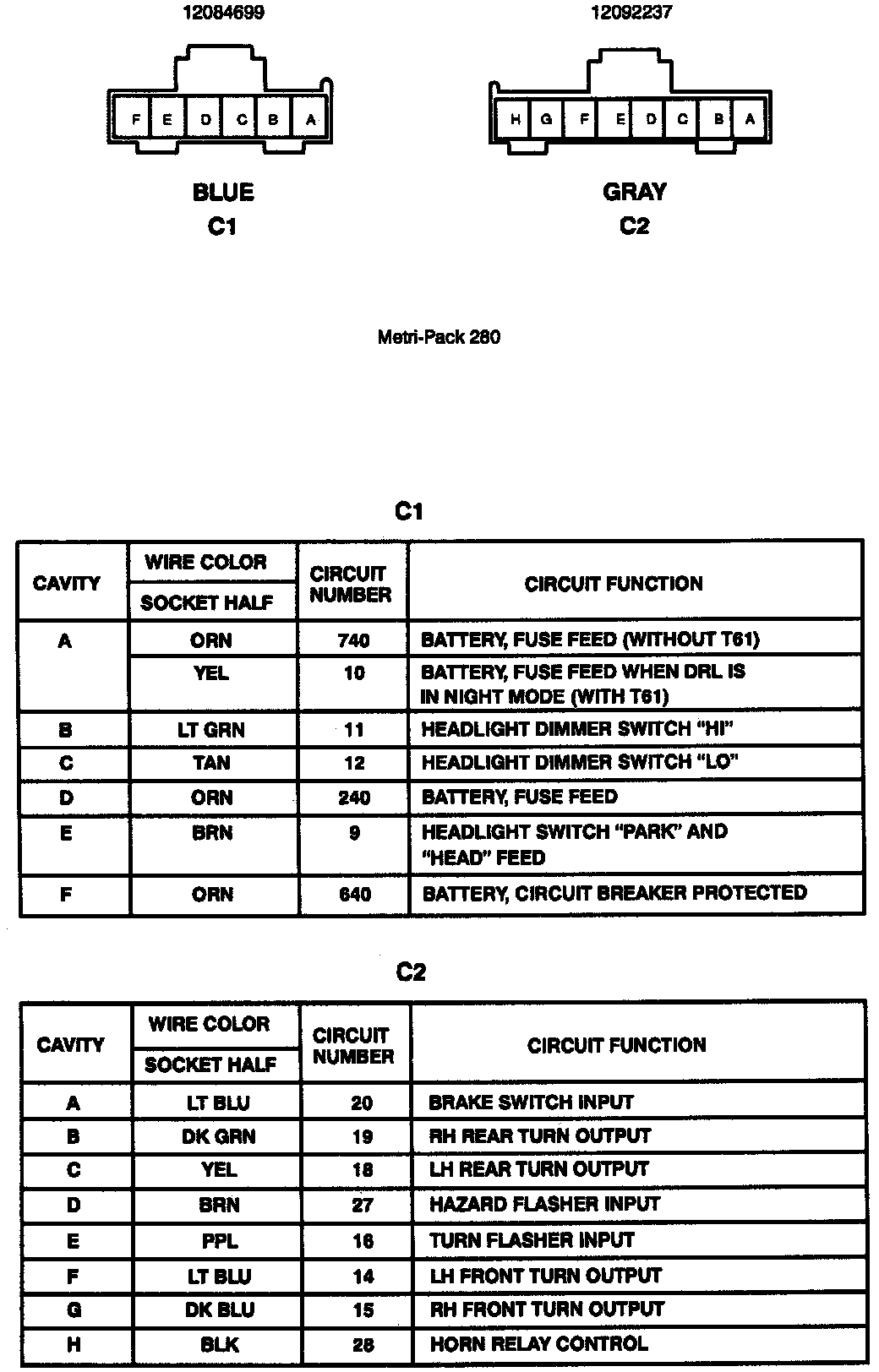

Connector View: Turn/Hazard - Headlight Switch Assembly:
