Master Switch Assembly Connector

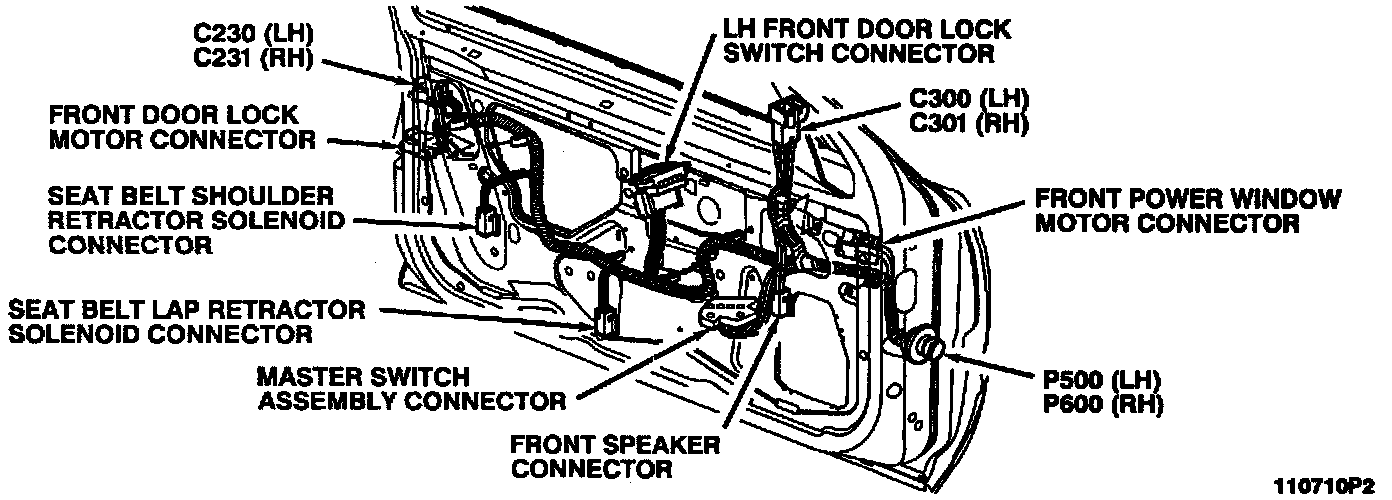

Master Switch Assembly Connector
LH Front Door (2 Door RH Similar):
