Achieva V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
Standard
Standard

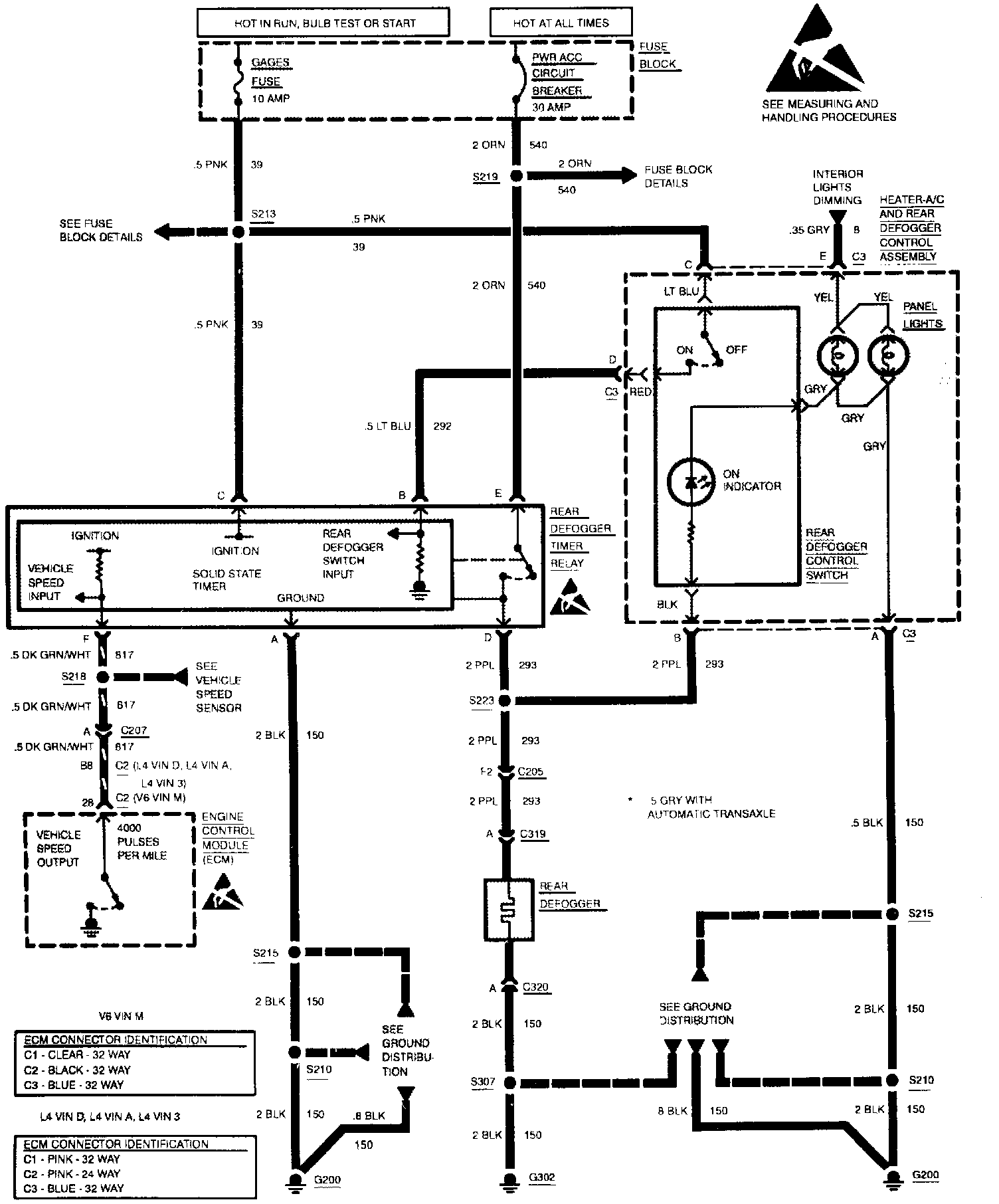

Wiring Diagram: Rear Defogger (Standard):
