Keyless Entry

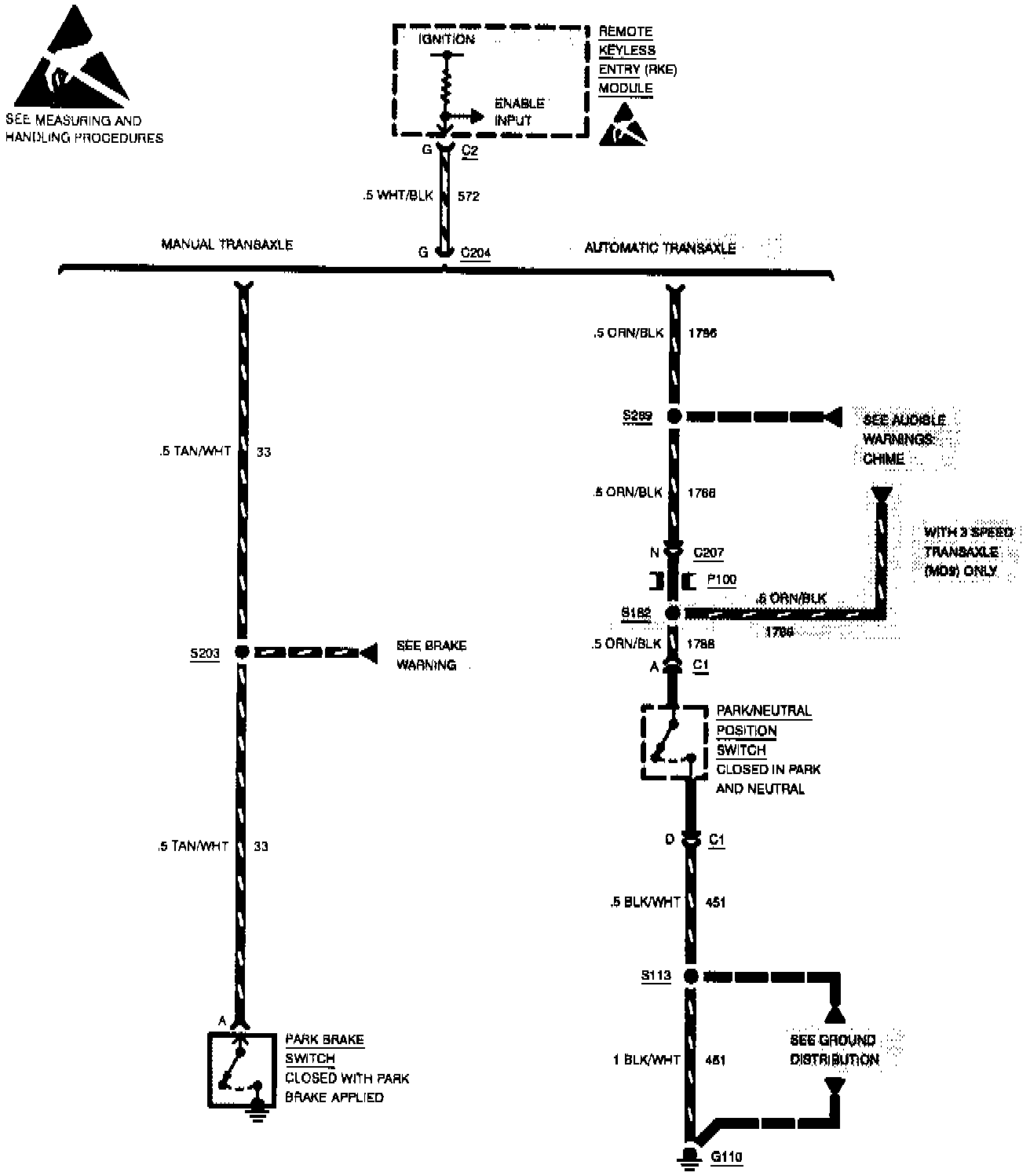

Wiring Diagram: Keyless Entry:



Wiring Diagram: Keyless Entry:



Wiring Diagram: Keyless Entry:



Wiring Diagram: Keyless Entry:
