With Daytime Running Lights

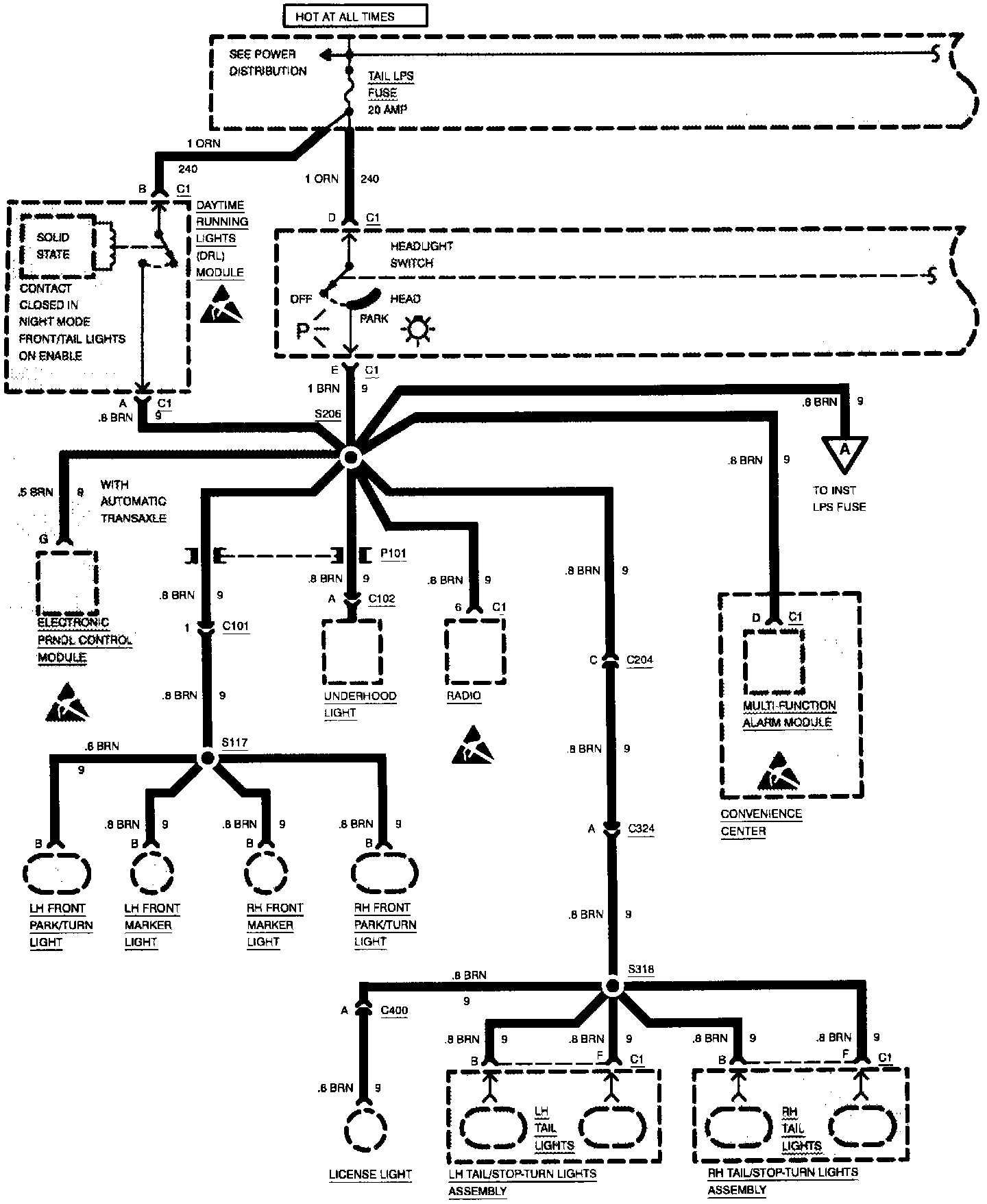

Wiring Diagram: Light Switch Details, With Daytime Running Lights:



Wiring Diagram: Light Switch Details, With Daytime Running Lights:



Wiring Diagram: Light Switch Details:
