Power Door Lock Switch

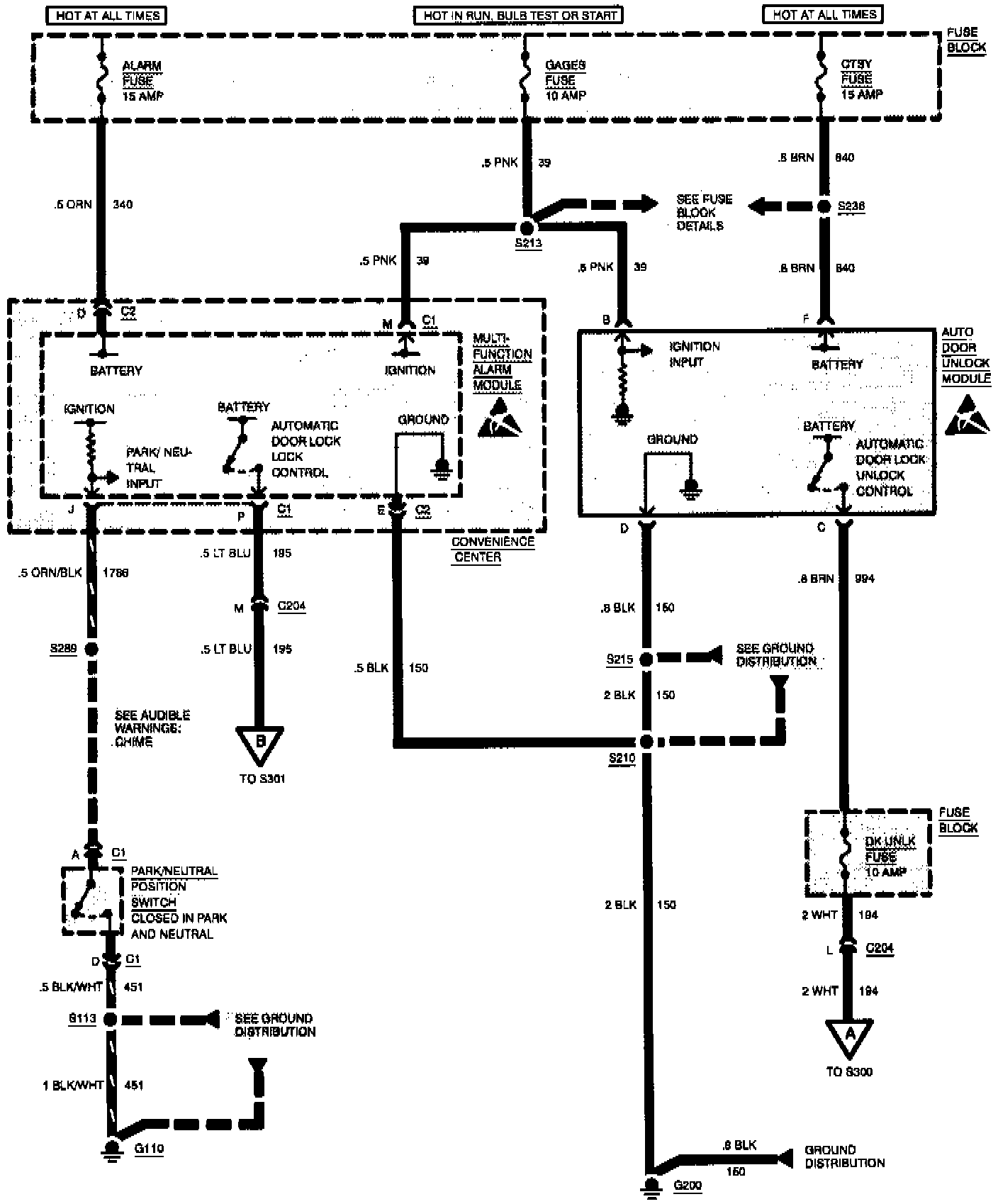

Wiring Diagram: Automatic Door Locks, Without Keyless Entry:



Wiring Diagram: Automatic Door Locks Without Keyless Entry:
