Oil Level Warning Indicator: Testing and Inspection

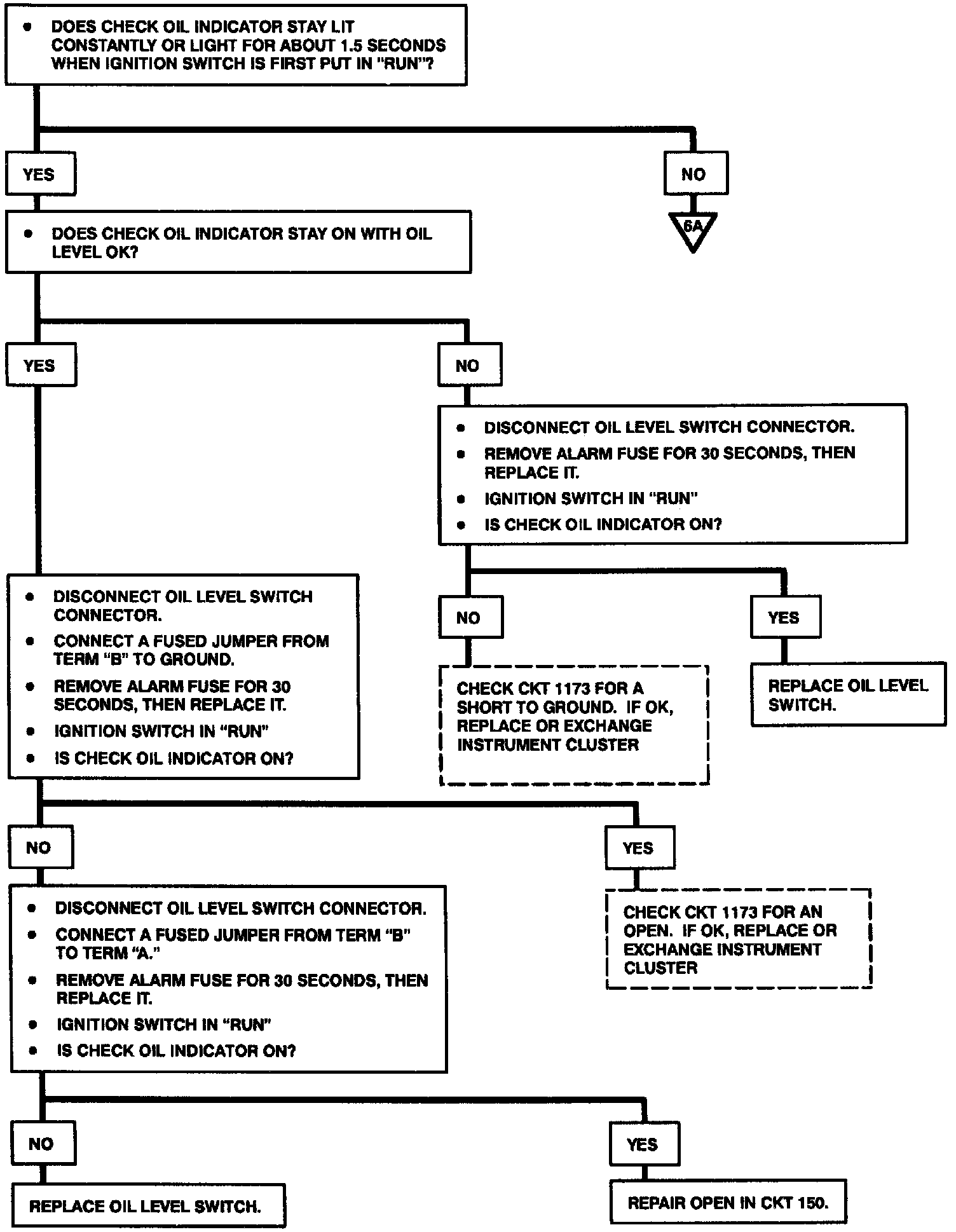

Fig. 6 Chart 6: Check Oil Indicator Does Not Operate Properly (Part 1 Of 2):




Fig. 6 Chart 6: Check Oil Indicator Does Not Operate Properly (Part 2 Of 2):
