Center Mounted Brake Lamp: Service and Repair

Center High Mount Stop Lamp:

Remove or Disconnect

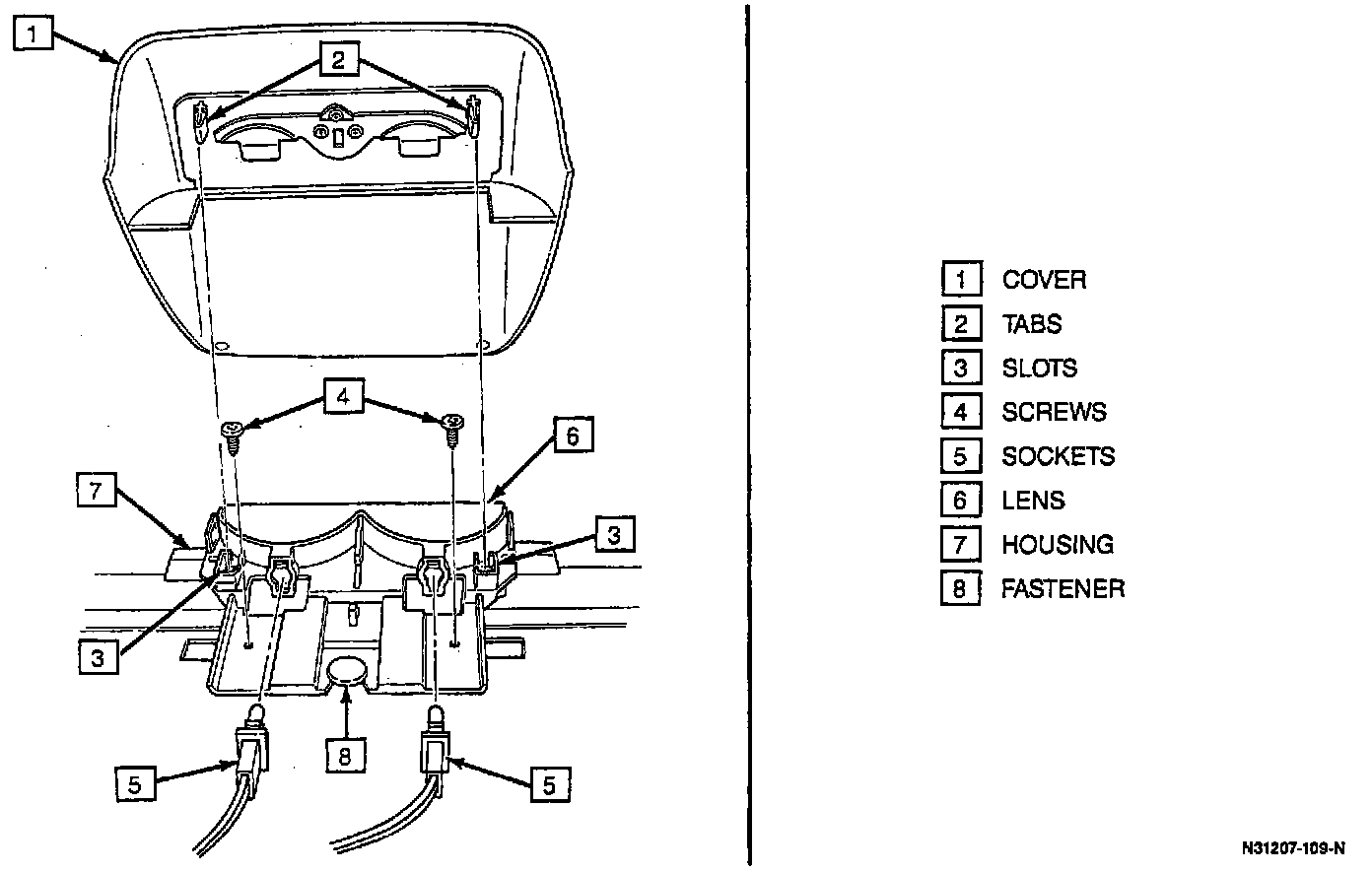

1. Cover (1) by pulling downward to disengage tabs (2) from slots (3).
2. Screws (4).
3. Sockets (5), using a thin-bladed screwdriver to release retaining tabs.
4. Bulbs.
5. Lens (6) by releasing retainers from reflector (7).

Install or Connect

1. Lens (6) to reflector (7).
2. Bulbs.
3. Sockets (5) to reflector (7).
4. Screws (4).
5. Cover (1), by aligning tabs (2) to slots (3) and applying upward pressure to seat cover (1).
