Interior Lamps Dimming

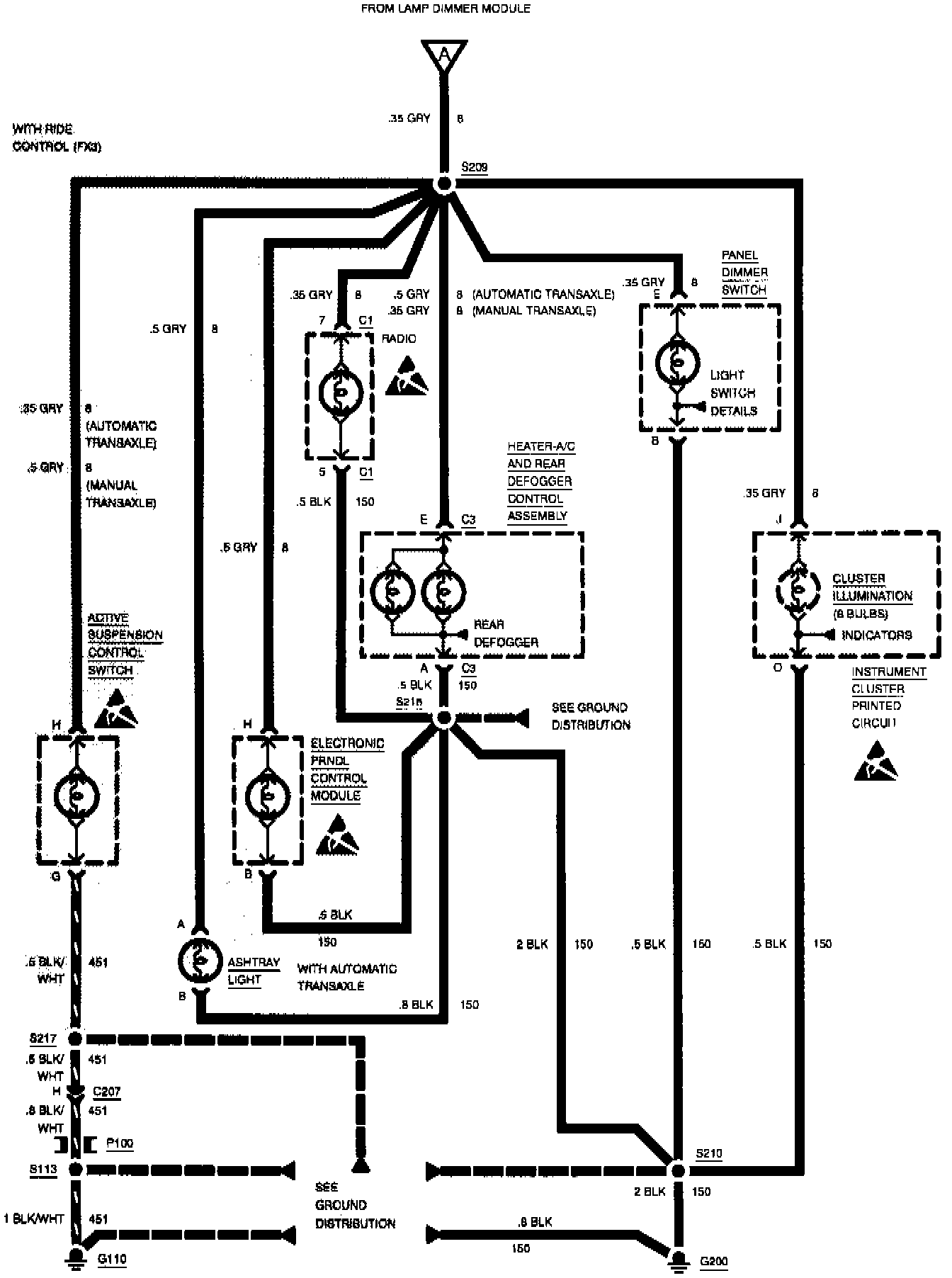

Wiring Diagram: Interior Lights Dimming:



Wiring Diagram: Interior Lights Dimming:
