Drive Belt: Description and Operation

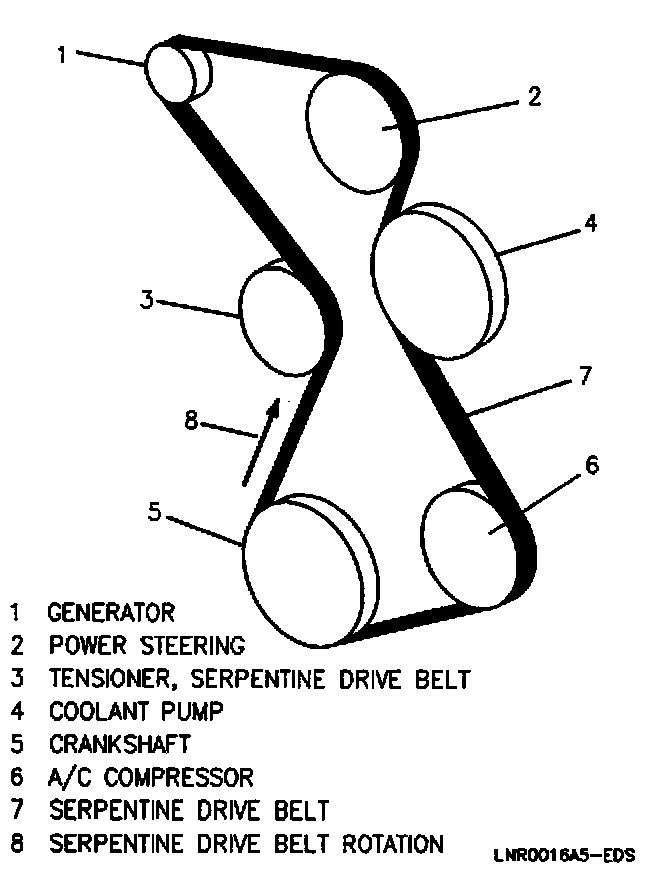

Serpentine Drive Belt:

A single serpentine belt is used to drive all engine accessories formerly driven by multiple drive belts. All belt driven accessories are rigidly mounted with belt tension maintained by a spring loaded tensioner.
