Home >> Oldsmobile >> 1994 >> Achieva V6-3100 3.1L MFI VIN M >> Repair and Diagnosis >> Power and Ground Distribution >> Electrical Accessory Panel >> Locations

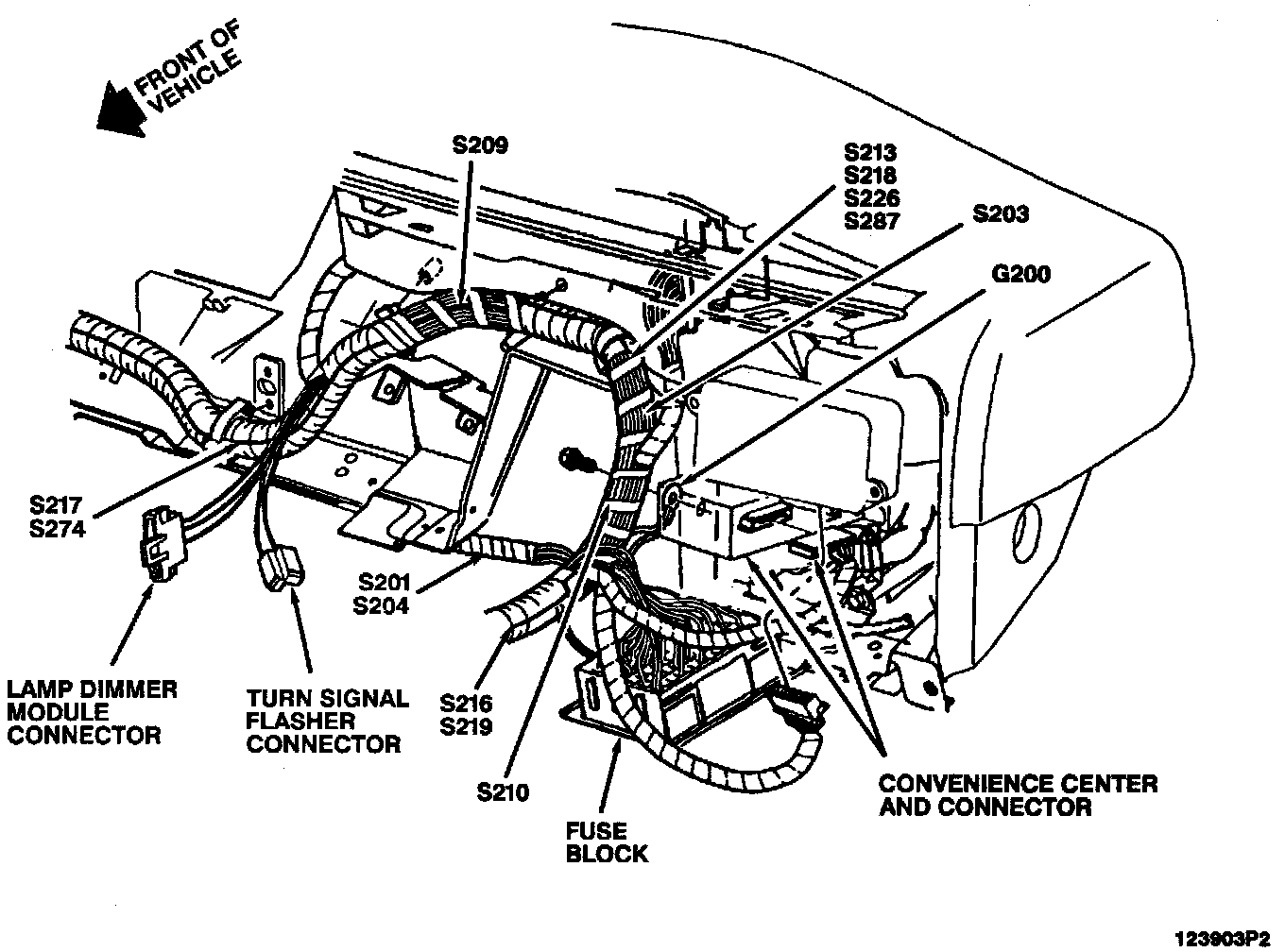

Electrical Accessory Panel: Locations

Behind LH Side OF I/P:
