Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1994
>>
Achieva V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Transmission Shift Interlock (BTSI)
Brake Transmission Shift Interlock (BTSI)

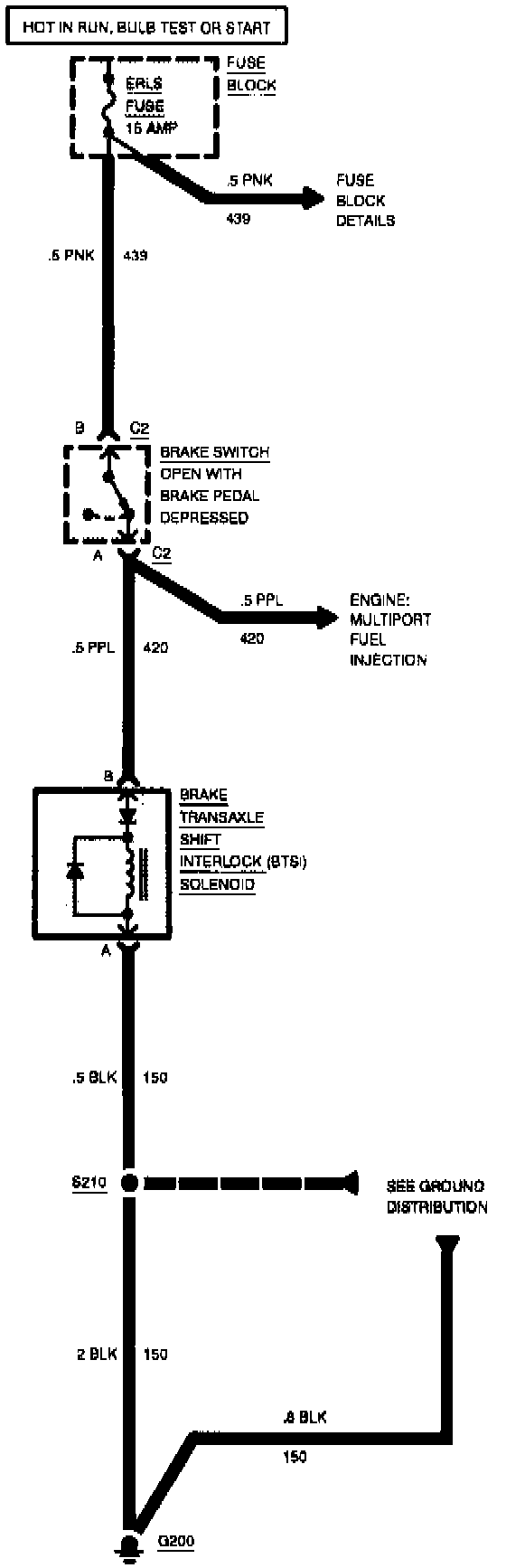

Brake Transaxle Shift Interlock (BTSI):
