Ignition Controls
Bulletin No.: 43-81-27Date: November, 1994

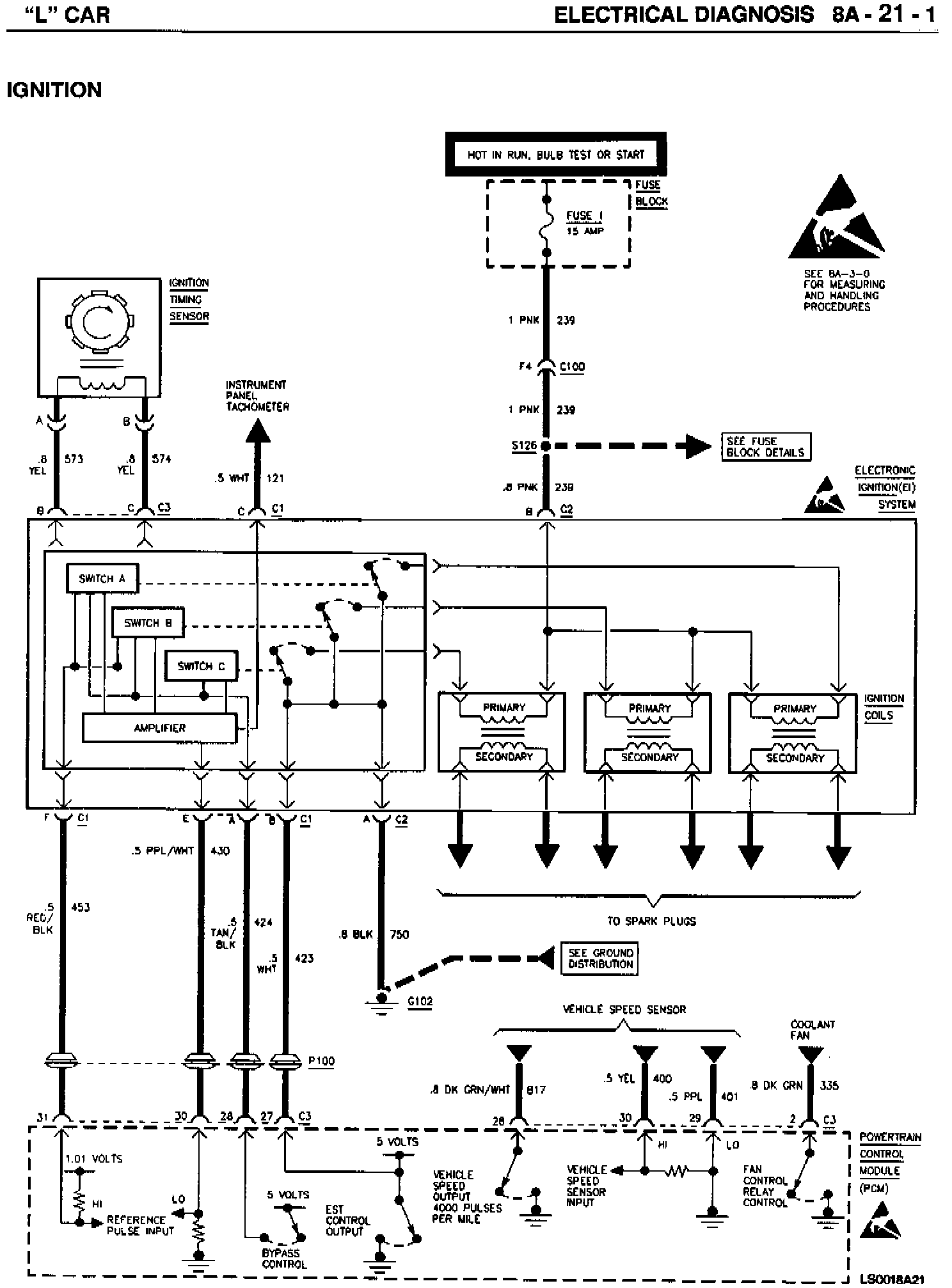

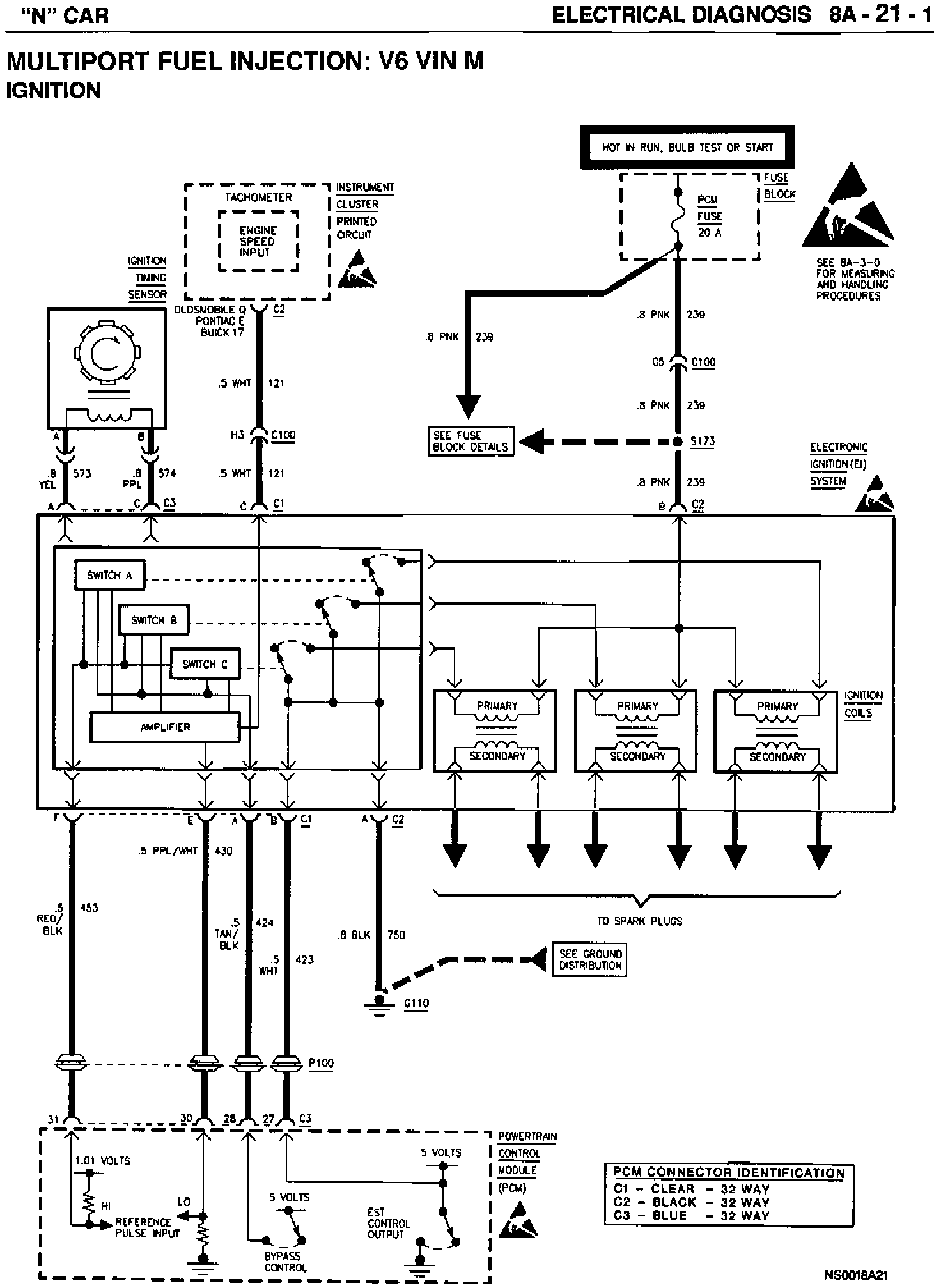

Revised Schematic for Multiport Fuel Injection: V6 (VIN M)
The schematic has been updated with the ignition timing sensor (crankshaft position sensor - 3x).
Date: November, 1994
Revised Schematic for Multiport Fuel Injection: V6 (VIN M)
The schematic has been updated with the ignition timing sensor (crankshaft position sensor - 3x).
