Oldsmobile
>>
1994
>>
Achieva V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

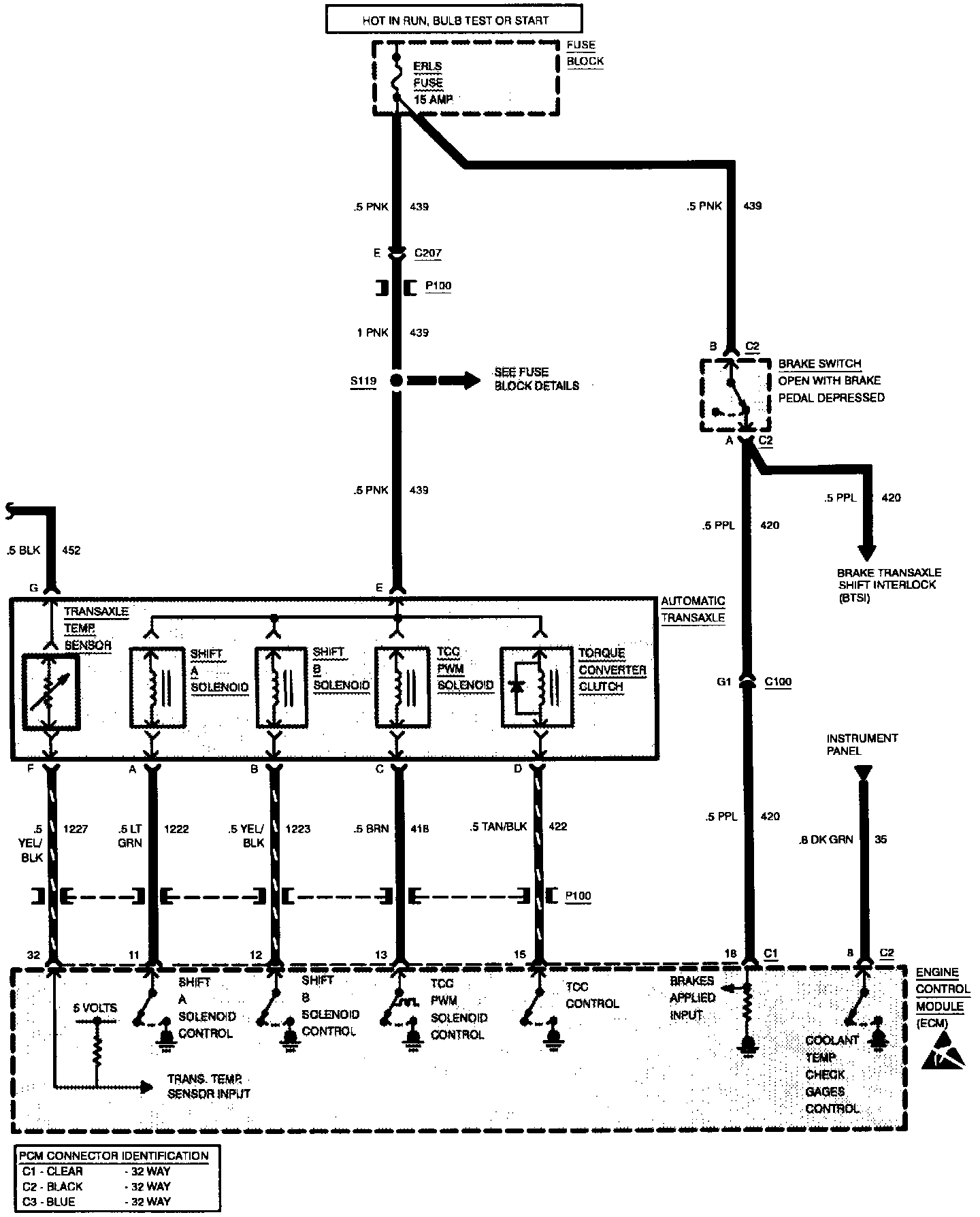

Torque Converter Clutch & Upshift Indicator
Torque Converter Clutch & Upshift Indicator
Torque Converter Clutch/Indicator Controls:
