Fuel Tank: Description and Operation

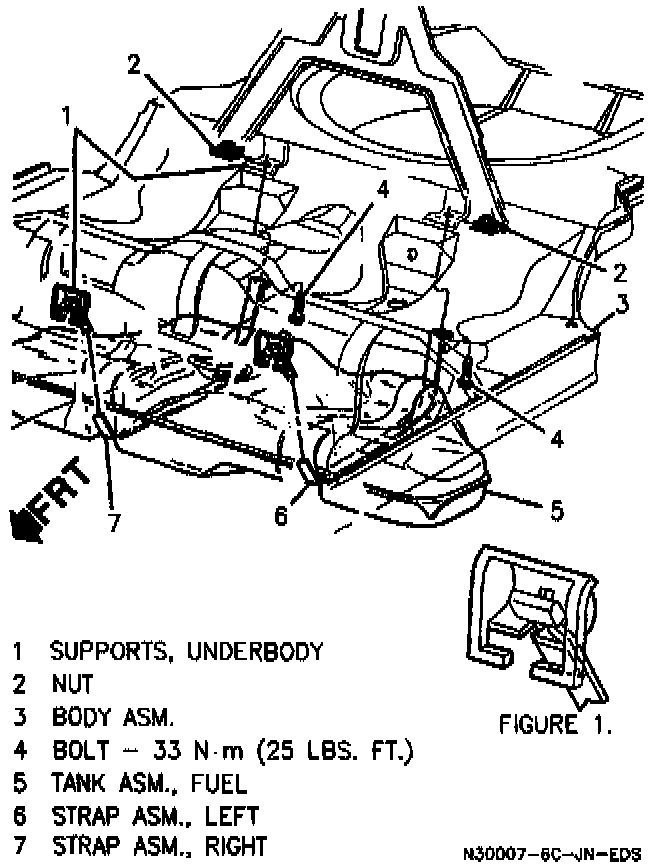

Fuel Tank Mounting:

Purpose
The fuel tank is used to store fuel for the vehicle. The tank is located in the rear of the vehicle and is held in place by two metal straps that are attached to the frame. To prevent refueling with leaded fuel, the fuel filler neck has a built-in restrictor and deflector.

Construction
The fuel tank is made of steel and is coated internally with a special corrosion inhibitor Due to the internal coating of the fuel tank, it is not repairable.
