Rear Suspension

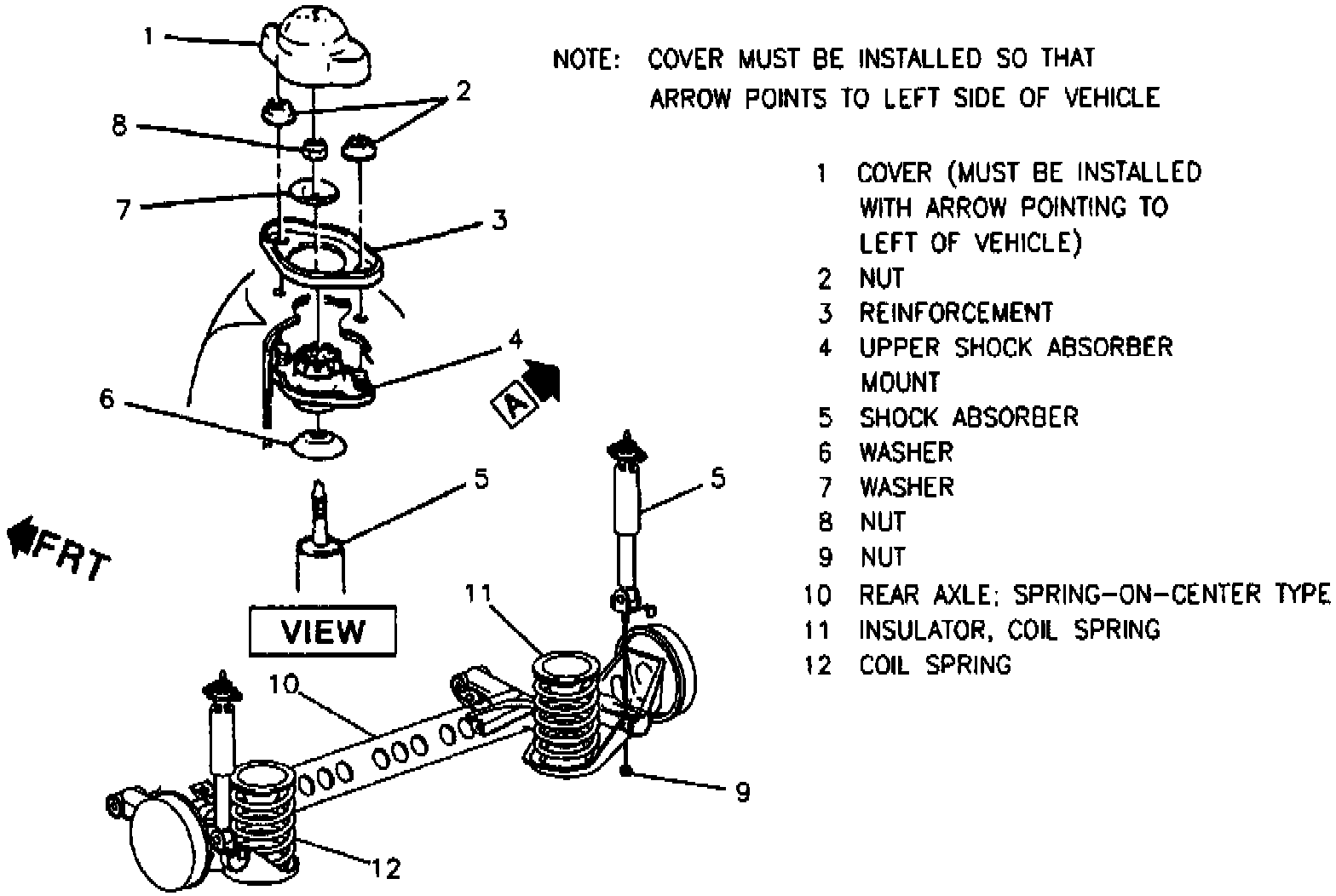

Fig. 1 Rear Suspension:

Fig. 2 Rear Suspension:

DESCRIPTION
The rear suspension, Fig.1 and 2, are semi-independent type suspensions consisting of an axle assembly with trailing arms and cross beam, coil springs and shock absorbers. A stabilizer bar is available and is attached to the inside of the axle beam and to the lower end of the control arms. A single unit hub and bearing assembly is bolted to each end of the axle assembly. The hub and bearing assembly is a sealed, non-serviceable unit and must be replaced as an assembly.
