Antilock Brakes - Updated DTC 23 Diagnostic Chart

Group Ref.: Brakes

Bulletin No.: 415007

Date: April, 1994

SUBJECT:
SECTION 5E1 - ANTILOCK BRAKE SYSTEM DIAGNOSIS - REVISED DIAGNOSTIC TROUBLE CODE CHART DTC 23

MODELS:
1994 BUICK SKYLARK
1994 OLDSMOBILE ACHIEVA
1994 PONTIAC GRAND AM

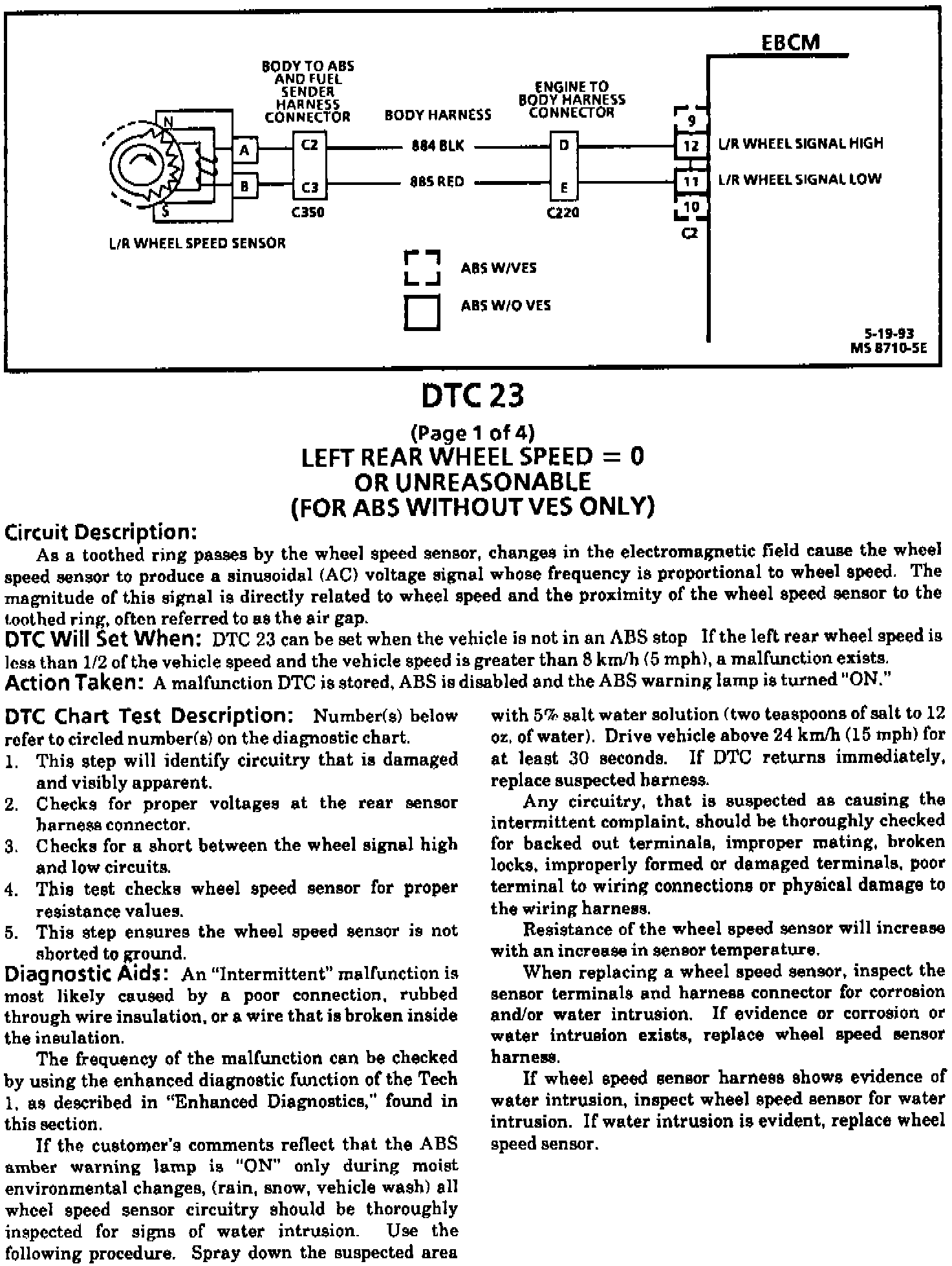

This bulletin updates the 1994 "N" Service Manual pages 5E1-68 and 5E1-69. Please use the Chart for DTC 23 when performing ABS diagnostics.
