Antilock Brakes - Updated DTC 24 Diagnostic Chart

Group Ref.: Brakes

Bulletin No.: 415006

Date: April, 1994

SERVICE MANUAL UPDATE

SUBJECT:
SECTION 5E1 - ANTILOCK BRAKE SYSTEM DIAGNOSIS - REVISED DIAGNOSTIC TROUBLE CODE CHART, DTC 24

MODELS:
1994 BUICK SKYLARK
1994 CHEVROLET BERETTA, CAVALIER, CORSICA
1994 OLDSMOBILE ACHIEVA
1994 PONTIAC GRAND AM, SUNBIRD

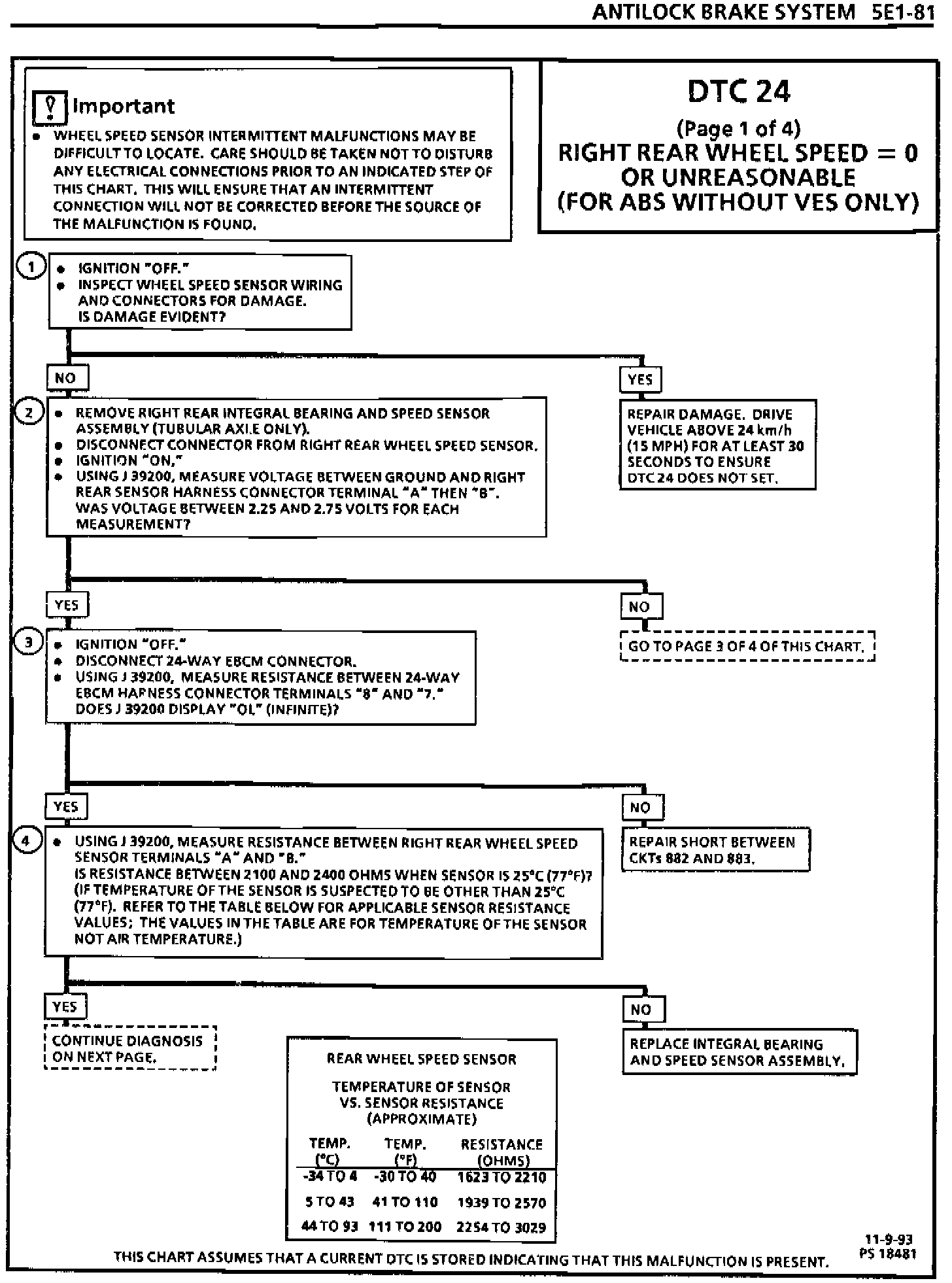

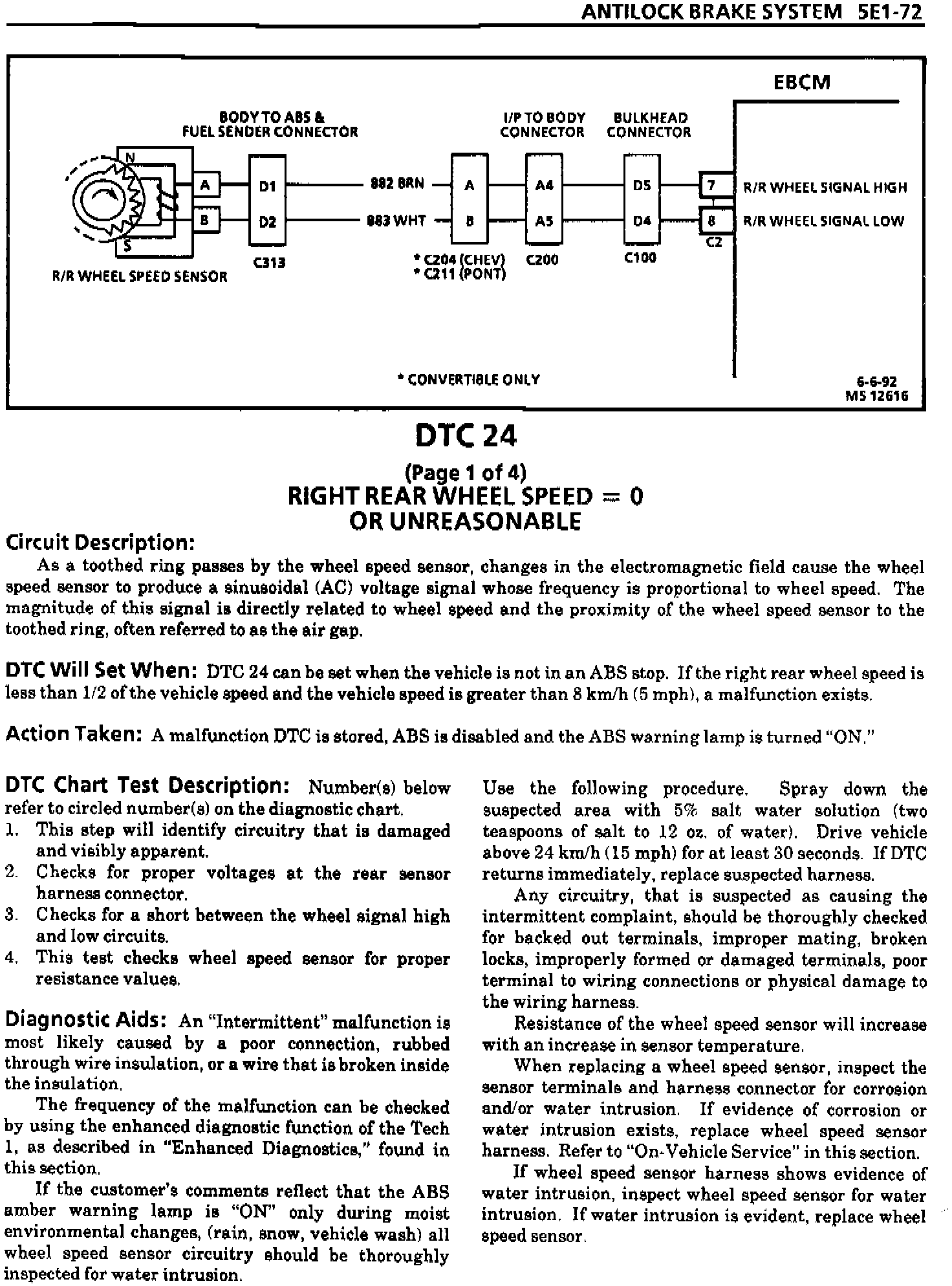

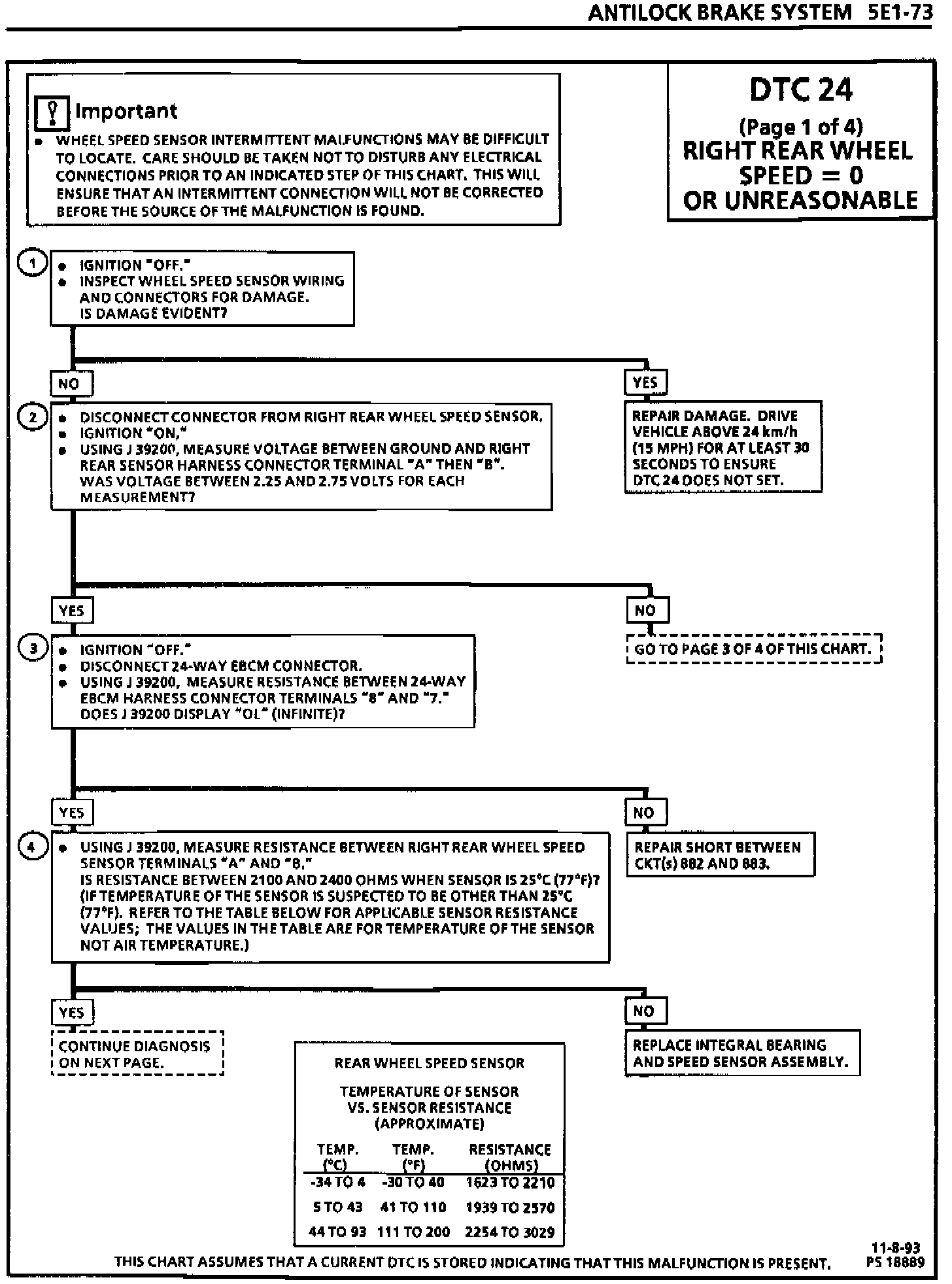

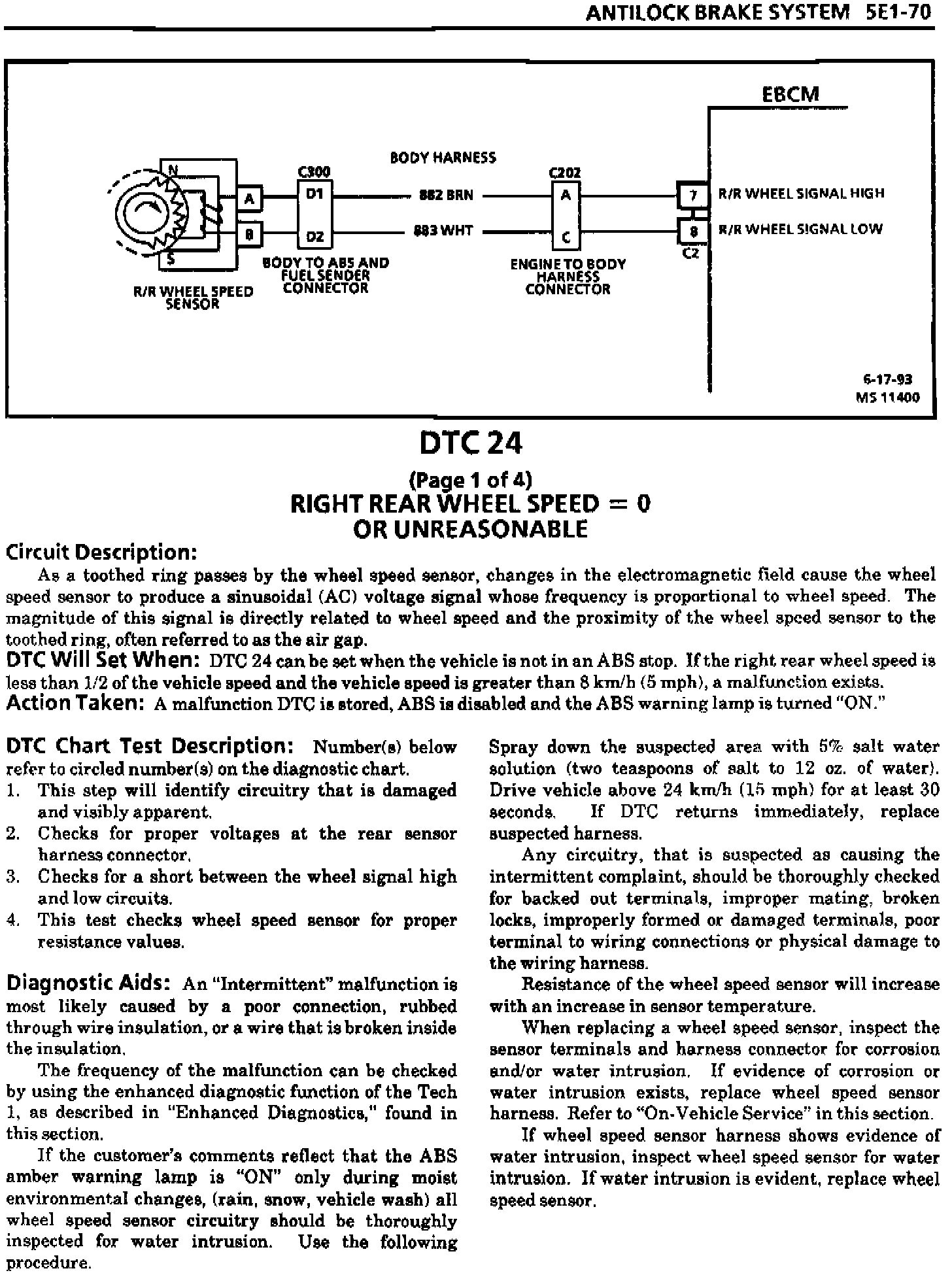

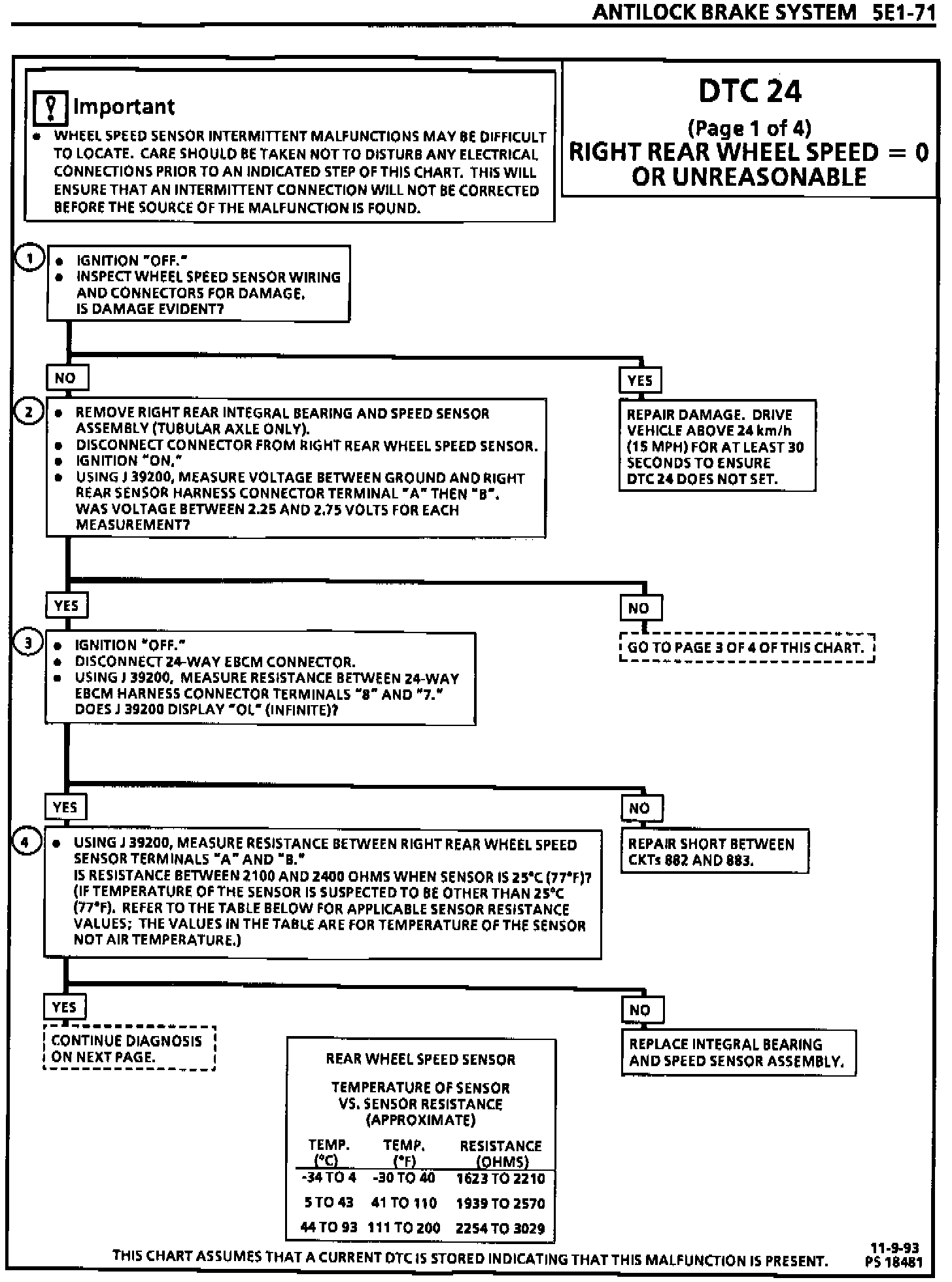

This bulletin updates the pages of the 1994 Service Manuals: 5E1-72, 73 in the "J" Manual, 5E1-70, 71 in the "L" Manual, and 5E1-80, 81 in the "N" Manual. Please use the charts when performing ABS diagnostics for DTC 24.
