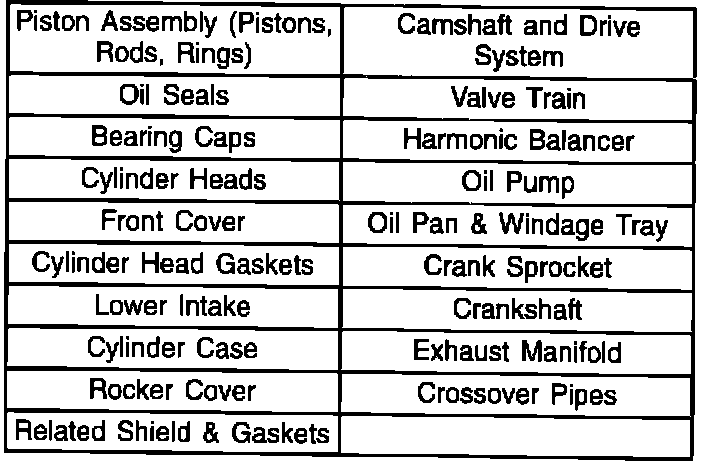

The Components Are Not to Be Removed

THESE COMPONENTS ARE NOT TO BE REMOVED:

A. ENGINE COMPONENTS WHICH MAY BE SERVICED (without exchange):

NOTE:
Any deficient engine component on the following list should be repaired according to service procedures in the applicable vehicle service manual.

1. Brackets: Engine Lift and Brackets and accelerator cable bracket.

2. Water Pump: Water pump and related gaskets, water outlet, thermostat, water inlet and gasket, coolant bypass pipe and hose.

3. Vacuum Tubes: PCV hoses and related components. Transmission Modulator Pipe.

4. Ignition: Spark plugs, left and right hand wiring harnesses, ignition coil pack.

5. Electrical Components: Knock sensor, coolant level sensor, coolant temperature sensor, crank timing sensor, MAP sensor, oil pressure sensor, oxygen sensor, TPS sensor, IAC valve, and Cam Timing Sensor.

6. Upper Intake: Plenum and related seals, fuel rail and injectors, fuel lines, fuel pressure regulator and hose, EGR tube, EGR valve, throttle body and related mounting parts.

7. Injector Wiring Harness.

8. Block Heater (if applicable).

9. Flywheel Assembly.

10. Oil Dipstick and Tube, Oil Cap, Oil Filter and Oil Cooler.

11. Complete Accessory Drive and Supporting Brackets, to include Starter, Generator, A/C Compressor, Power Steering Pump, and All Attaching Parts.

12. Starter Motor.
