SIR System - Revised DTC 24 Diagnostic Chart - SIR

File In Section: 9 - Accessories

Bulletin No.: 53-90-10

Date: December, 1995

SERVICE MANUAL UPDATE

Subject:
Section 9J - Supplemental Inflatable Restraint - Revised DTC 24 (Page 2 of 2) Diagnostic Chart

Models:
1994-95 Buick Skylark
1994-96 Chevrolet Beretta, Corsica
1994-95 Oldsmobile Achieva
1994-95 Pontiac Grand Am

This bulletin revises the "DTC 24, Driver Initiator Circuit Voltage Low" diagnostic chart found in Section 9J of the Service Manual on the pages listed below. Note the addition of step 5A in the chart.

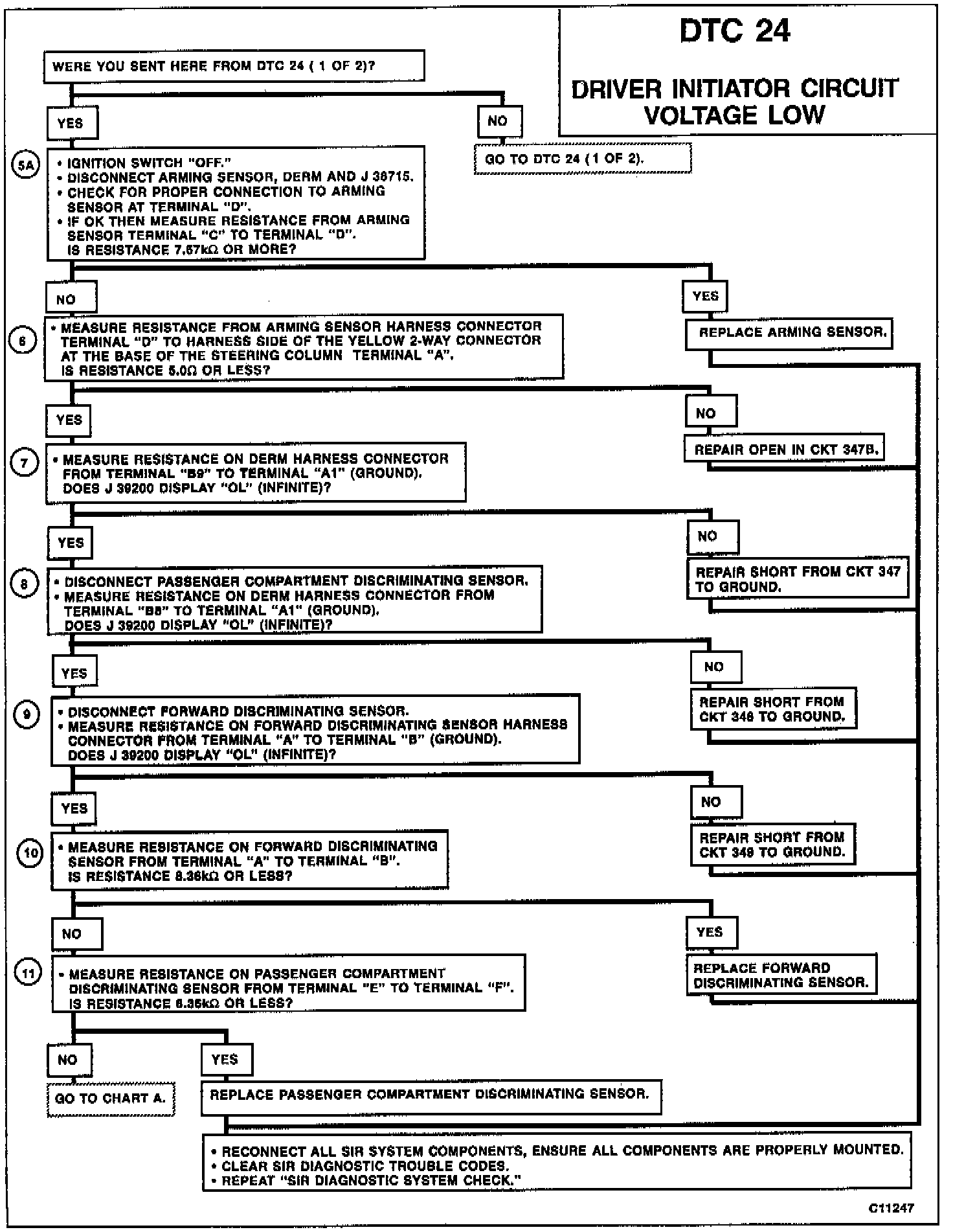

1994 L-Car - Page 9J-35 (Attachment # 1)

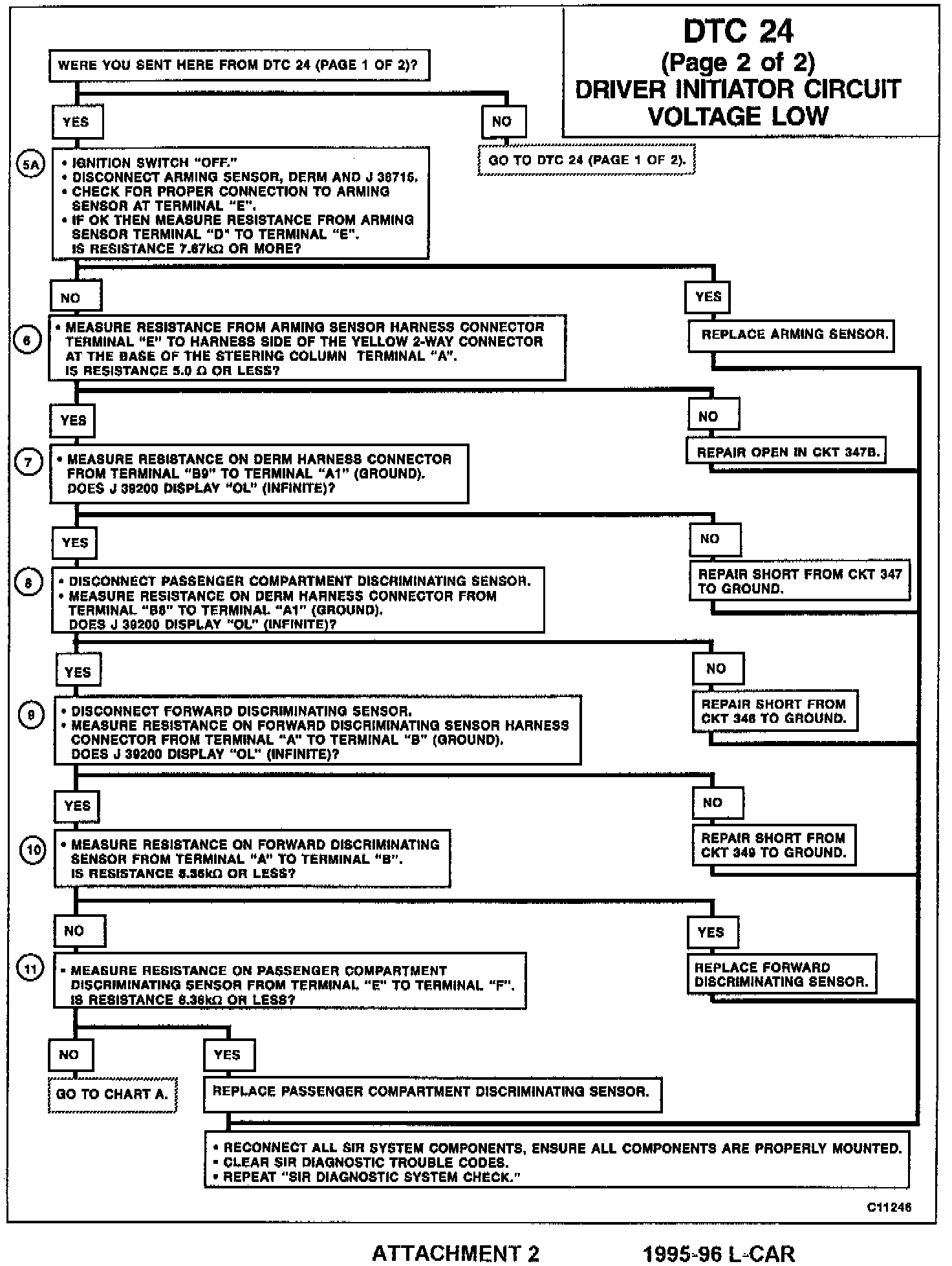

1995-96 L-Car - Page 9J-33 (Attachment # 2)





1994 N-Car - Page 9J-35 (Attachment # 3)





1995 N-Car - Page 9J-33 (Attachment # 4)

Please update the pages in the appropriate Service Manuals with these charts.
