Home
>>
Oldsmobile
>>
1994
>>
Achieva V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

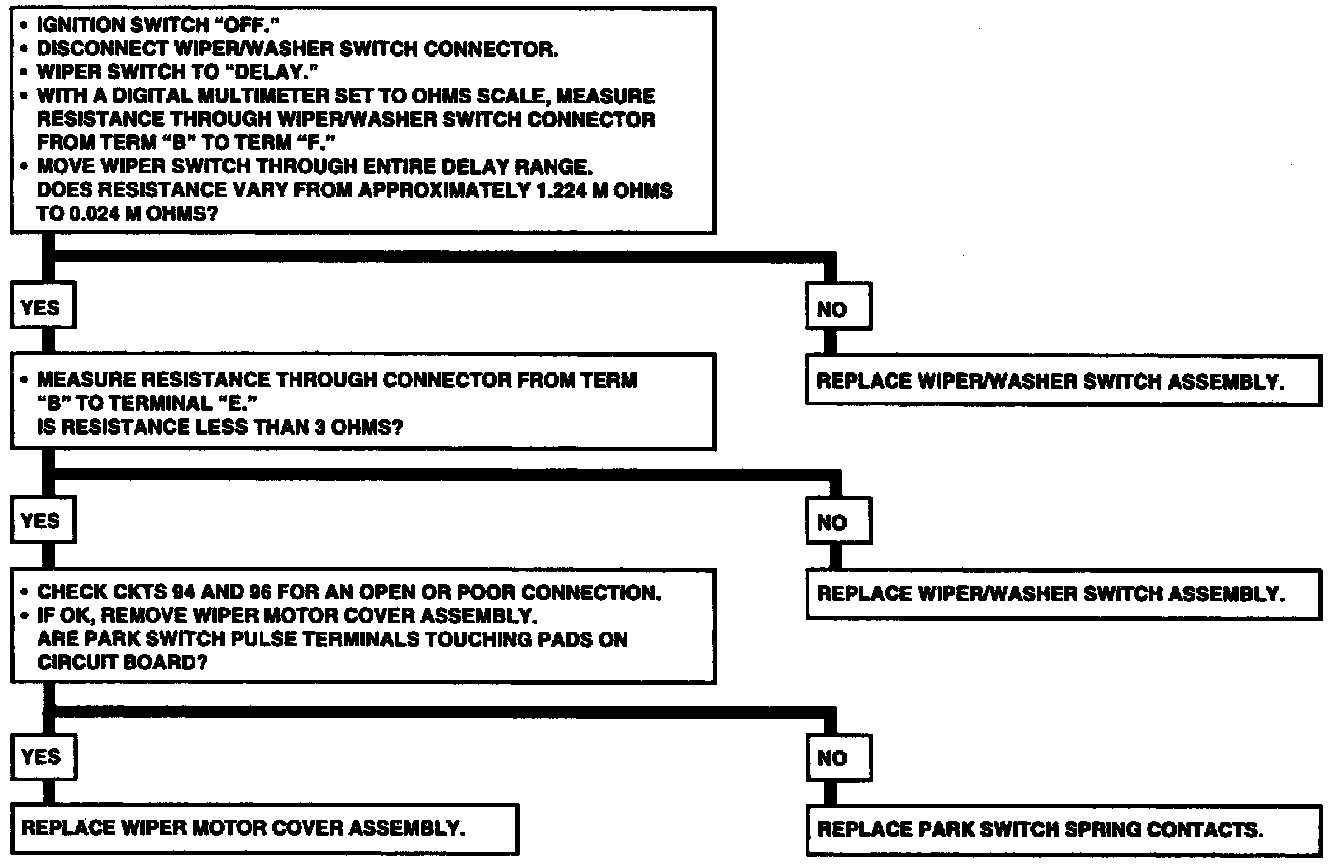

Fig. 31 Test 9: Pulse Delay Operates Incorrectly Or Not At All:
