Engine Coolant Temperature Gage

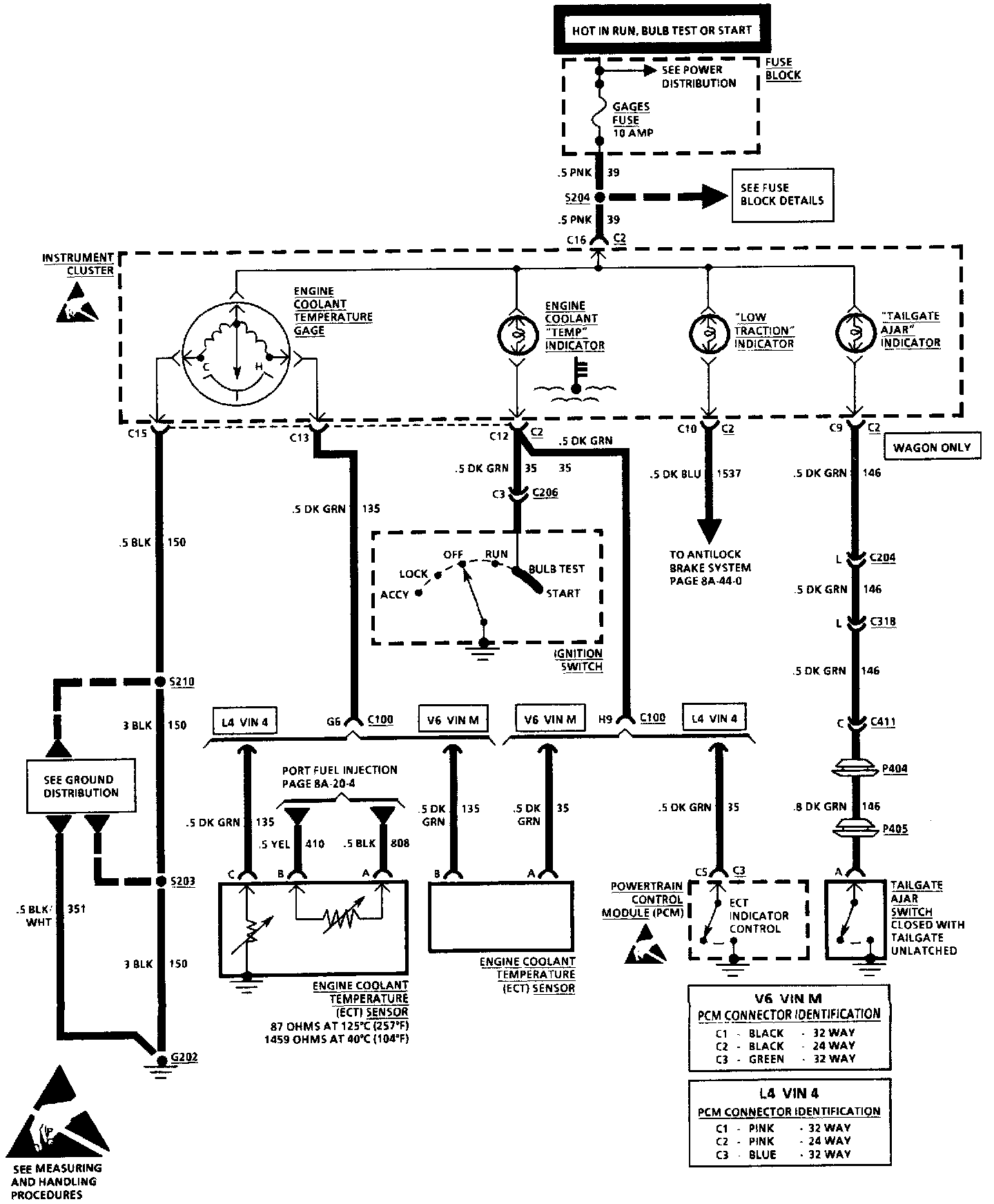

Gages Cluster, U2E: Indicators And Engine Coolant Temperature Gage:



Gages Cluster, U2E: Indicators Fuel Gage And Illumination:

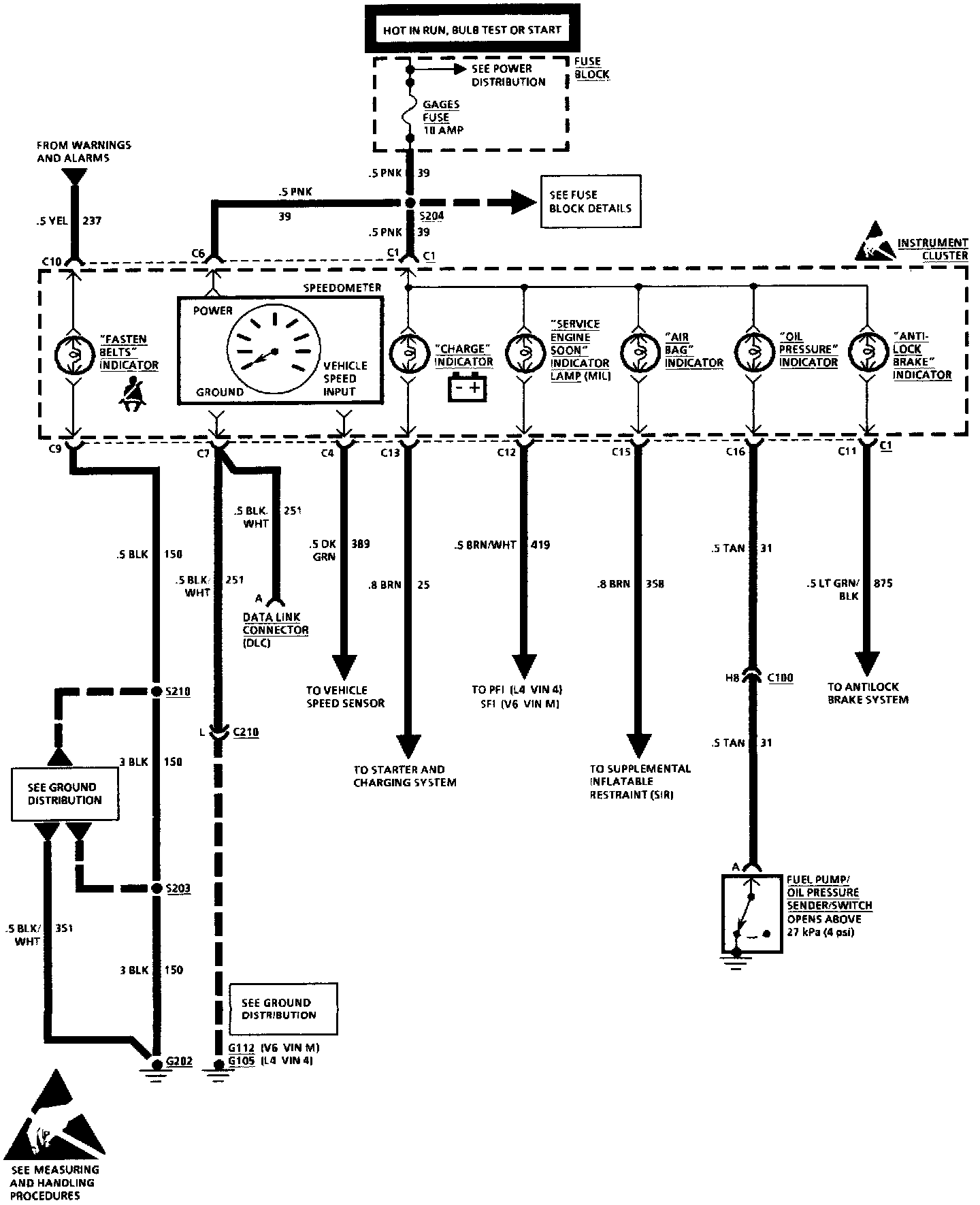

Gages Cluster, U2E: Indicators and Speedometer:
