Home >> Oldsmobile >> 1994 >> Cutlass Ciera Cruiser L4-2.2L VIN 4 >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Fuel Gage, Voltmeter and Speedometer

Fuel Gage, Voltmeter and Speedometer

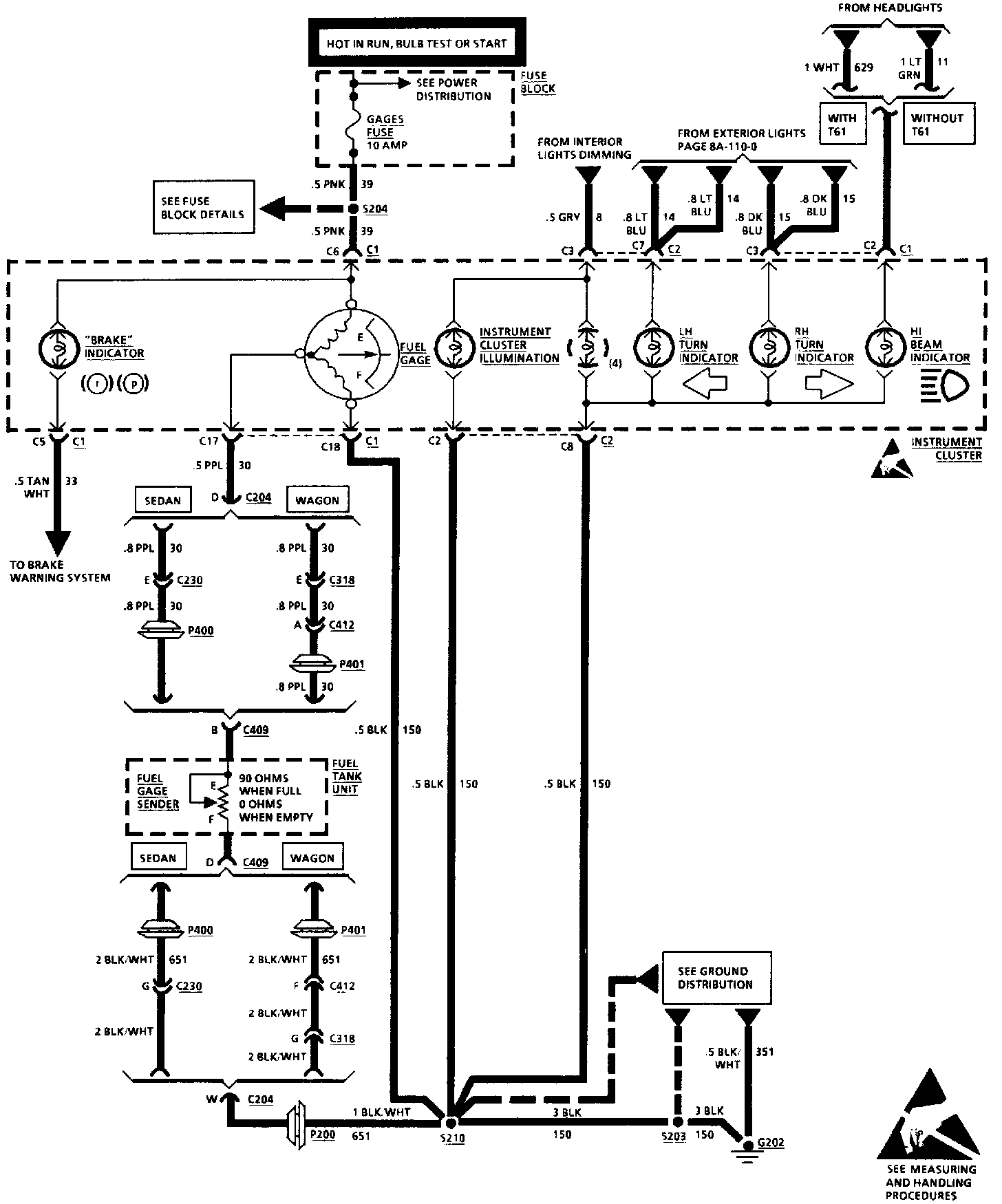

Gages Cluster, U2E: Indicators Fuel Gage And Illumination:
