Home >> Oldsmobile >> 1994 >> Cutlass Ciera Cruiser L4-2.2L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

Fuse Block: Application and ID

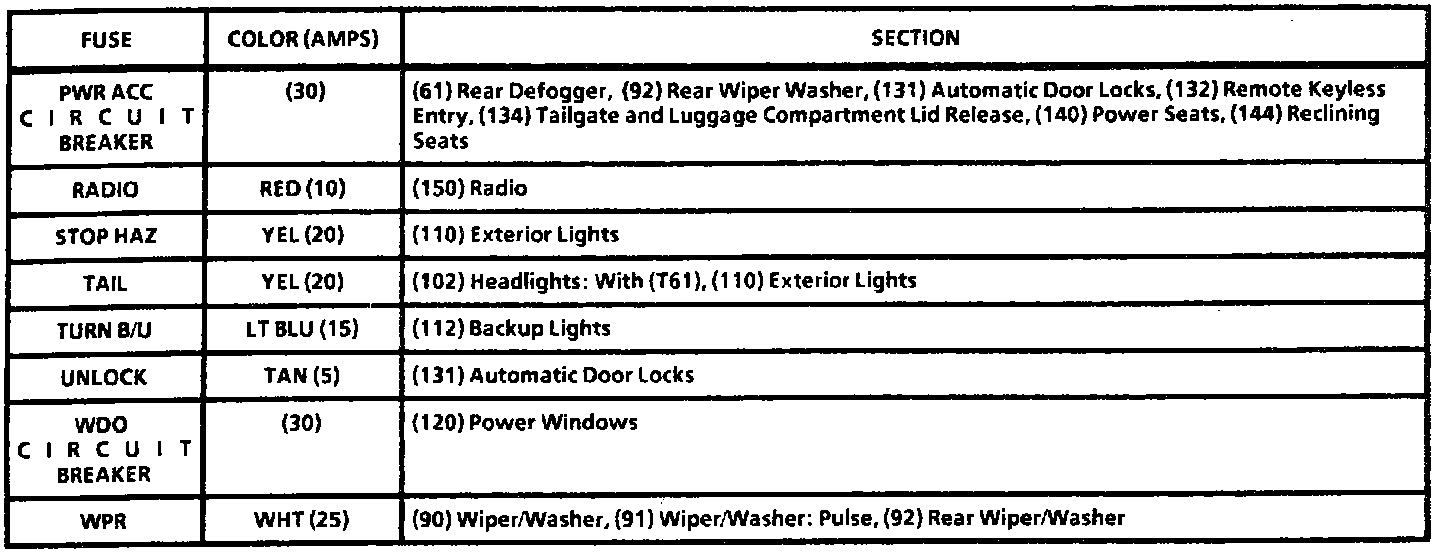

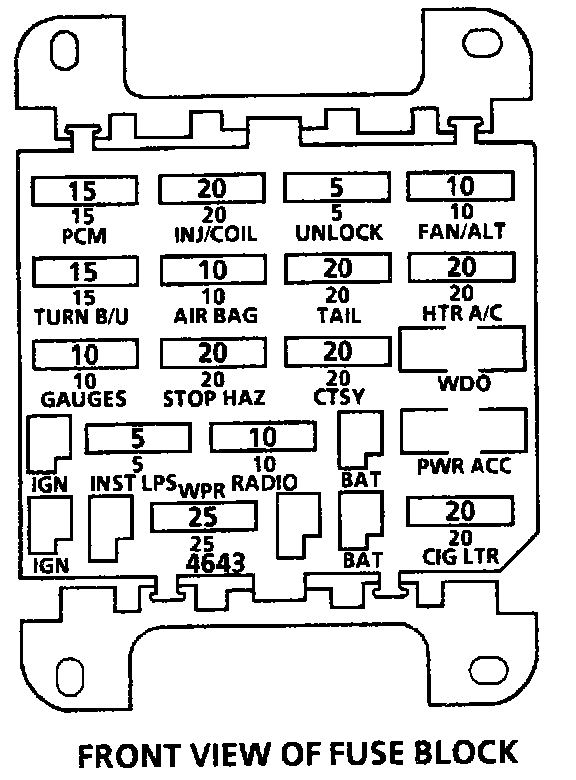

Fuse Block Details (1 Of 2):




Fuse Block Details (2 Of 2):
