Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1994
>>
Cutlass Ciera Cruiser L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Power, Grounds & Fuel Control
Power, Grounds & Fuel Control

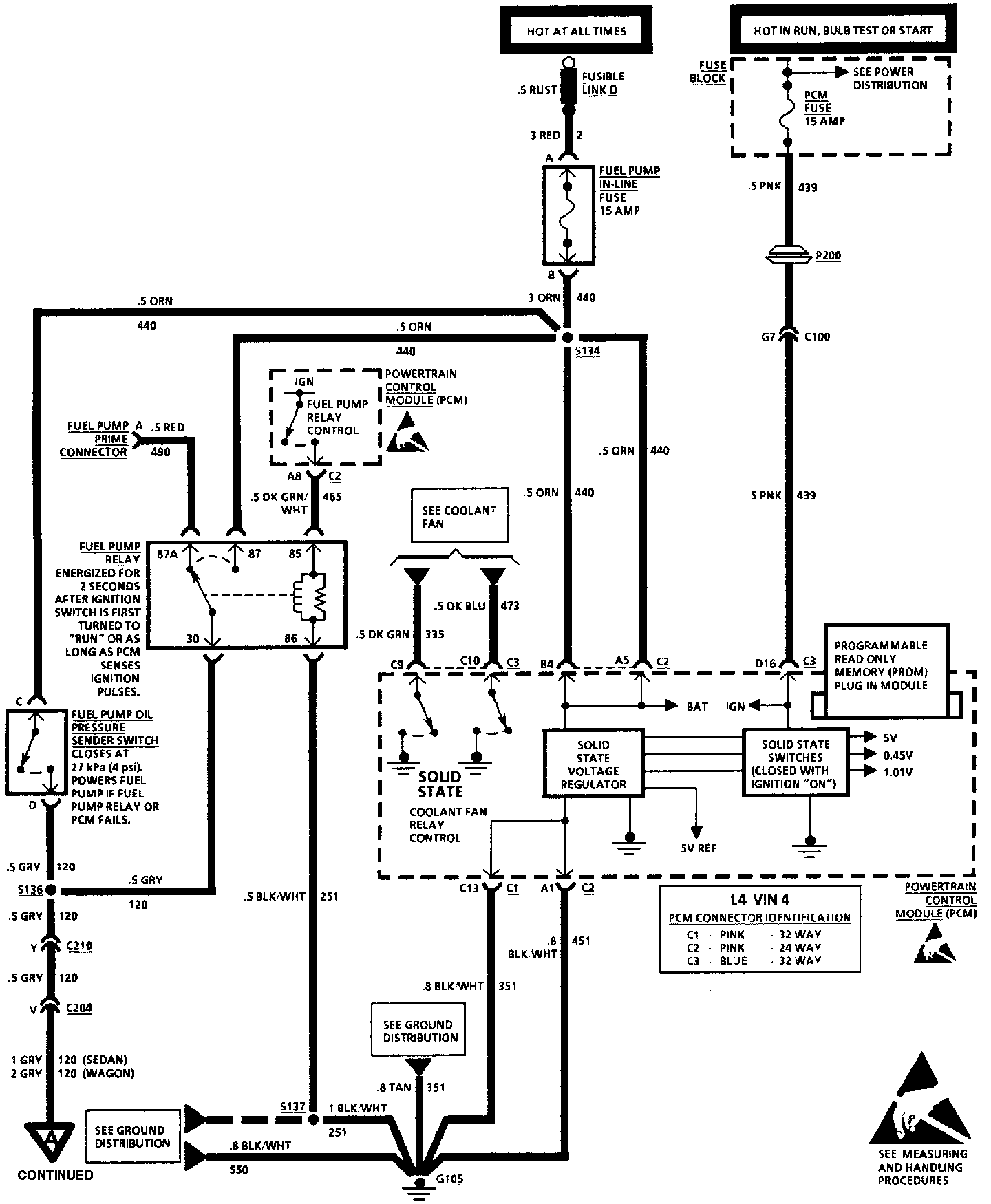

Power, Grounds And Fuel Control (Part 1 Of 2):

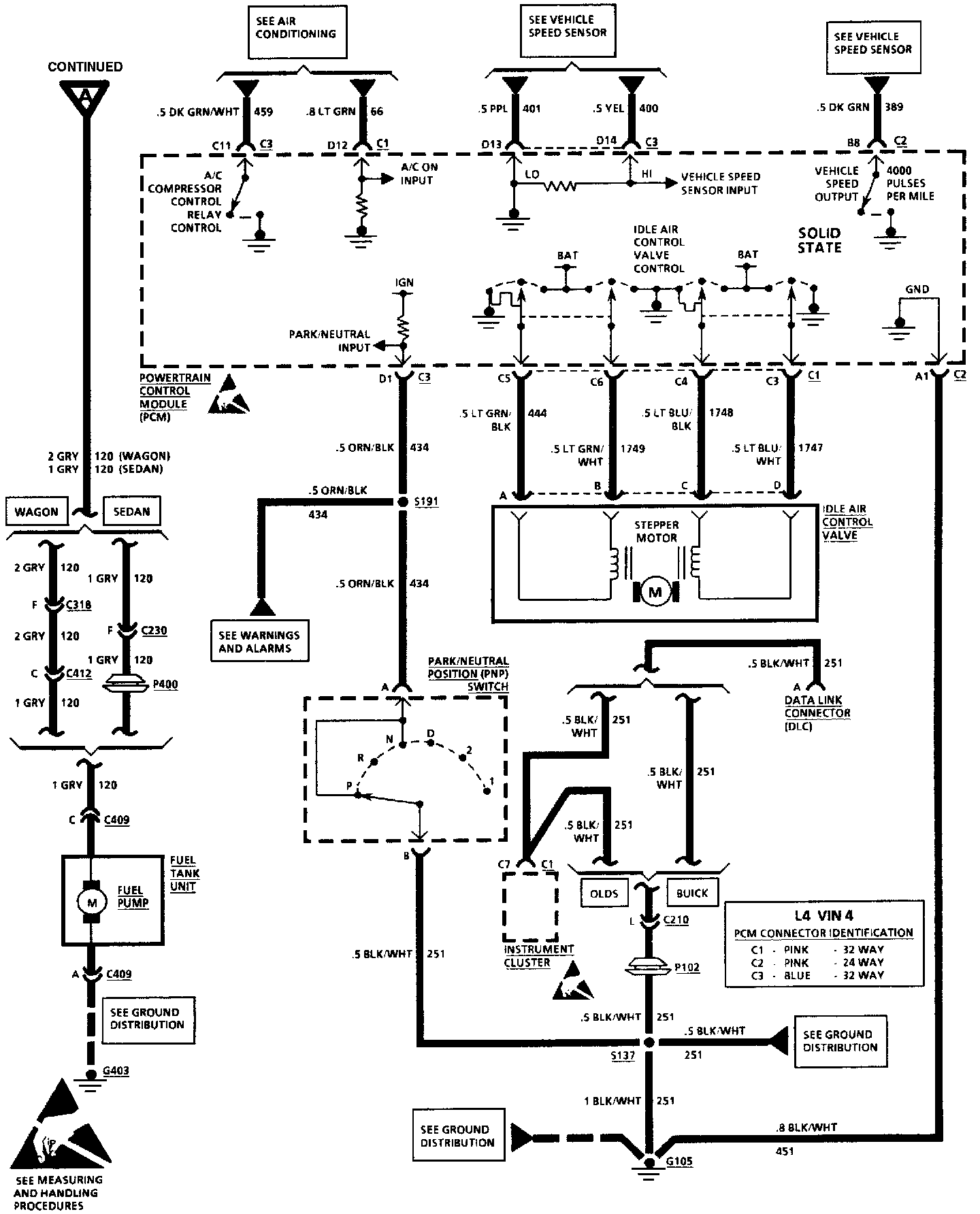

Power, Grounds And Fuel Control (Part 2 Of 2):
