Forward Discriminating Sensor
Forward Discriminating Sensor

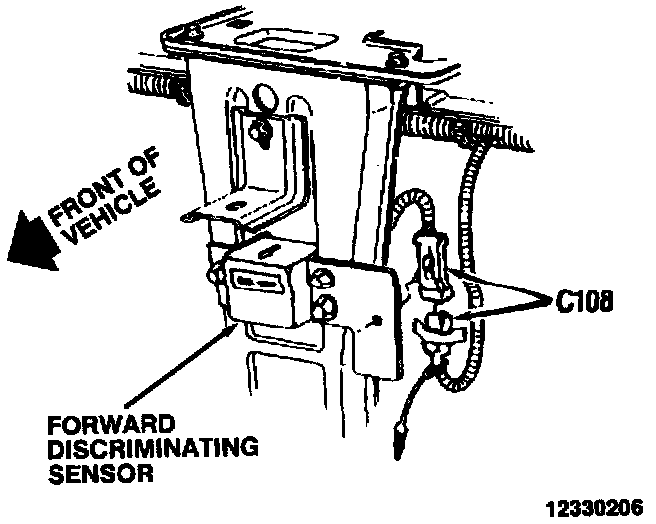

Front Of Engine Compartment, Center Of Radiator Support:
