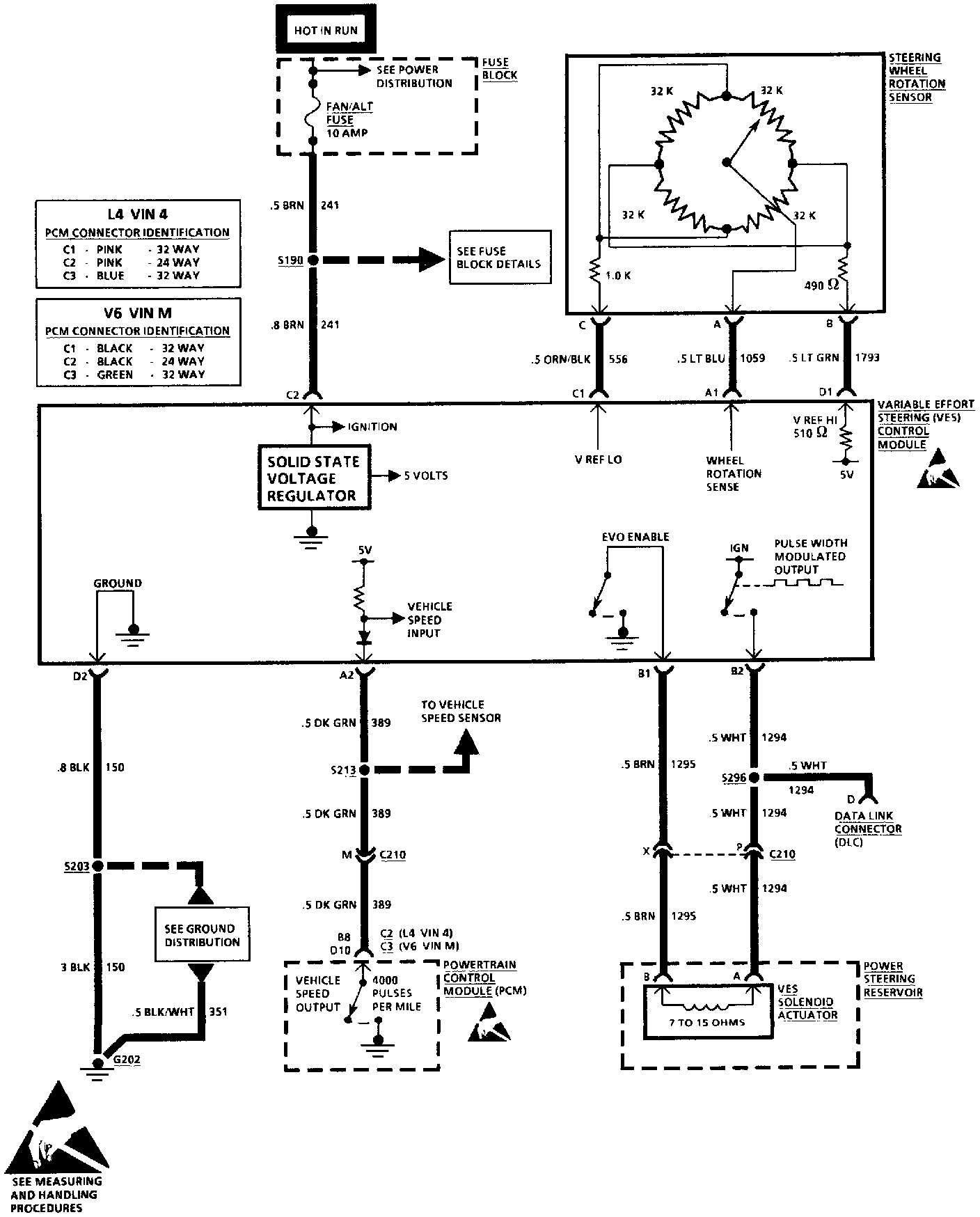

Power Steering Pressure Control Valve

Variable Effort Steering (VES): Electronic Variable Orifice Power Steering:
