Cutlass Supreme V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heads Up Display Unit
>>
Head Up Display (HUD) Module

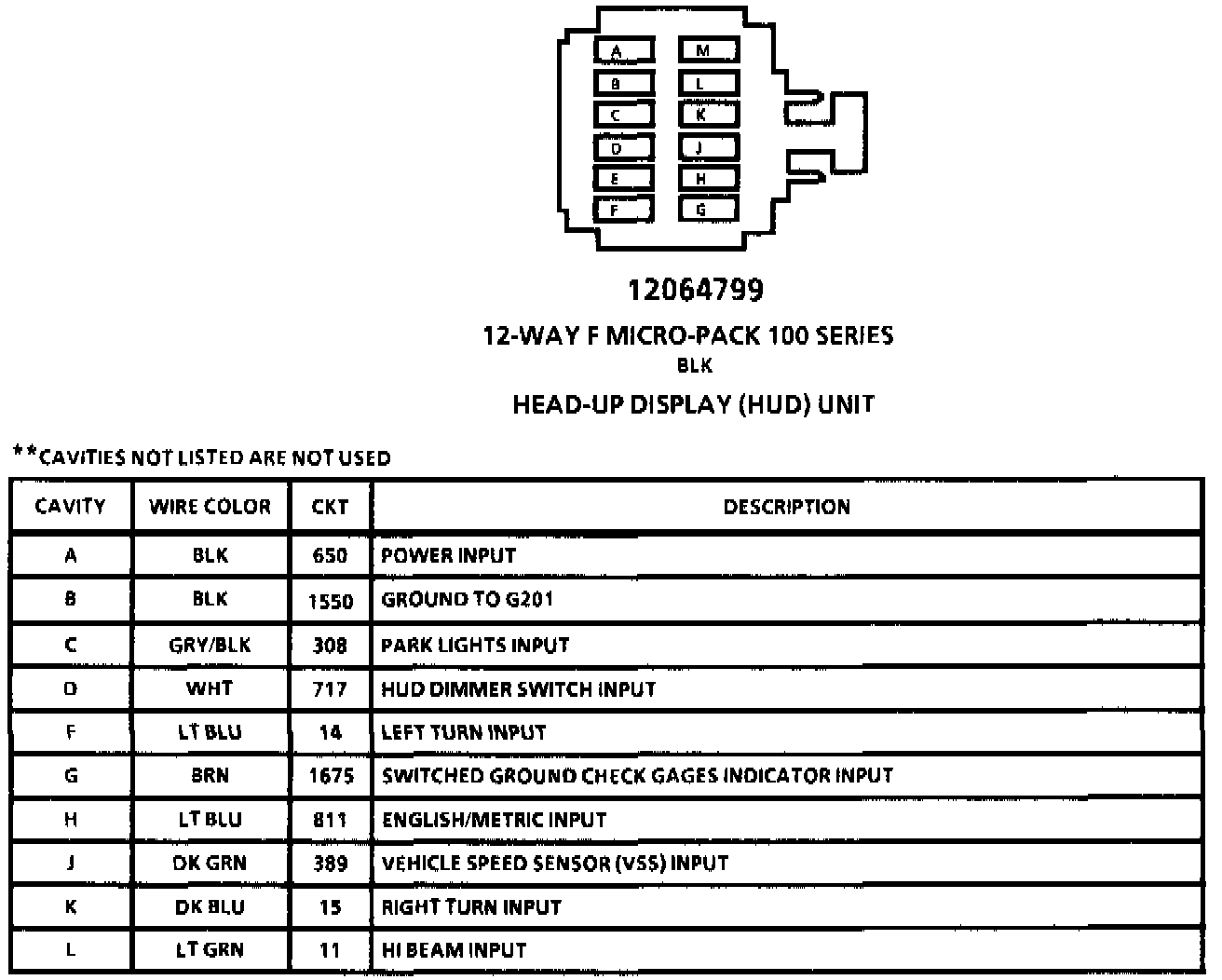

Head Up Display (HUD) Module
Harness Connector Face:
