Home >> Oldsmobile >> 1994 >> Cutlass Supreme V6-204 3.4L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

Keyless Entry - Part 1 Of 2:

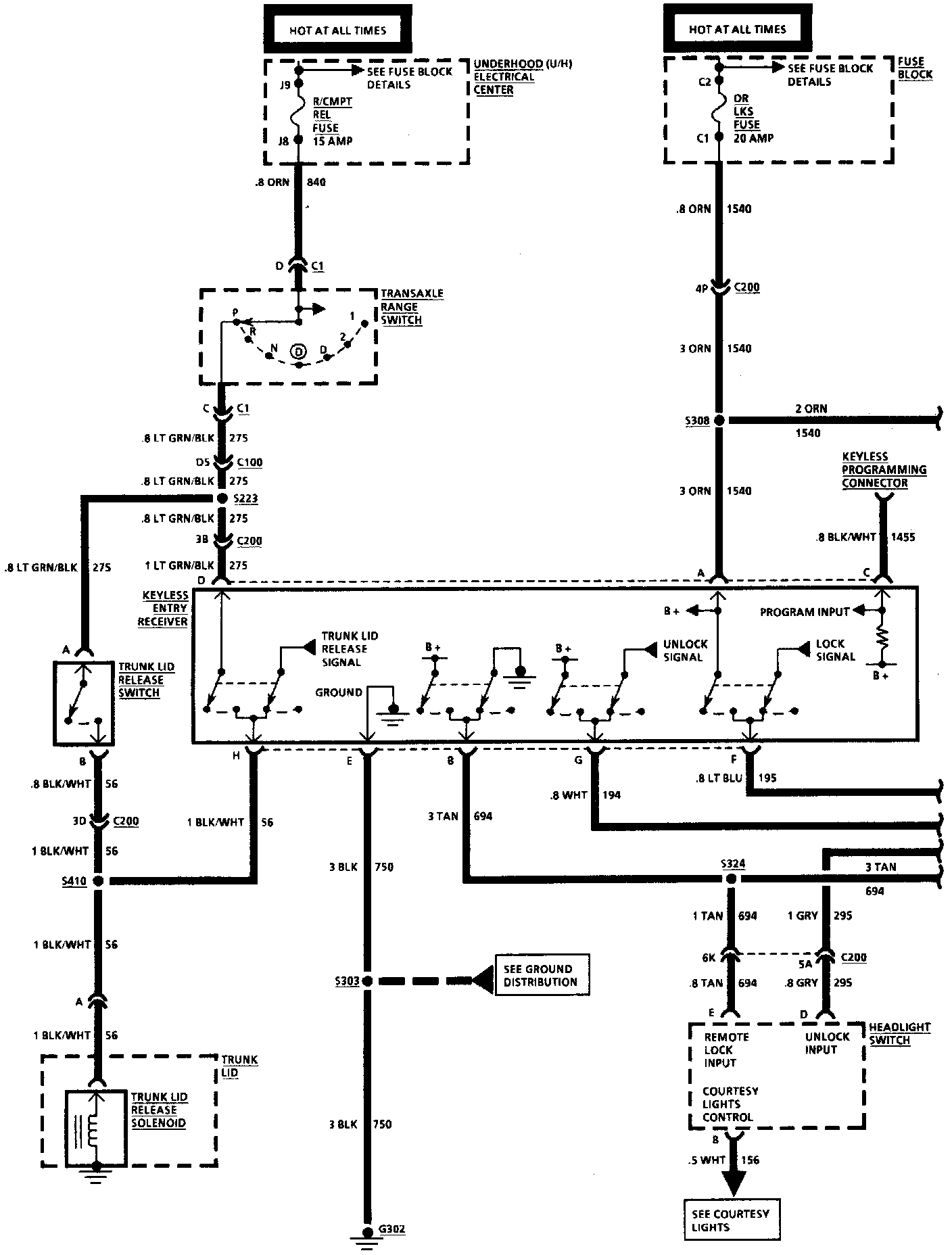

Keyless Entry - Part 2 Of 2:
