System Diagram

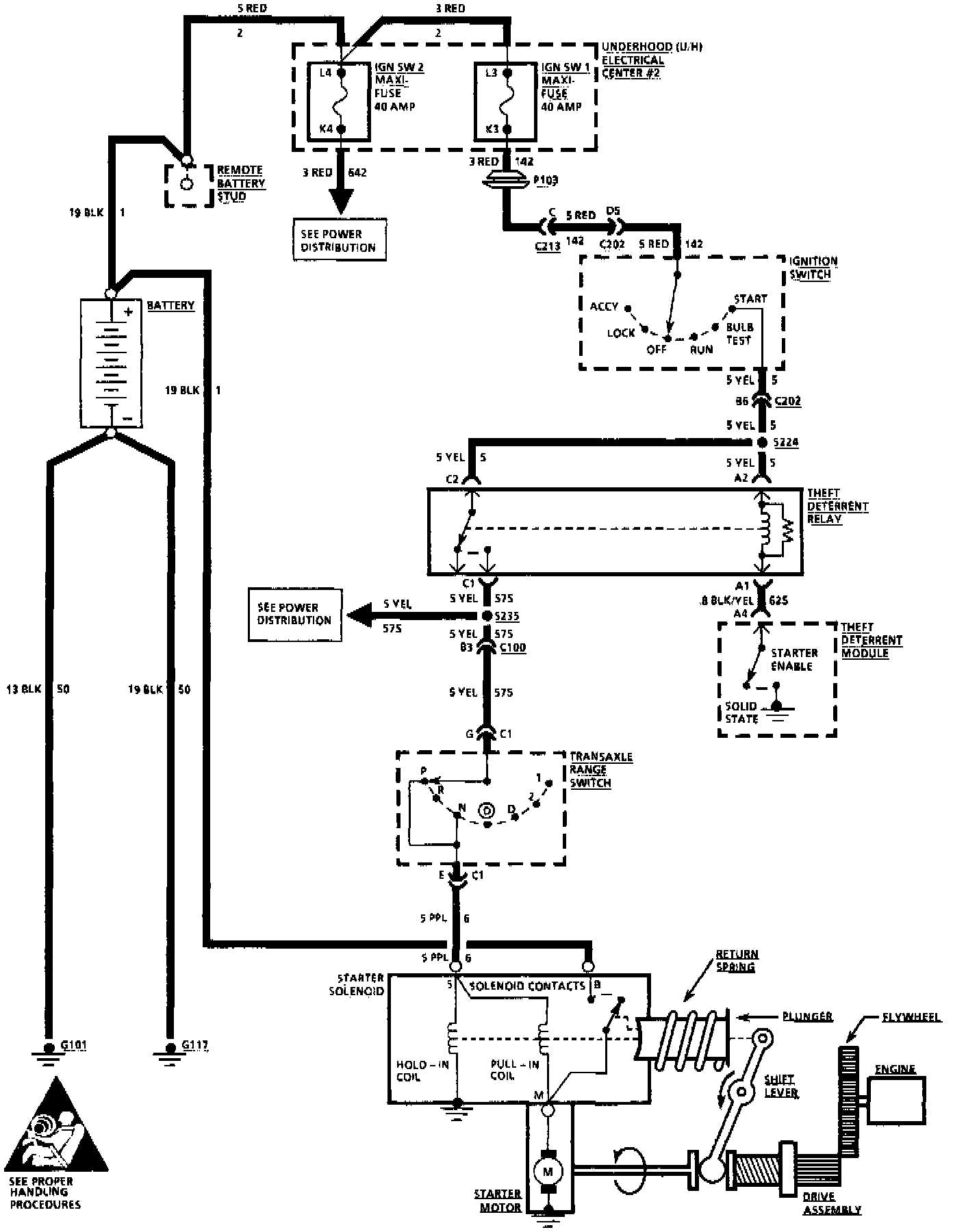

Starter and Charging System - Part 1 Of 2:



Starter and Charging System - Part 2 Of 2:
