Oldsmobile
>>
1994
>>
Cutlass Supreme V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Manual Air Conditioning
Manual Air Conditioning

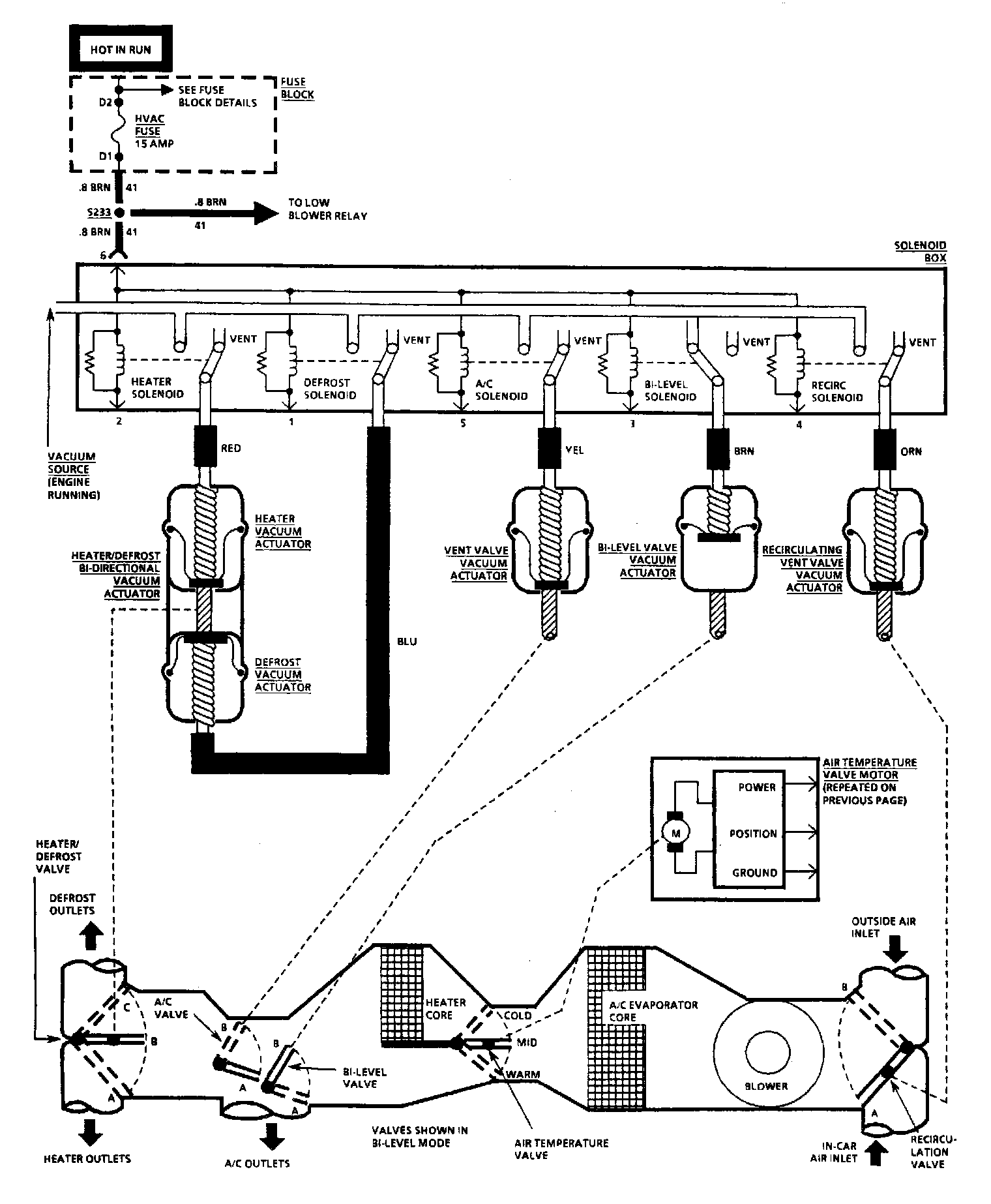

Air Delivery And Temperature Control (67) Part 3 Of 3:
