Gauges Cluster

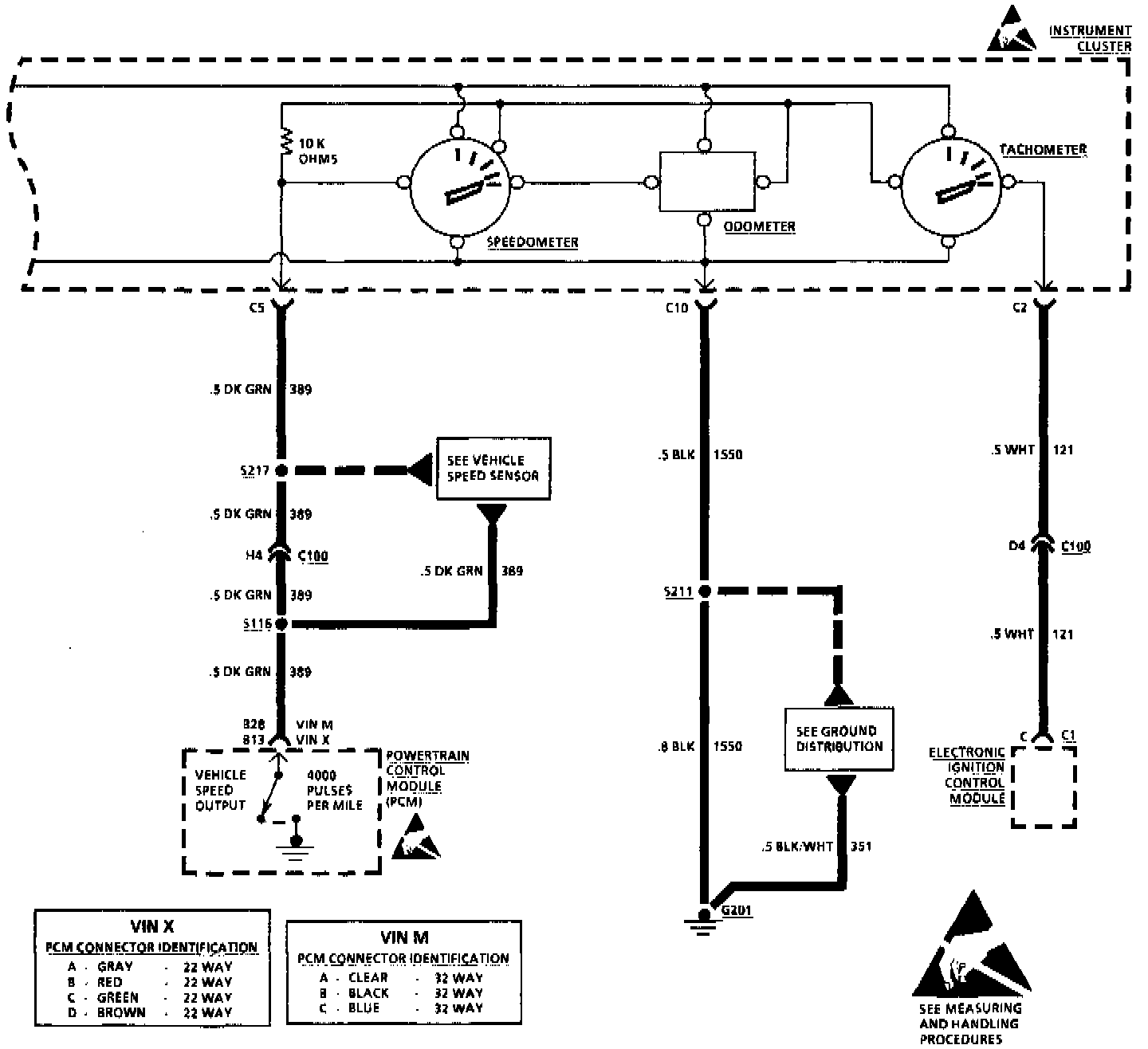

Instrument Cluster: Gauges - Part 1 of 2:



Instrument Cluster: Gauges - Part 2 of 2:
