Low Coolant Indicator ON, Coolant Level OK

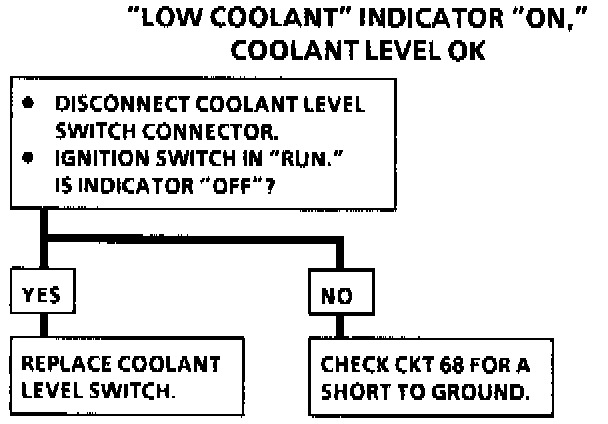

Low Coolant Indicator ON, Coolant Level OK
Instrument Cluster: Gauges Diagnostic Chart:
