Operation CHARM: Car repair manuals for everyone.

Home >> Oldsmobile >> 1994 >> Cutlass Supreme V6-204 3.4L DOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuse Block Diagrams >> Instrument Panel (I/P) Fuse Block >> Cluster Fuse

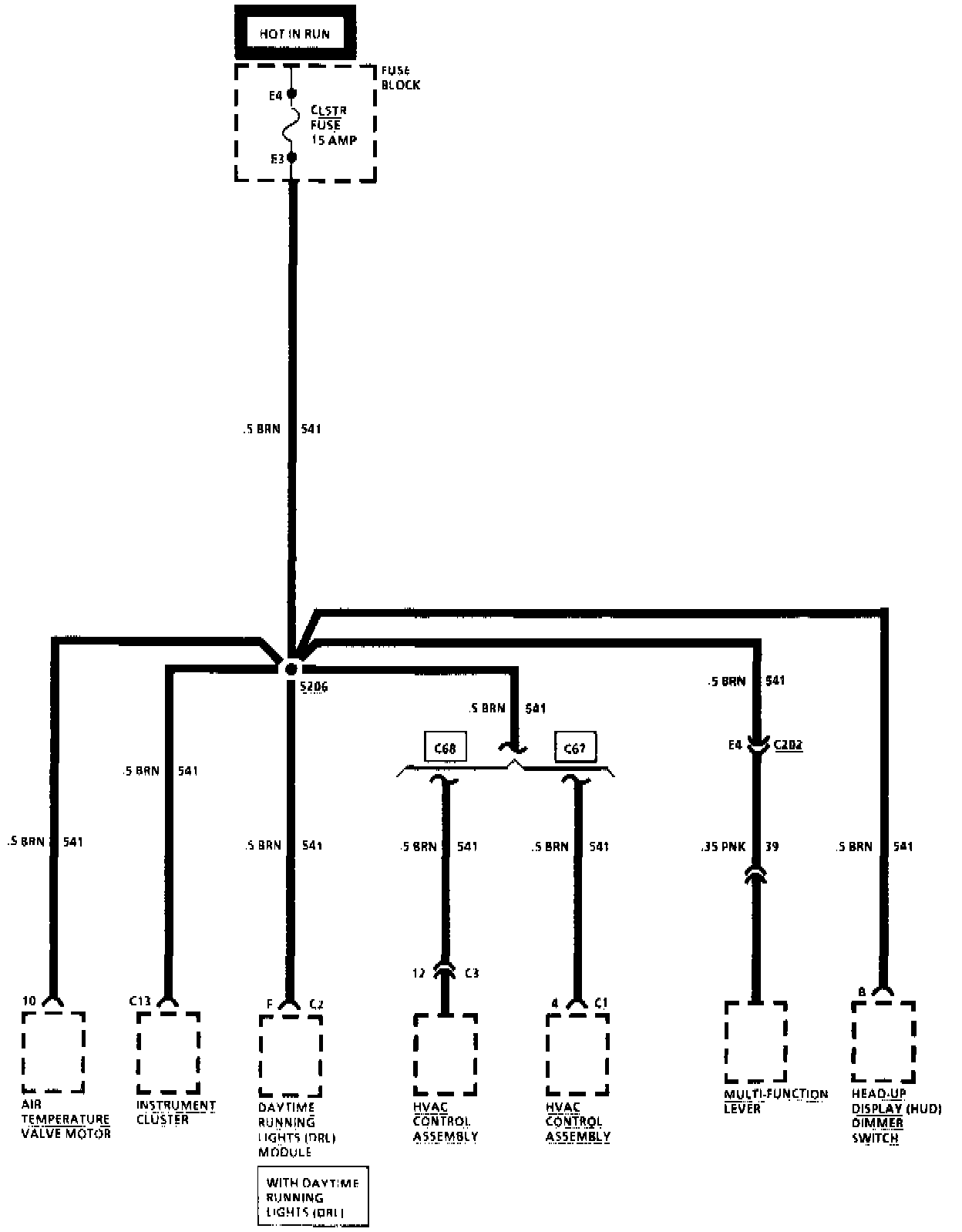

Cluster Fuse

Fuse Block Details:
