Power Distribution Diagrams

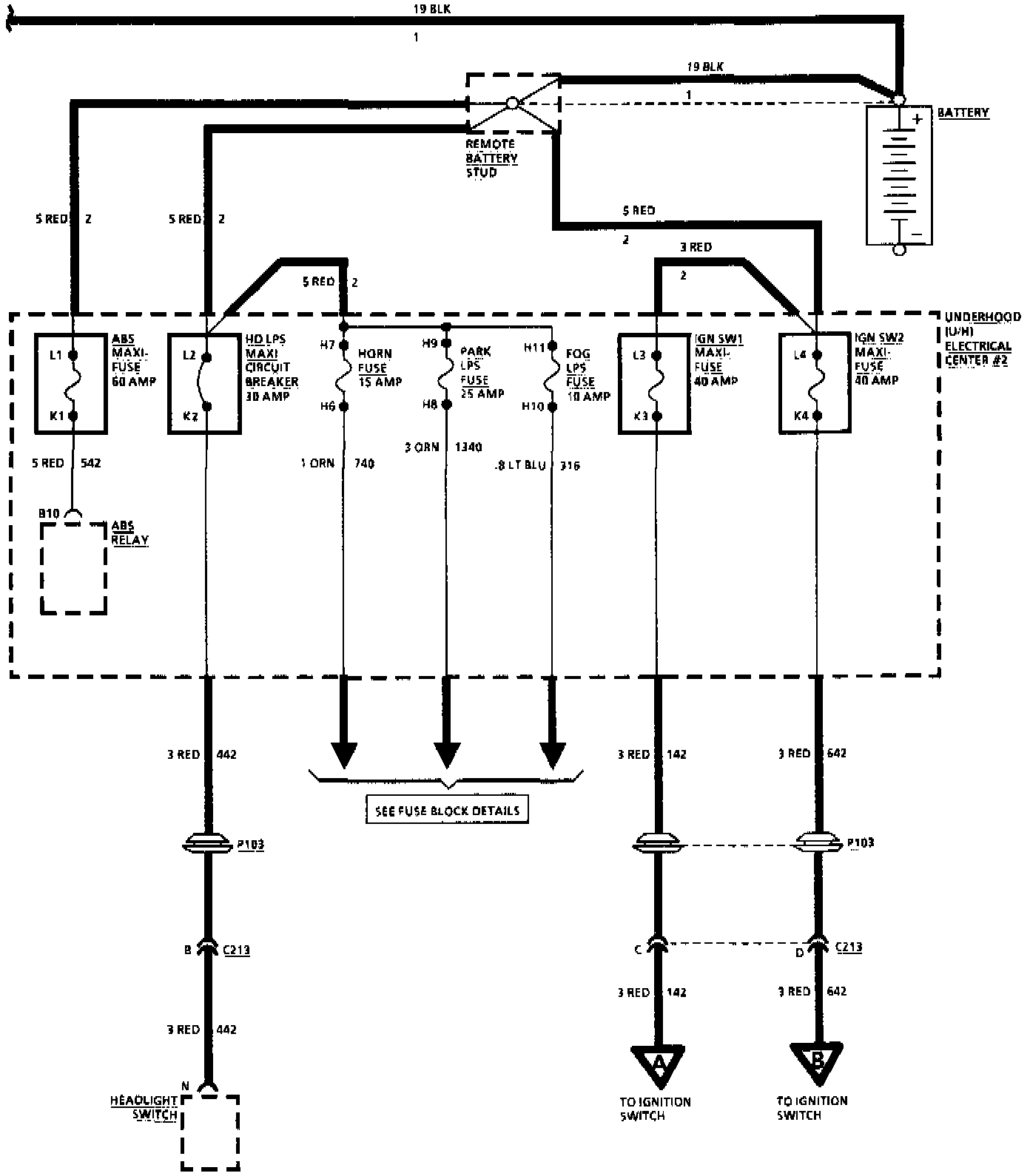

Power Distribution - Part 1 of 4:

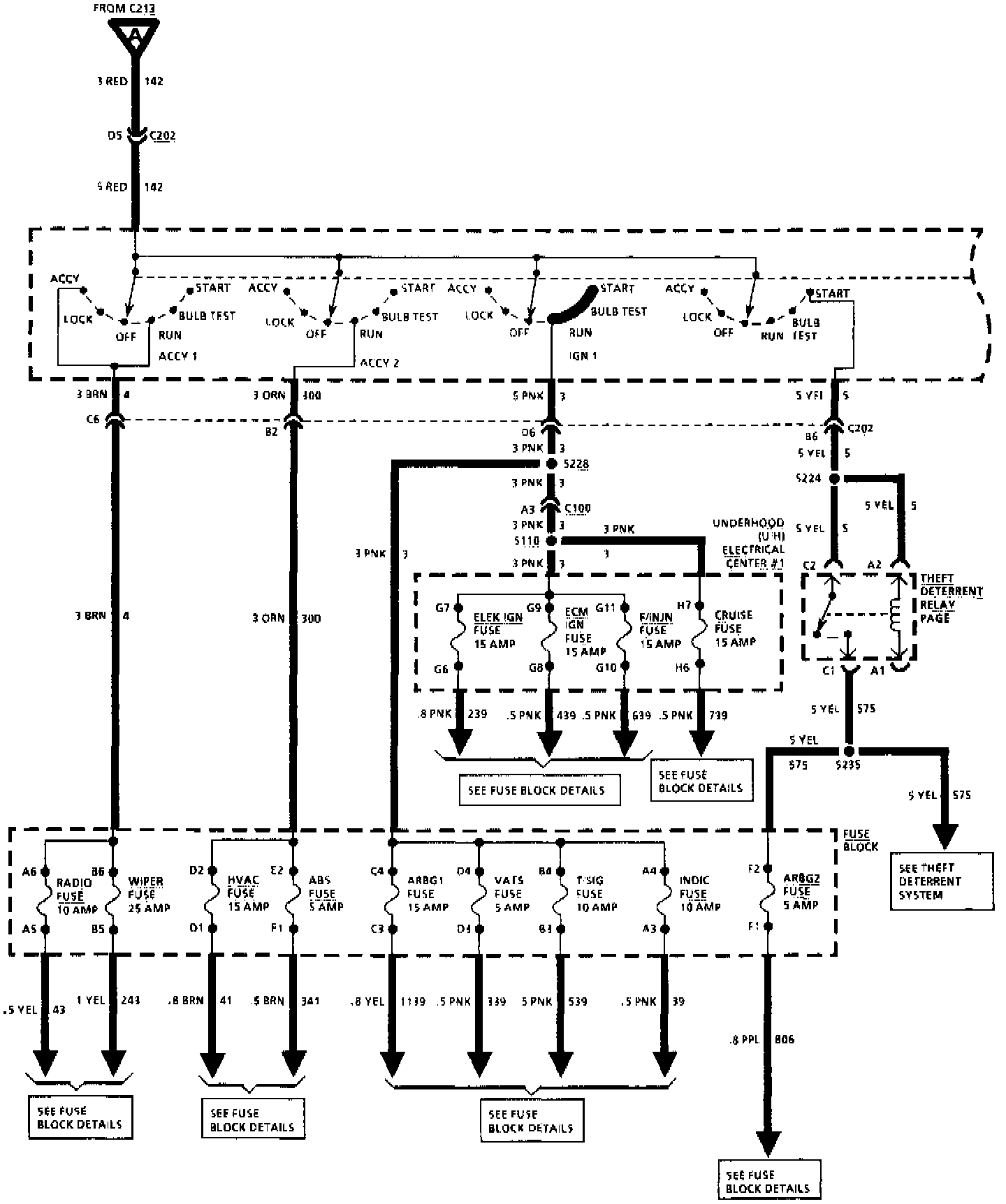

Power Distribution - Part 2 of 4:

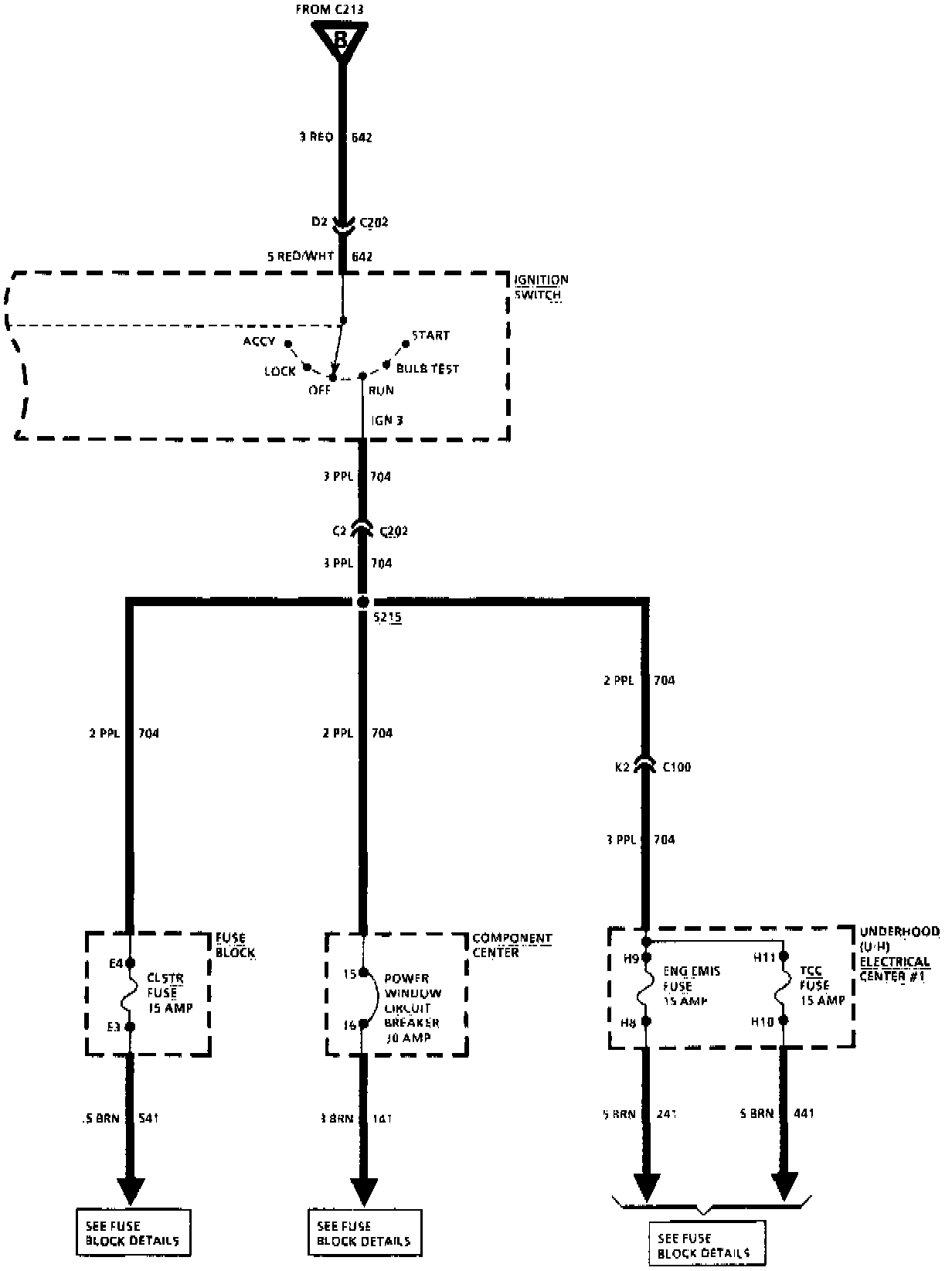

Power Distribution - Part 3 of 4:
Power Distribution - Part 4 of 4:
