Automatic Transmission/Transaxle Controls
Automatic Transmission/Transaxle Controls
Sequential Fuel Injection - Part 1 of 2:
Sequential Fuel Injection - Part 2 of 2:

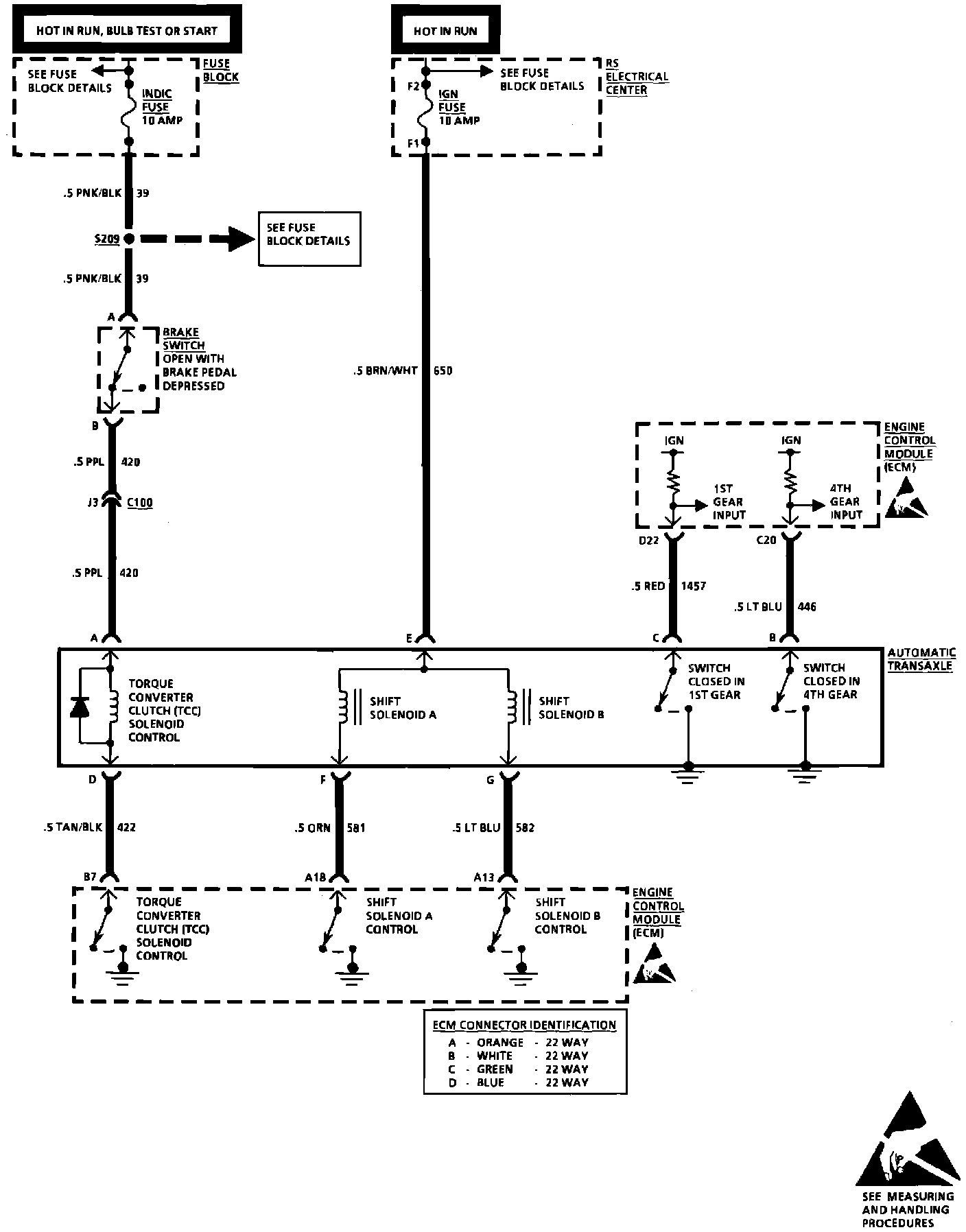

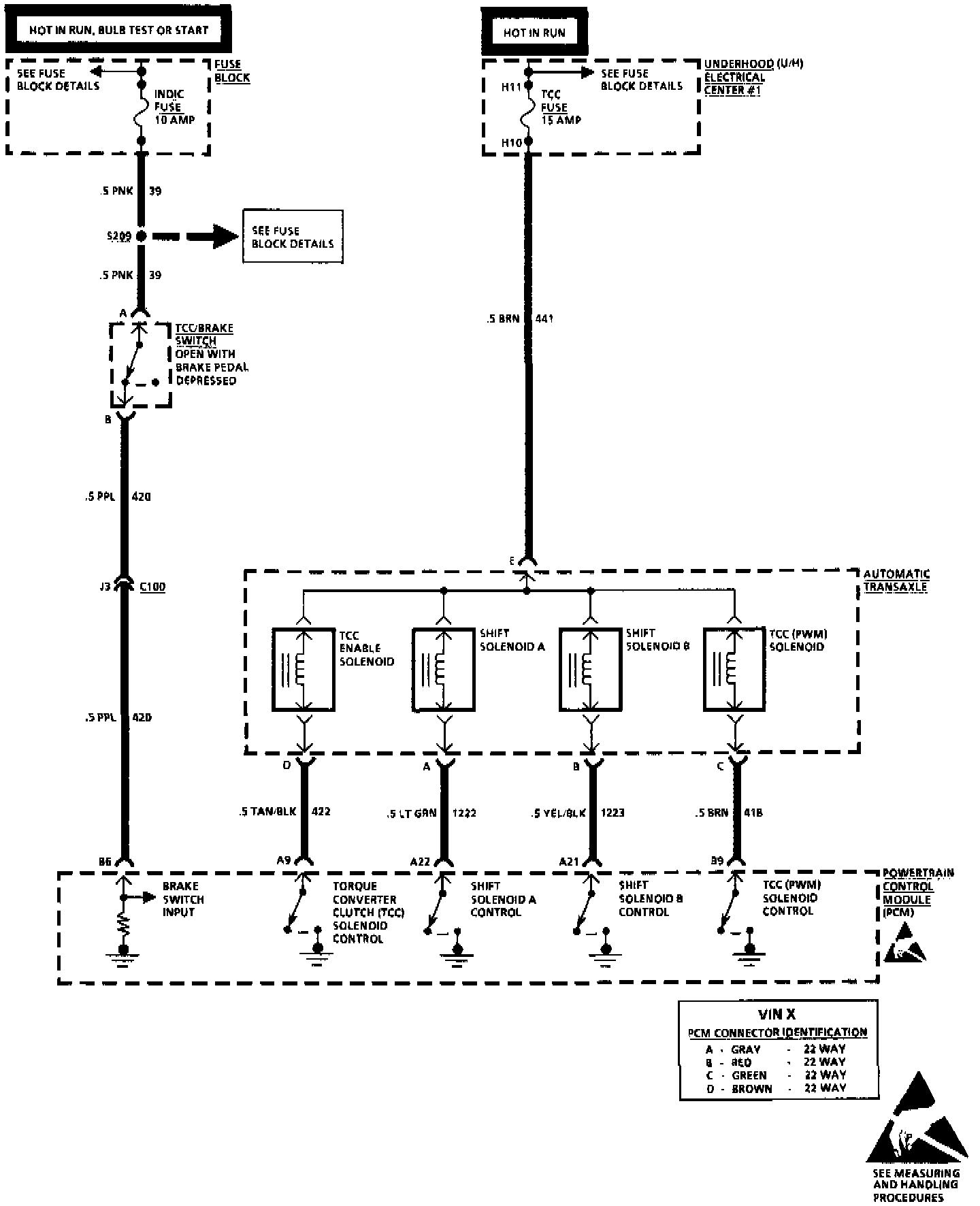

Wiring Diagram:
