Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1994
>>
Cutlass Supreme V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

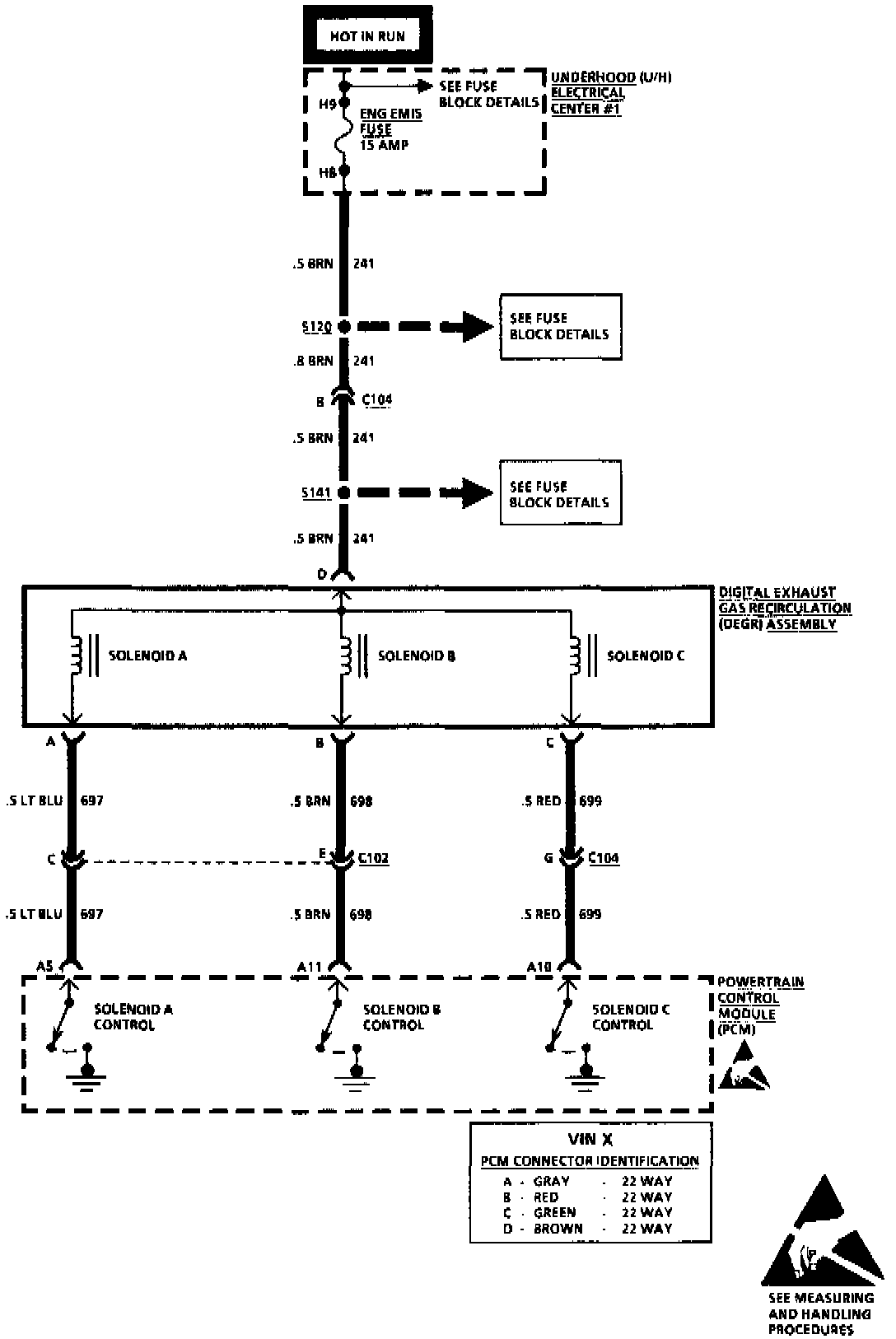

Exhaust Gas Recirculation (EGR) System
Exhaust Gas Recirculation (EGR) System
Sequential Fuel Injection:
