Fuel Control & Fuel Injectors
Fuel Control & Fuel Injectors

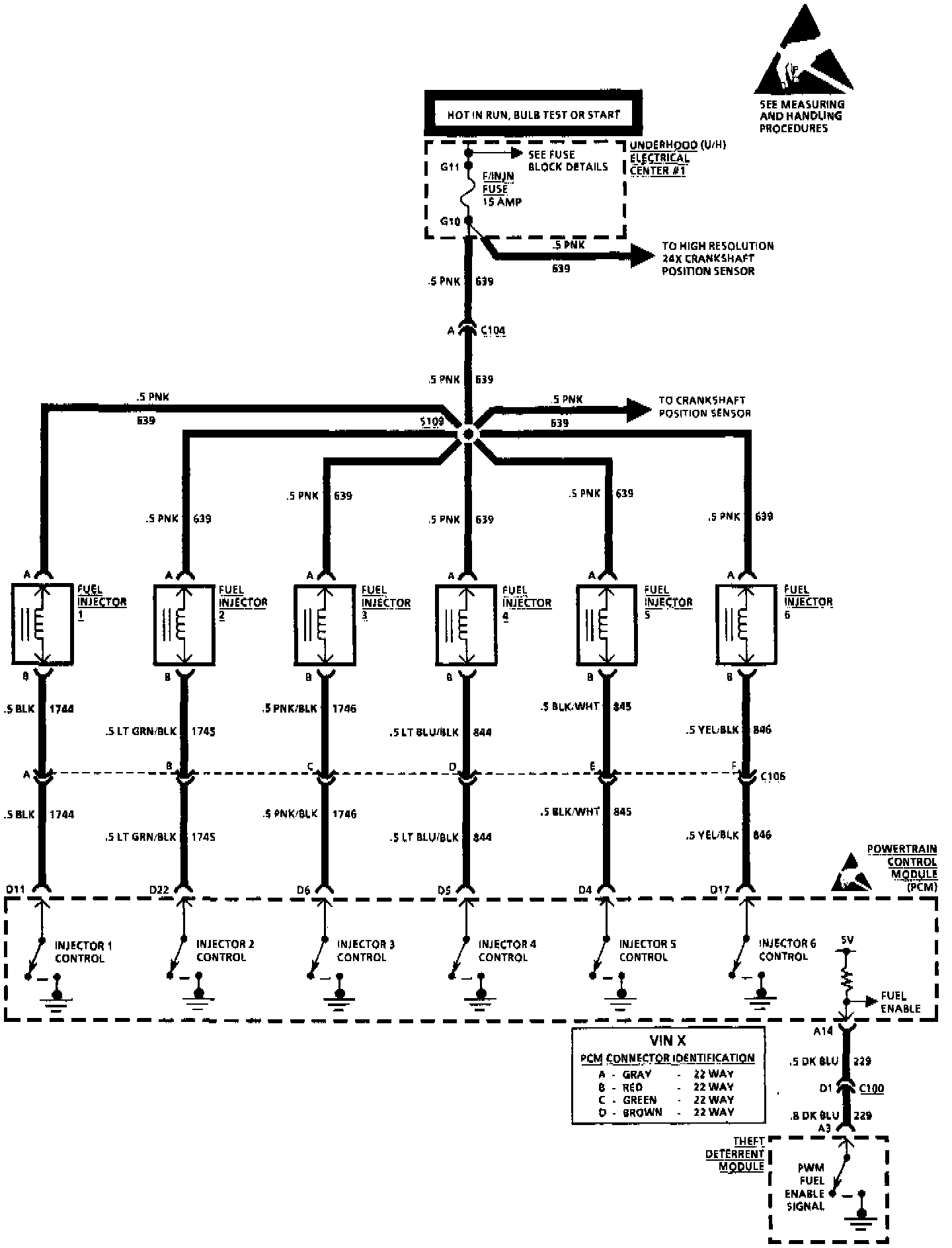

Sequential Fuel Injection:
Sequential Fuel Injection:
