Cruise Control Switch: Description and Operation

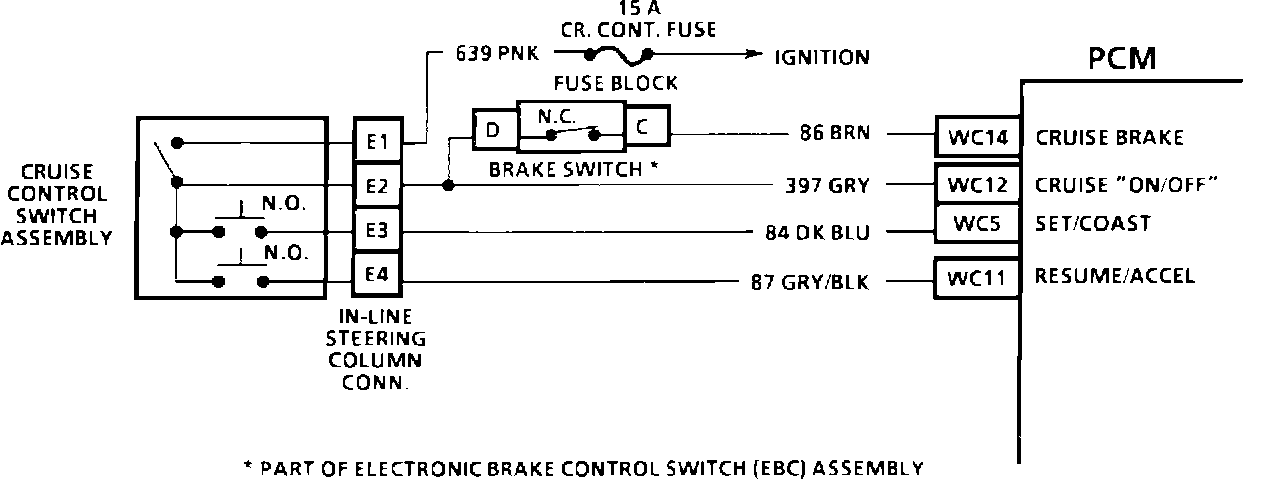

Cruise Switches Circuit:

Purpose:
The cruise control switches are used to control the function of the PCM controlled cruise system.

Operation:
The switch provides system voltage to the PCM and is protected on CKT 639 by a 15 amp fuse.

Location:
The cruise control switches are located in the steering column.
