Ninety-Eight V6-3800 3.8L Supercharged
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Cruise Control System Diagnosis Test C-17
Cruise Control System Diagnosis Test C-17
Chart C-17, Cruise Control System Check (Part 1 Of 2):
Chart C-17, Cruise Control System Check (Part 2 Of 2):

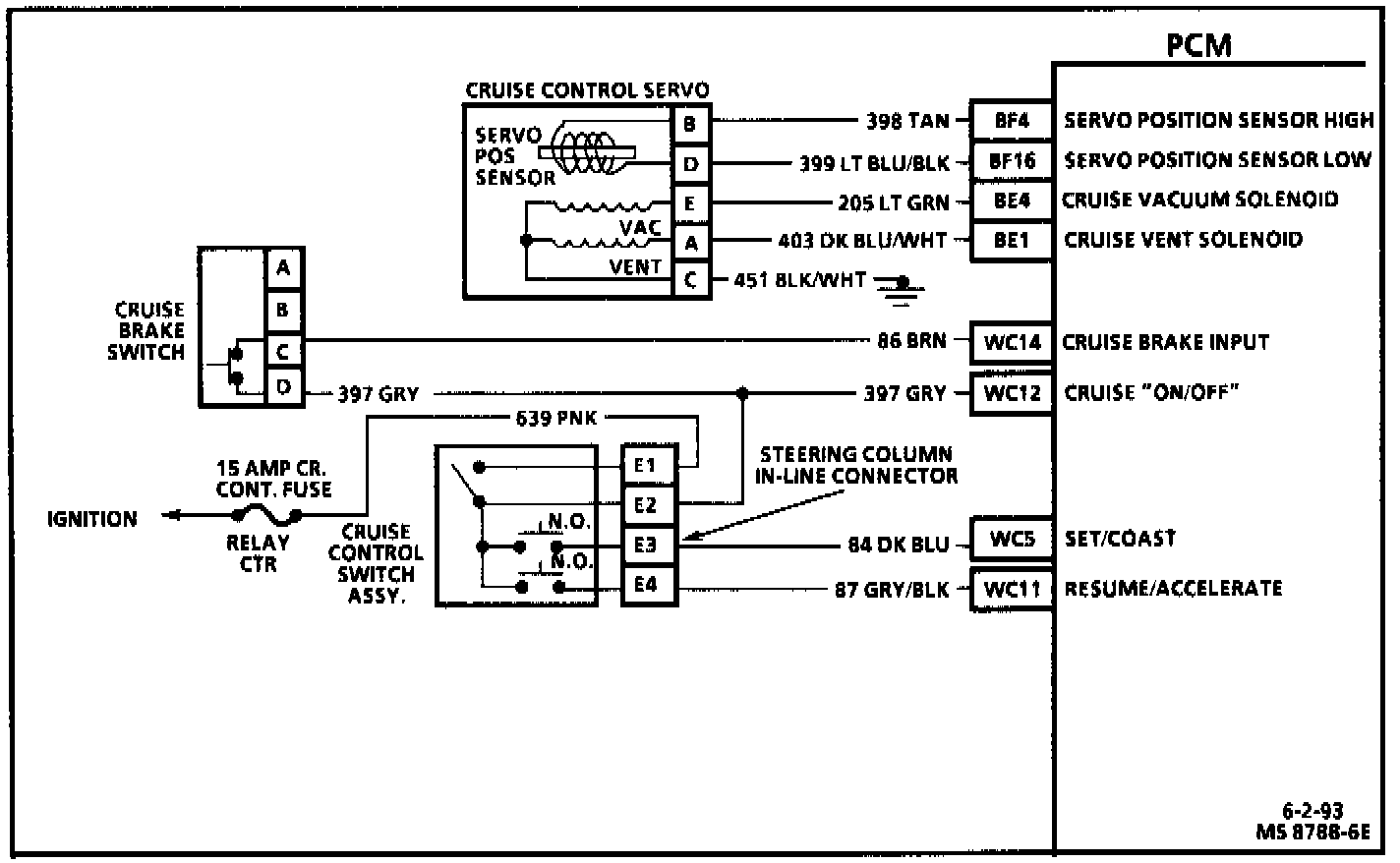

Cruise System Control Circuits Schematic:
