Indicators ENG Coolant Temp Sensor (Indicators Cluster)
Indicators ENG Coolant Temp Sensor (Indicators Cluster)

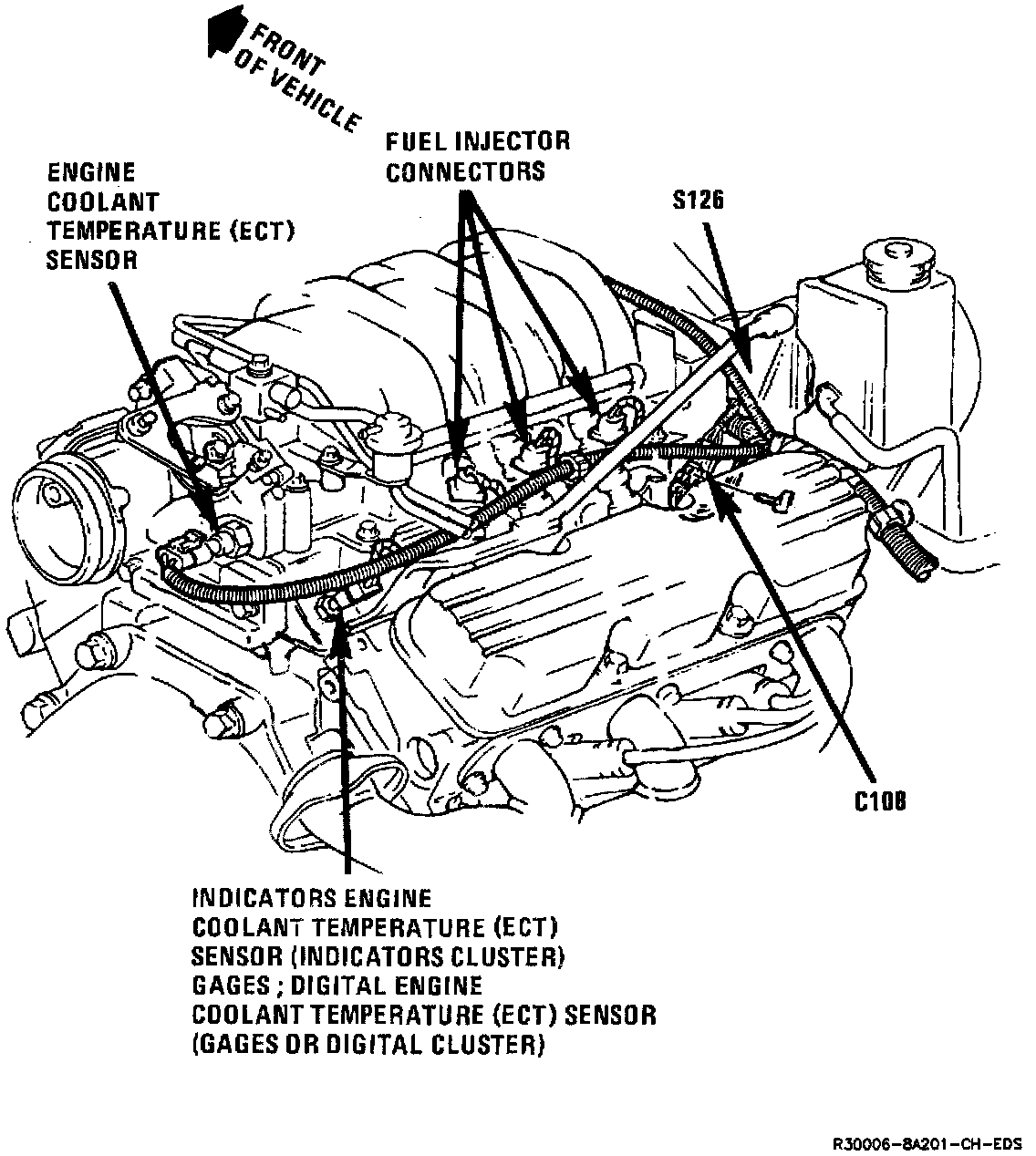

LH Rear Side Of Engine:

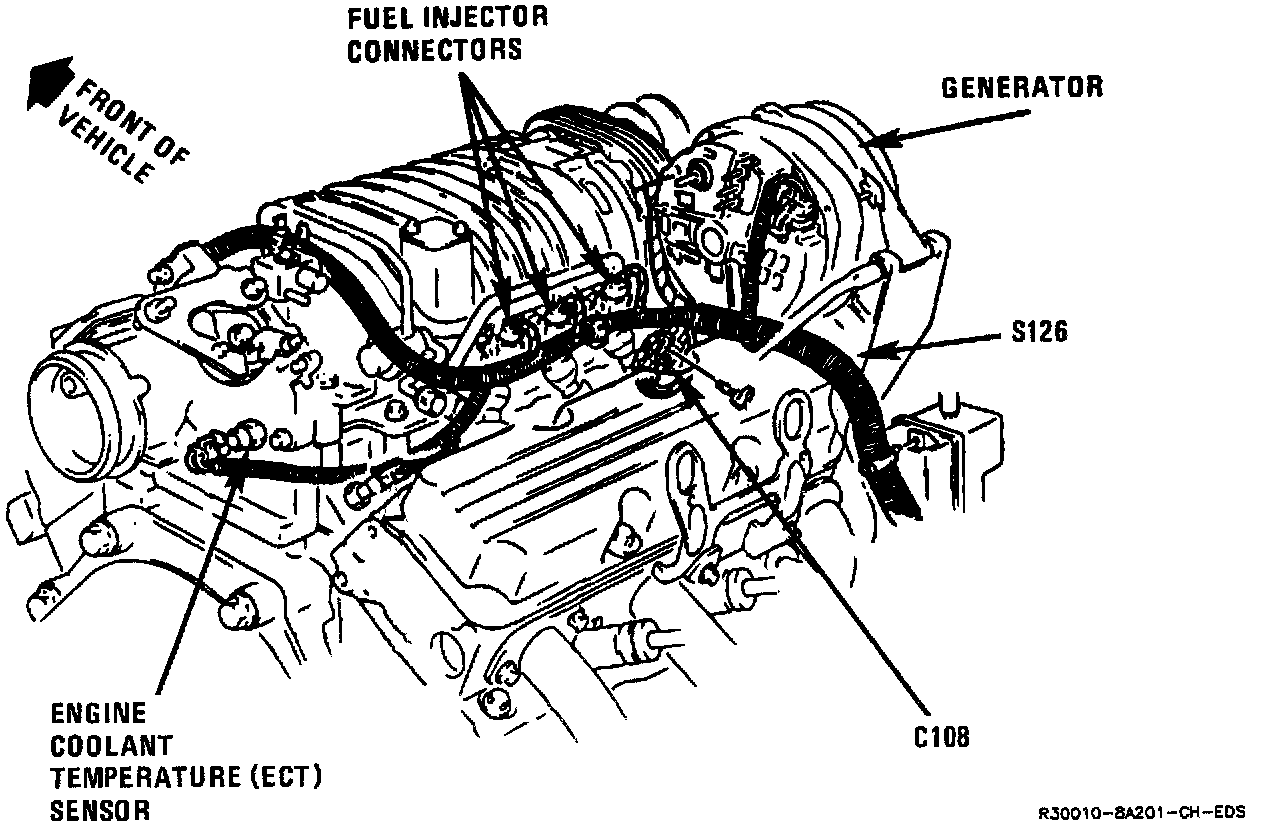

Top LH Rear Of Engine:
