Brake Warning Indicator
>>
Gages Cluster
Gages Cluster

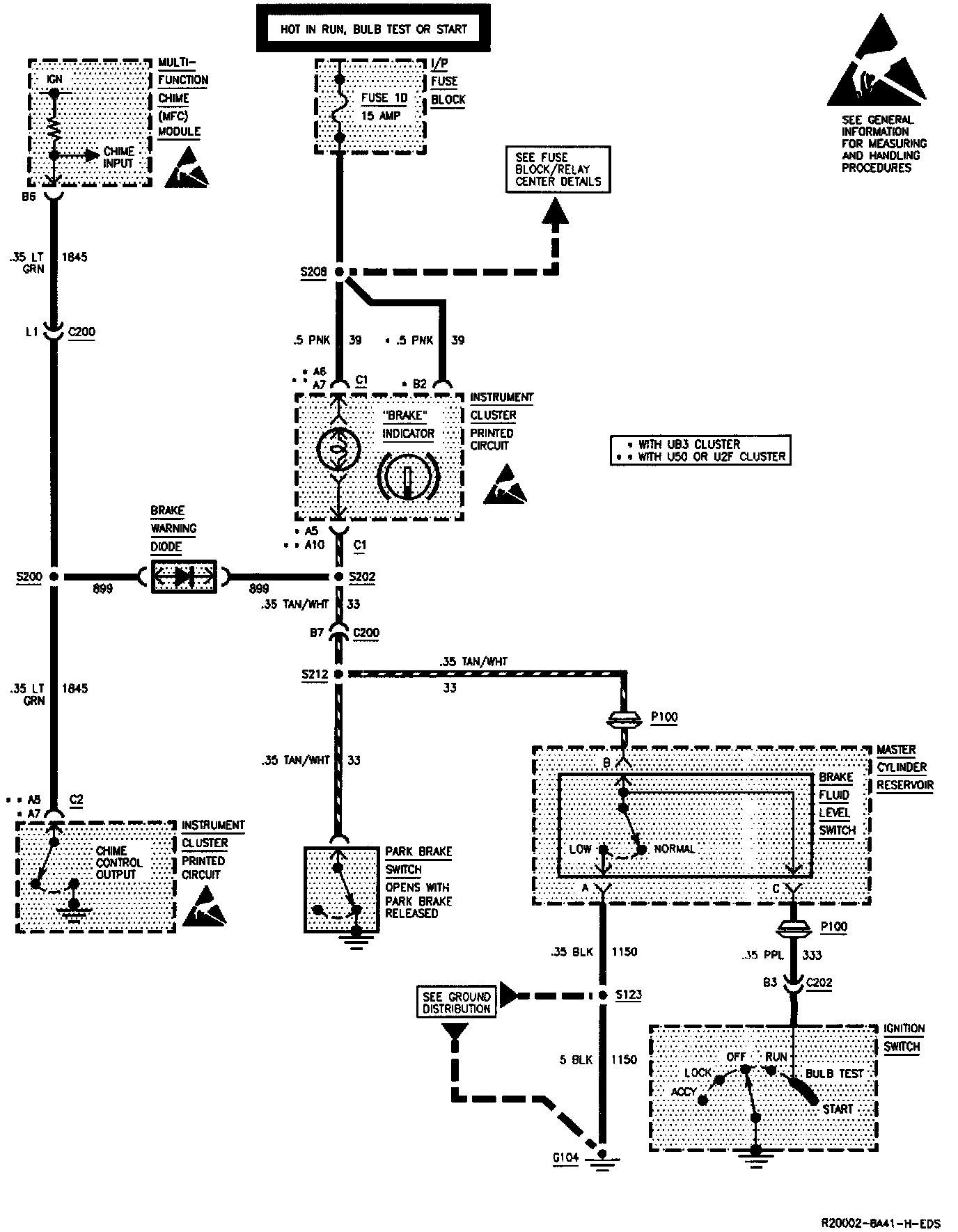

Brake Warning System: Gages Cluster (UB3,U2F,U50):
