Brake Warning Indicator
>>
Indicators Cluster
Indicators Cluster

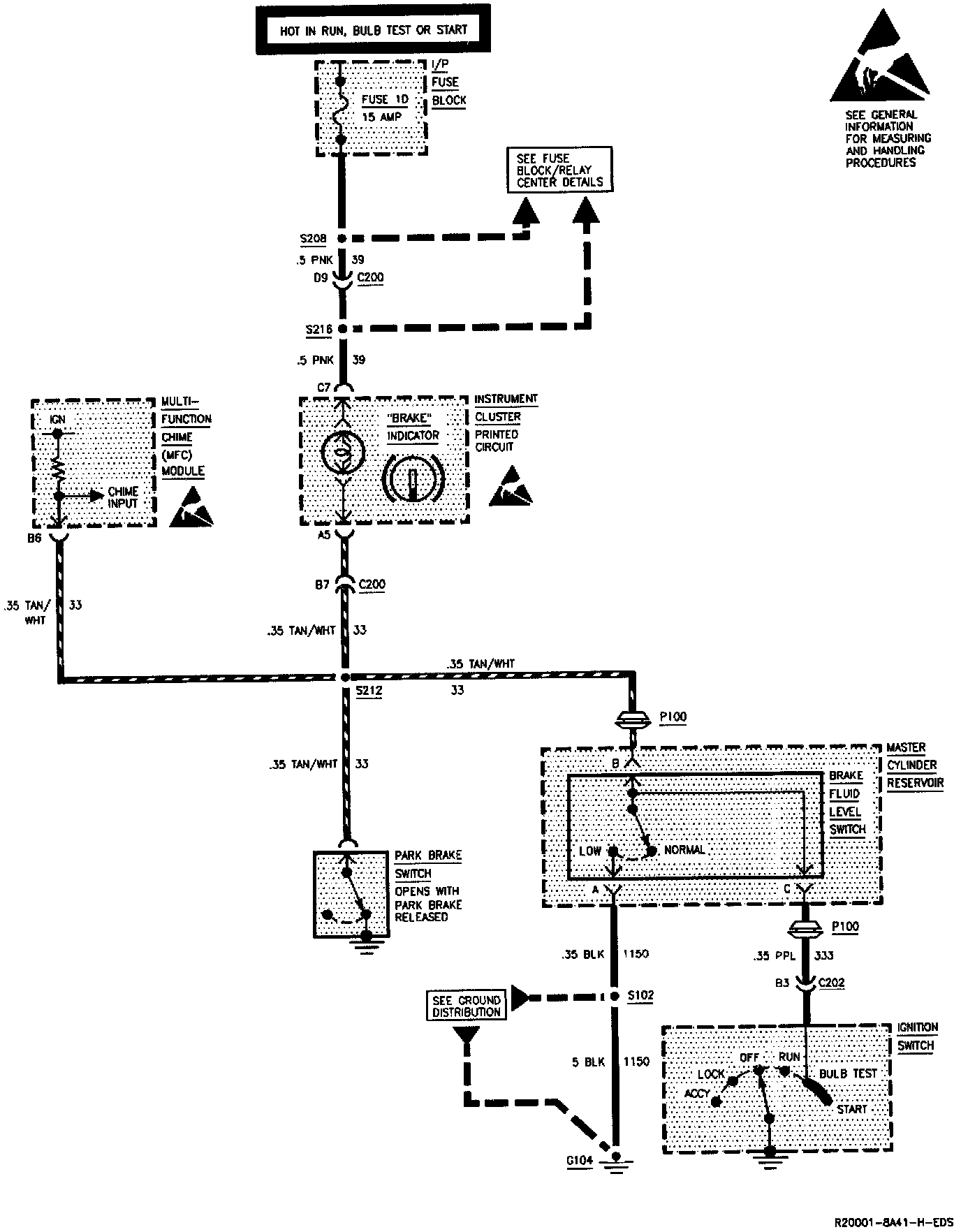

Brake Warning System: Indicators Cluster (U2E):
