Map Light

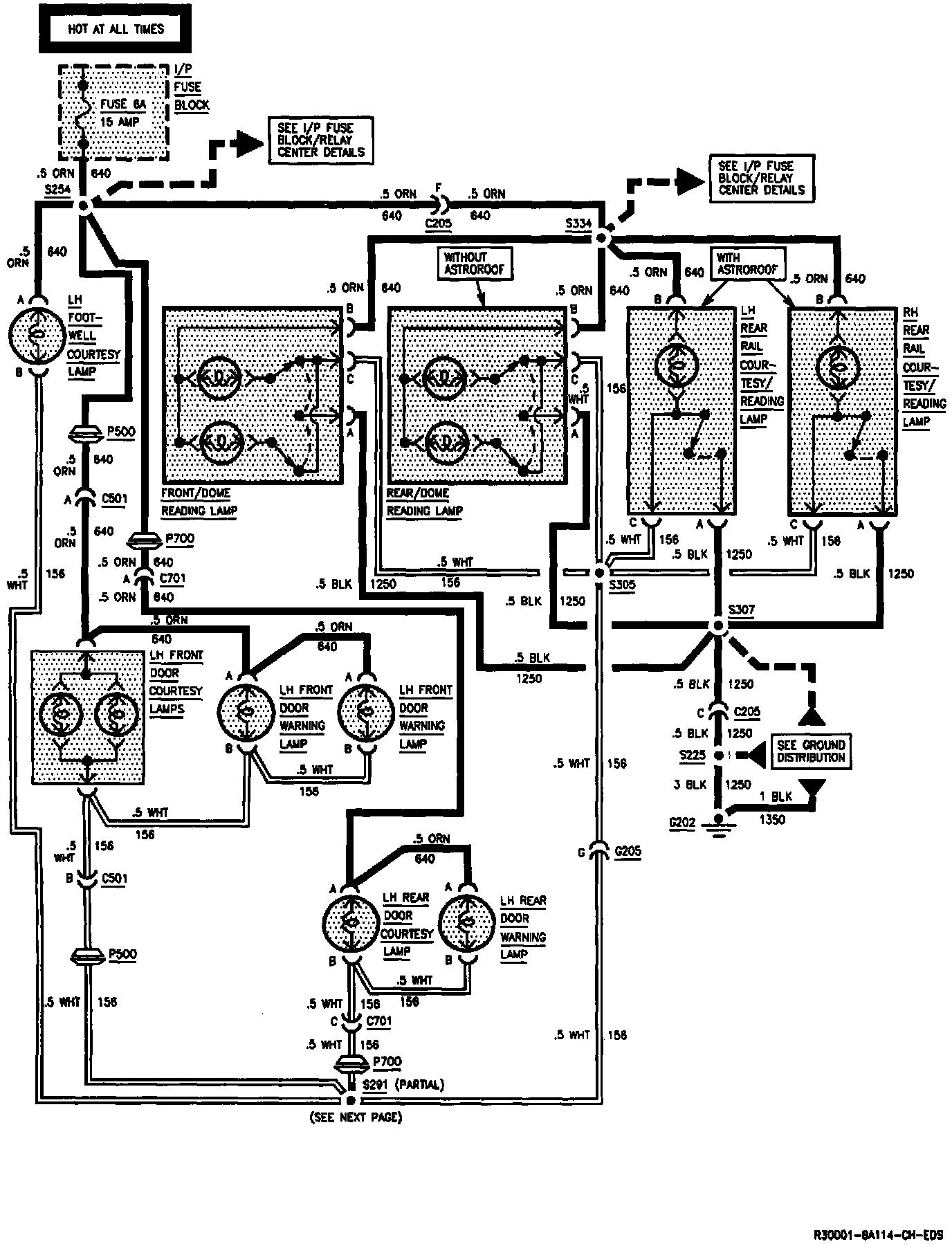

Courtesy/Warning/Reading: Without Illuminated Entry (T2T) (Part 1 Of 2):

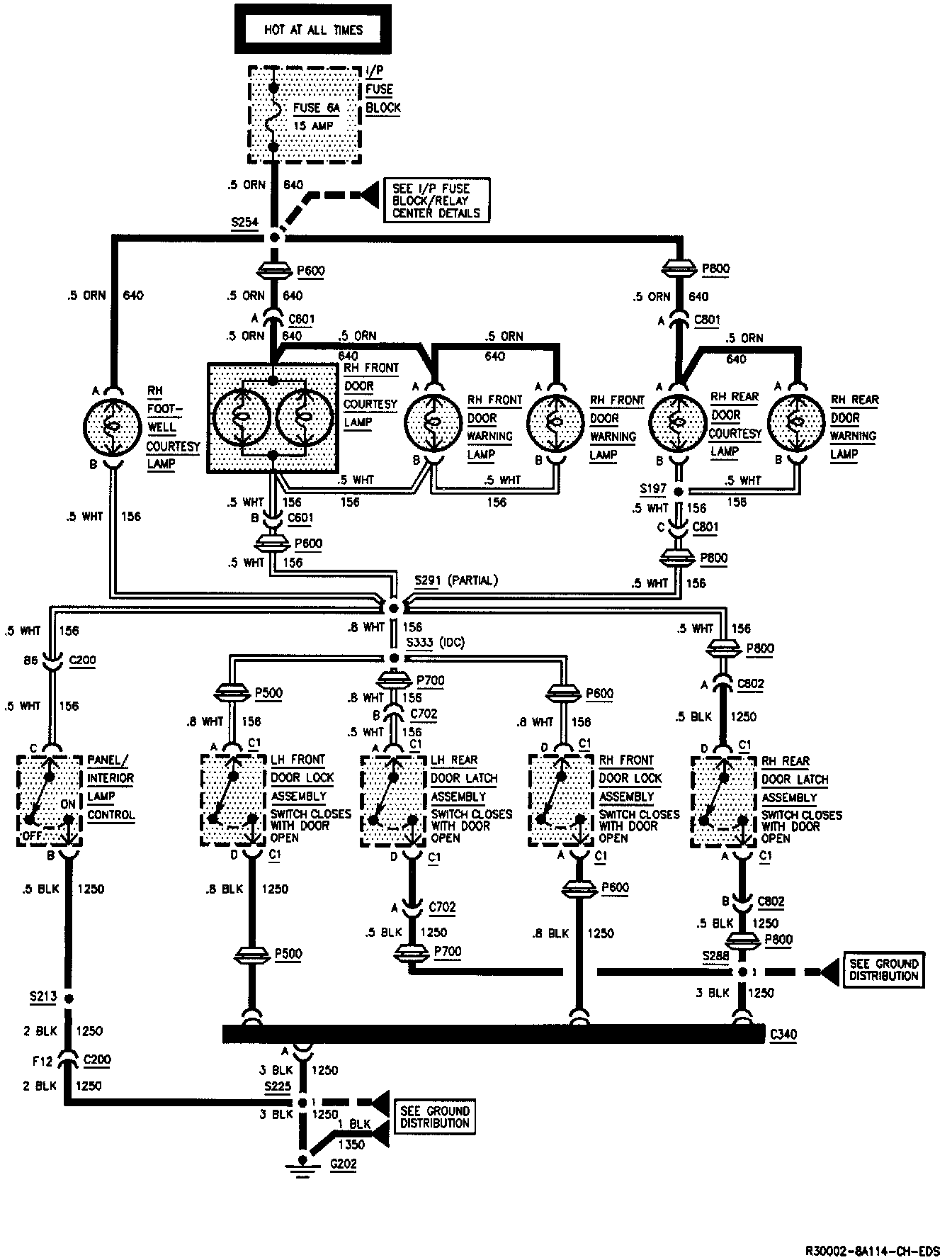

Courtesy/Warning/Reading: Without Illuminated Entry (T2T) (Part 2 Of 2):

This diagram is one part of the Complete Set of Interior Lighting Wiring Diagrams located under Lighting and Horns. Refer to this area if you need the accompanying diagrams. Electrical Diagrams
