Home >> Oldsmobile >> 1994 >> Ninety-Eight V6-3800 3.8L Supercharged >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Memory Seat/Memory Mirrors

Memory Seat/Memory Mirrors

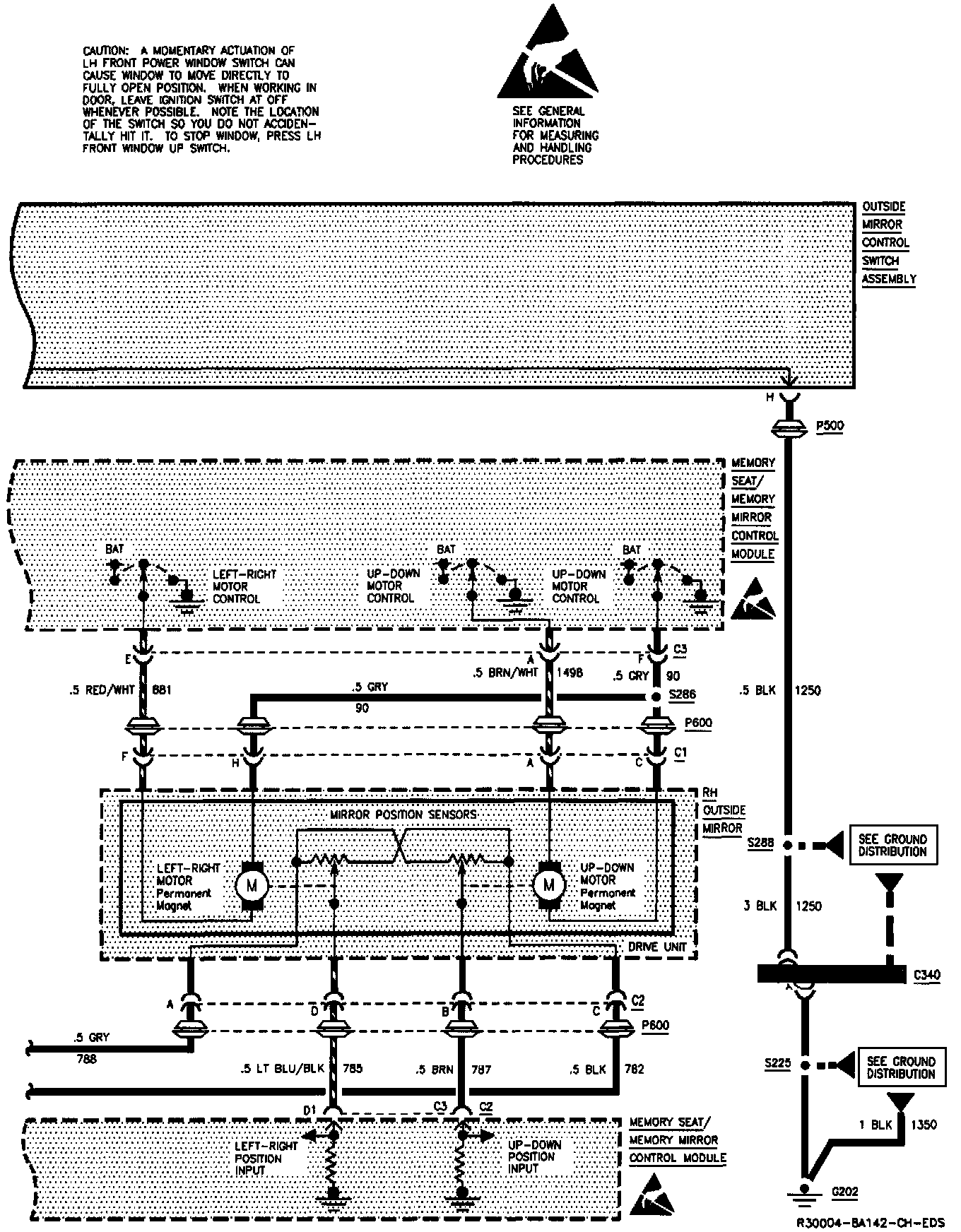

Memory Seat/Memory Mirrors (A43) (Part 1 Of 4):




Part 1 of 4

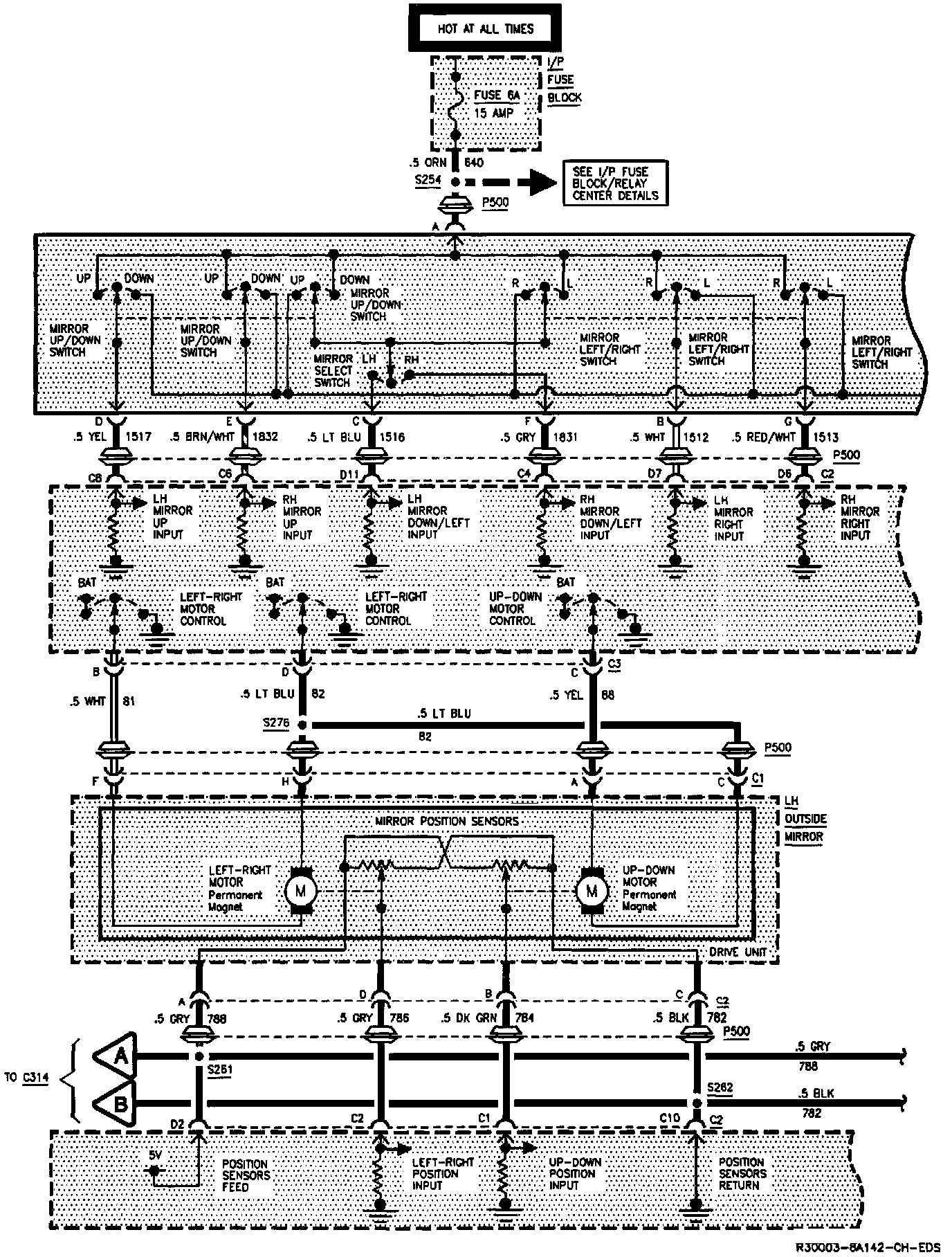

Memory Seat/Memory Mirrors (A43) (Part 2 Of 4):




Part 2 of 4

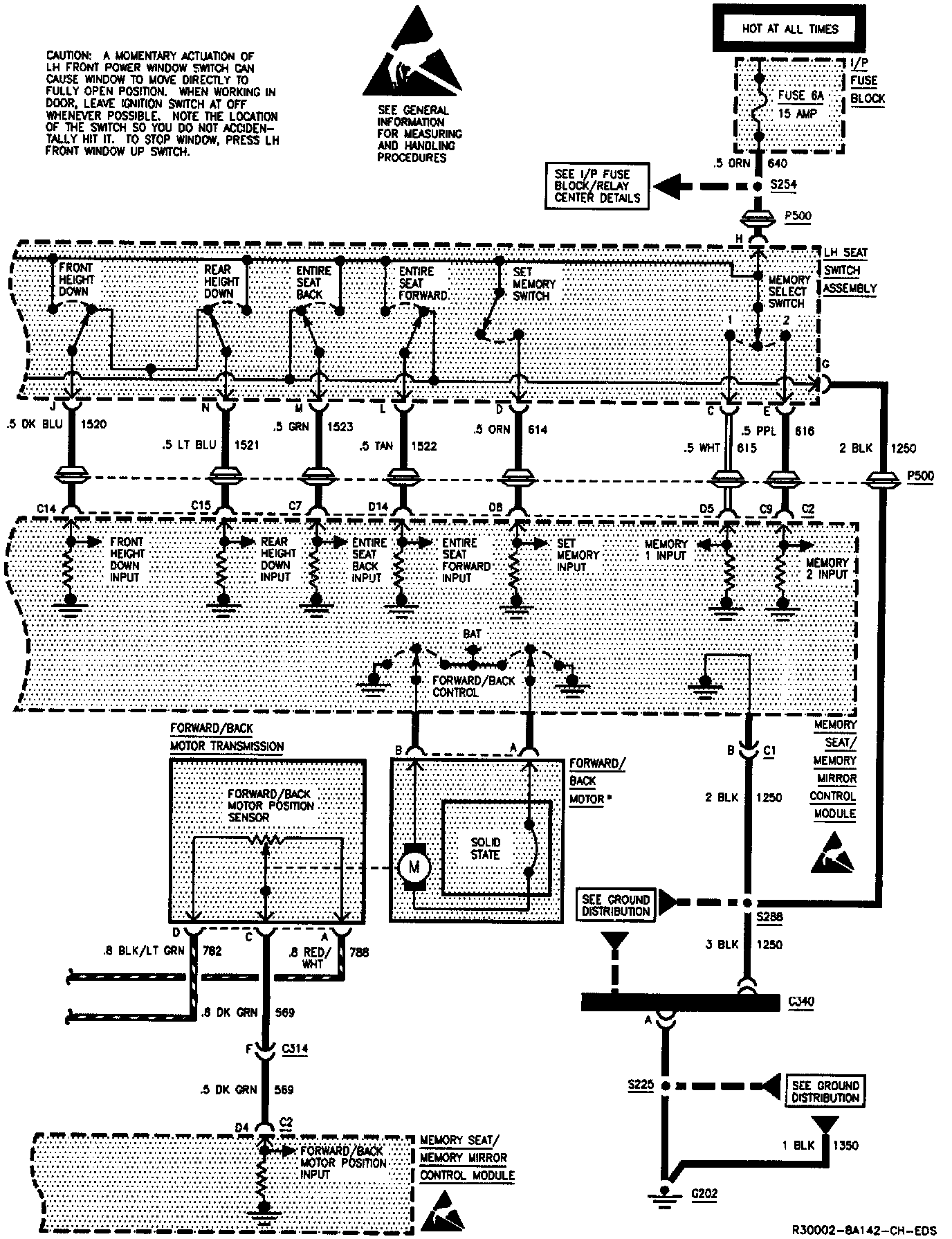

Memory Seat/Memory Mirrors (A43) (Part 3 Of 4):




Part 3 of 4

Memory Seat/Memory Mirrors (A43) (Part 4 Of 4):




Part 4 of 4
