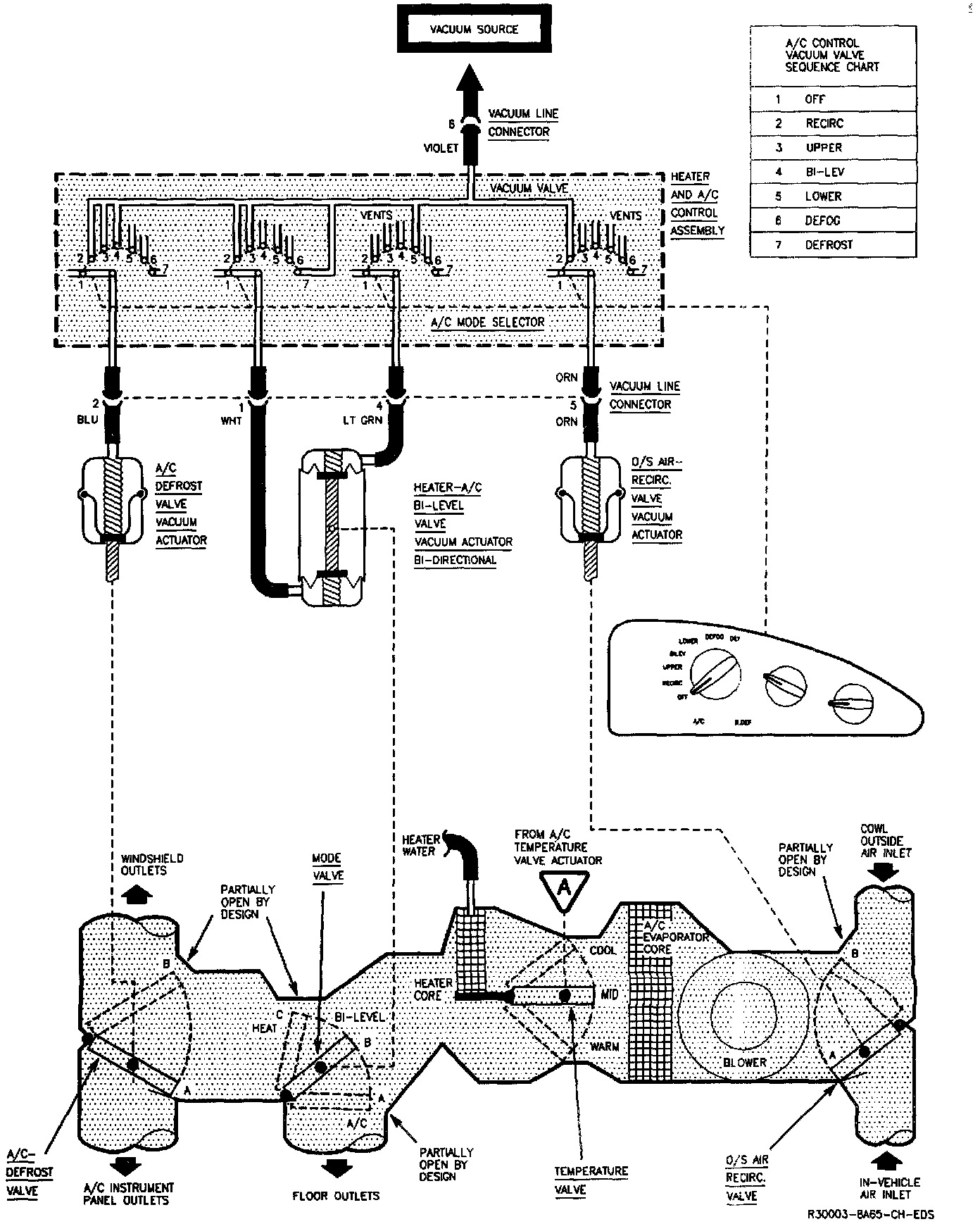

Manual Air Conditioning

Air Conditioning: Air Delivery And Temperature Controls: Manual Air Conditioning (C61):
