Interior Lamps Dimming

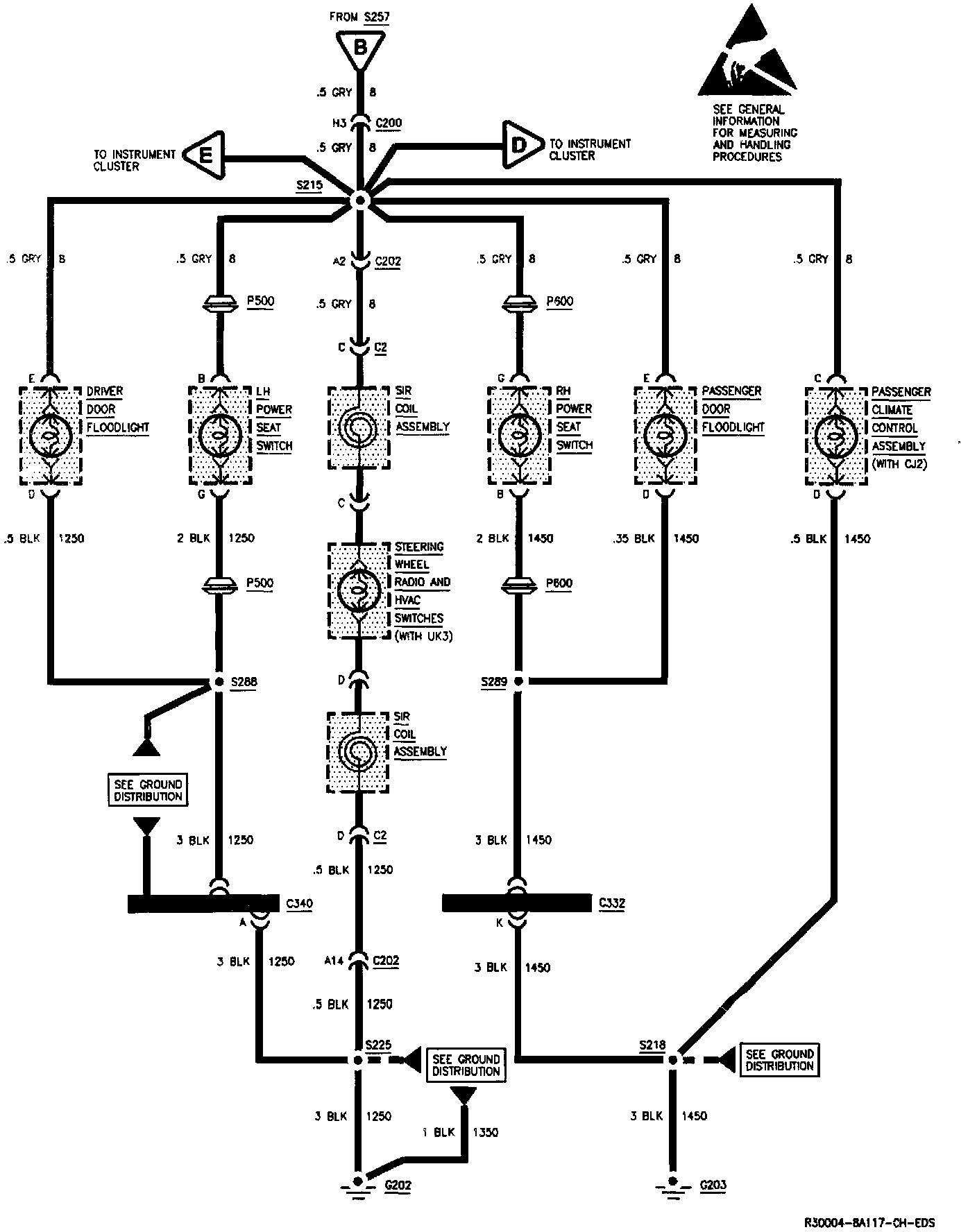

Interior Lamps Dimming:




Part 1 of 4

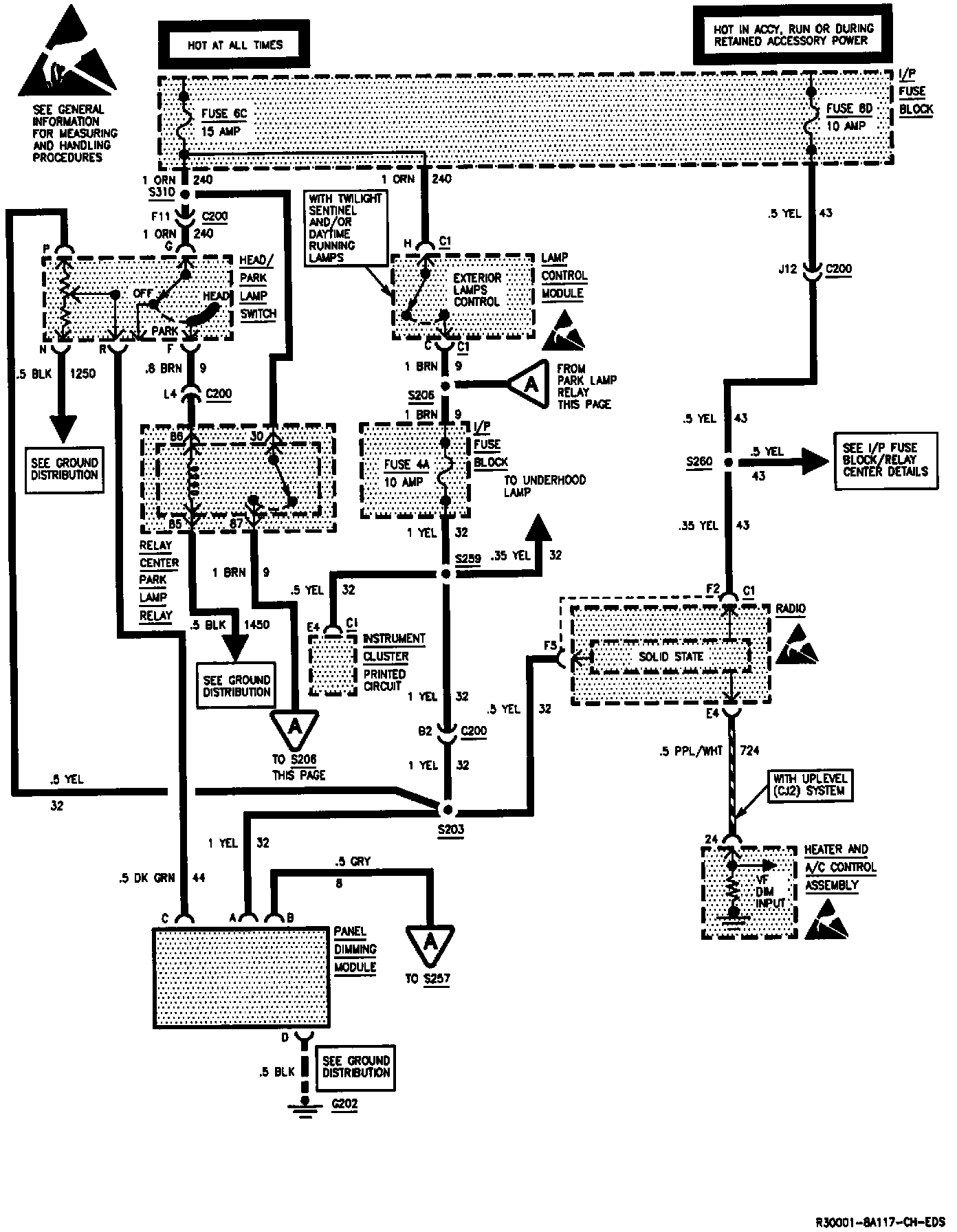

Interior Lamps Dimming:




Part 2 of 4

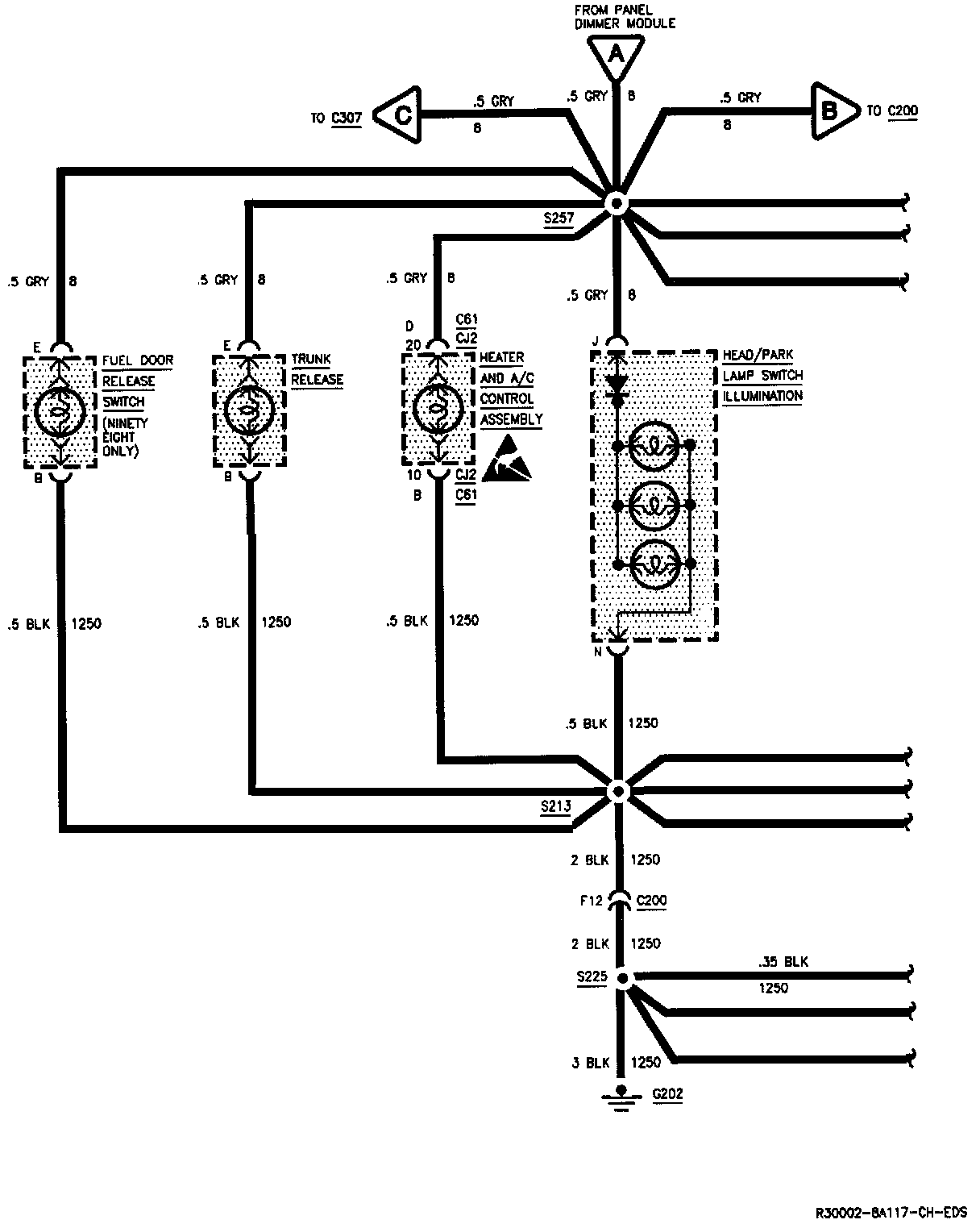

Interior Lamps Dimming:




Part 3 of 4

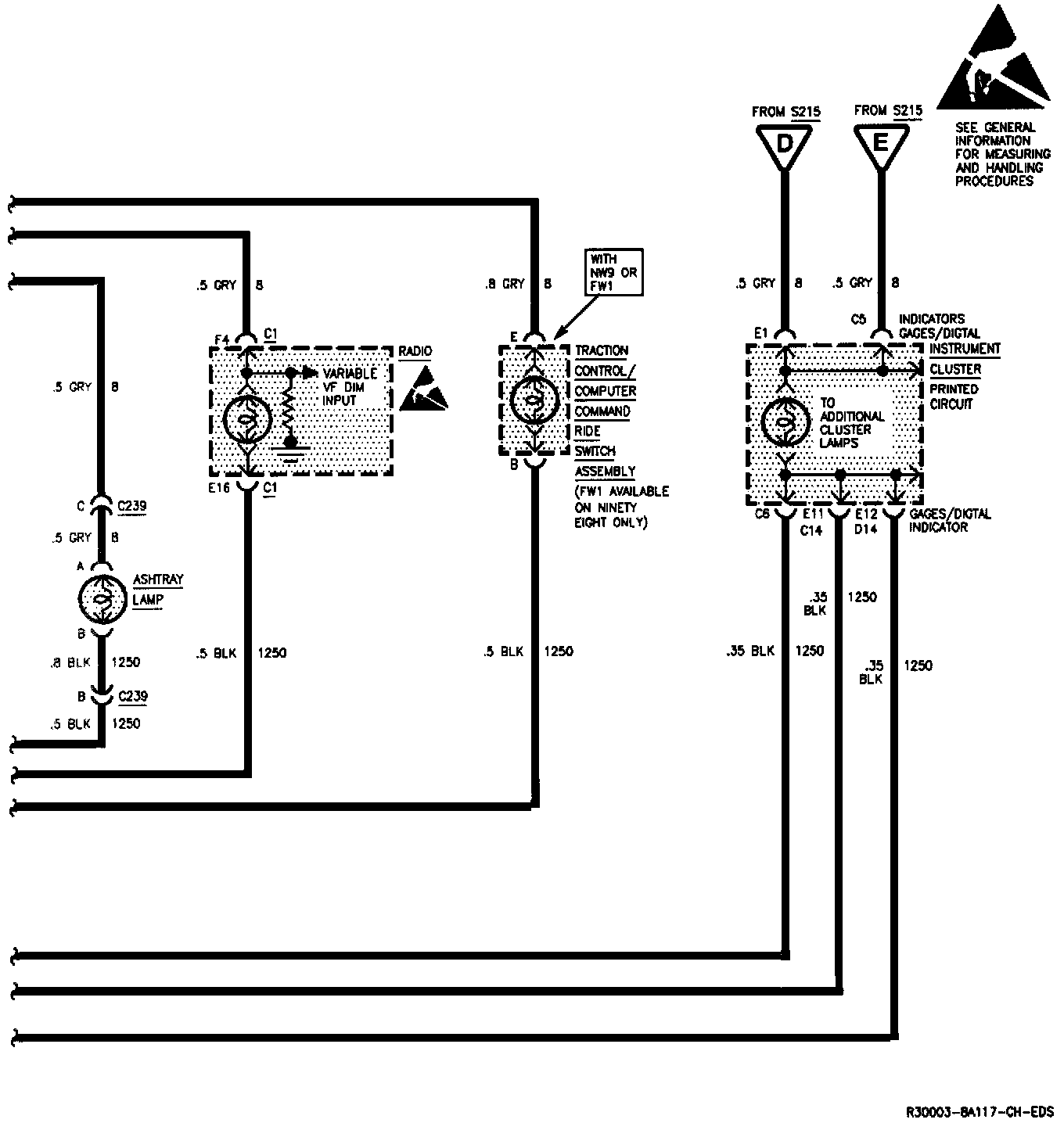

Interior Lamps Dimming:




Part 4 of 4
