Fuel Control & Idle Air Control (IAC)
Fuel Control & Idle Air Control (IAC)

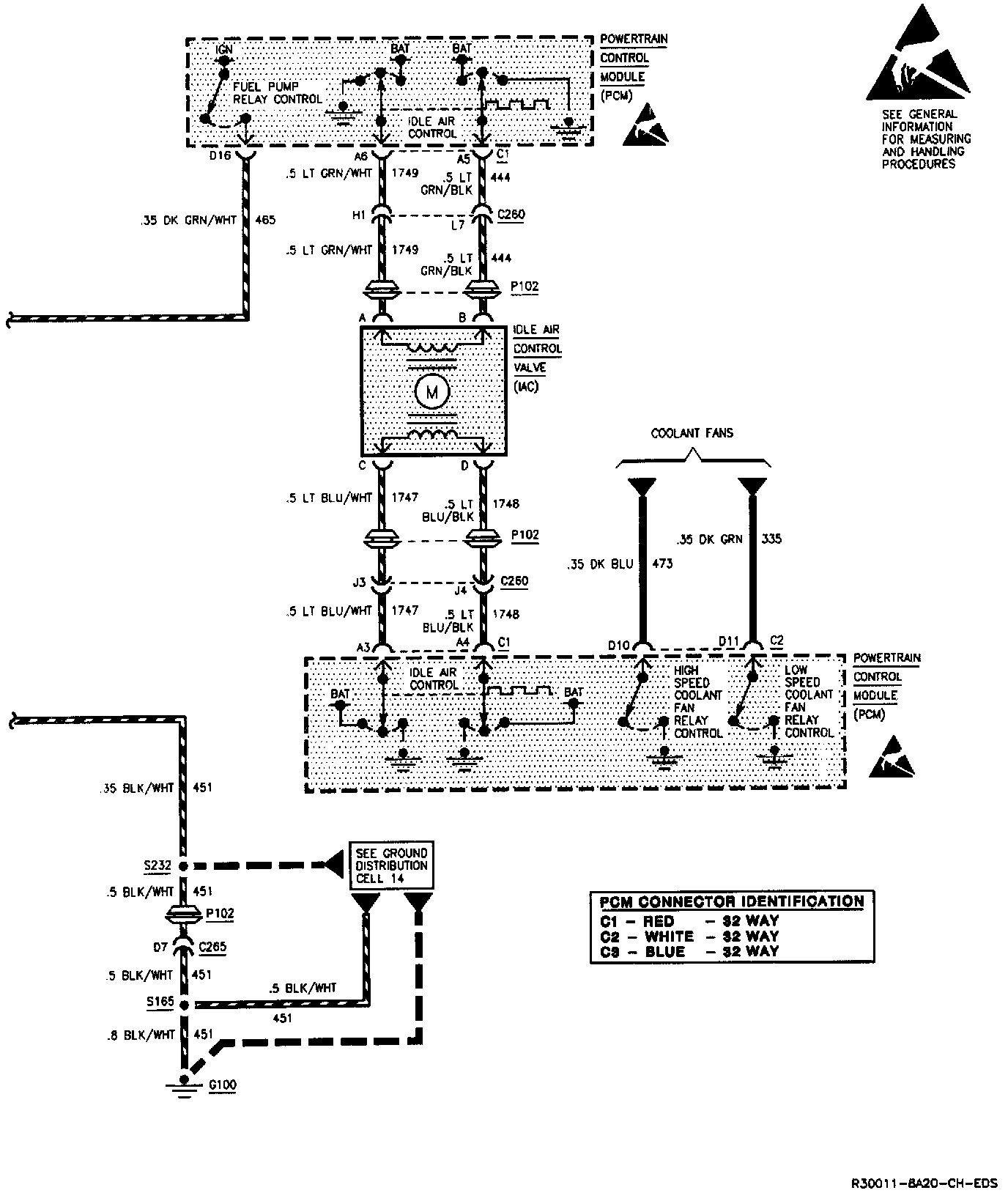

Fuel Control And Idle Air Control (Part 1 Of 2):
Fuel Control And Idle Air Control (Part 2 Of 2):
