Cutlass Ciera Cruiser L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
With Reclining Split Bench
With Reclining Split Bench

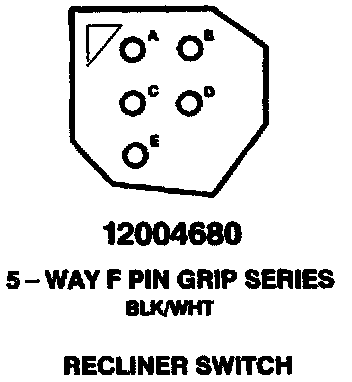

5-way F Pin Grip Series BLK/WHT (Recliner Switch):
8-way F Pin Grip Series GRY (Power Seat Switch):
